DS200DCFBG1BKC GE 该板为机柜风扇以及系统的控制级电源供电

DS200DCFBG1BKC GE 该板为机柜风扇以及系统的控制级电源供电

产品说明

通用电气DS200DCFBG1BKC是Mark V系列电源板。当安装在驱动器中时，该板为机柜风扇以及系统的控制级电源供电。在GE的驱动系统中，该板与兼容DC2000、AC2000、FC2000、CB2000和ME2000系列驱动器。电路板的标称额定源输入可以安全地测量38伏和115伏交流电压。该卡产生的输出频率可以在任何地方测量0和500千赫取决于输入的电压。

五个独立电路可在DS200DCFBG1BKC上找到。这些包括控制电平电源电路、驱动器电路、电机磁场电源电路以及交流和DC监控电路。变频器上保险丝的诊断信息通过呈现给用户两个LED指示灯和一个霓虹灯指示器。三个保护保险丝集成在电路板上，保护电流不受干扰。当使用其中一个时，检查电路板上的电压电平很简单五个测试点在卡片上找到的。为用户提供了许多可配置的设置，以适应特定的工作需求。十二个跳线和七个DIP开关可根据用户要求进行配置。

DS200DCFBG1BKC GE 该板为机柜风扇以及系统的控制级电源供电

Product description

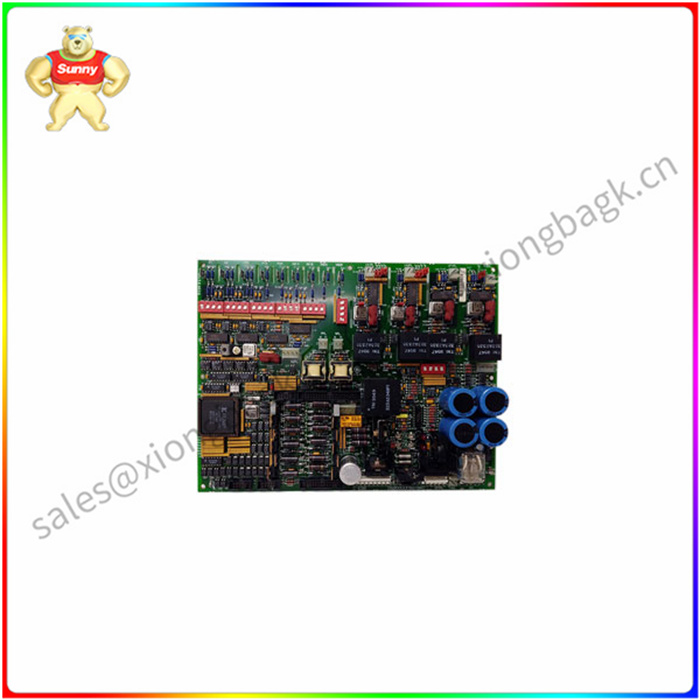

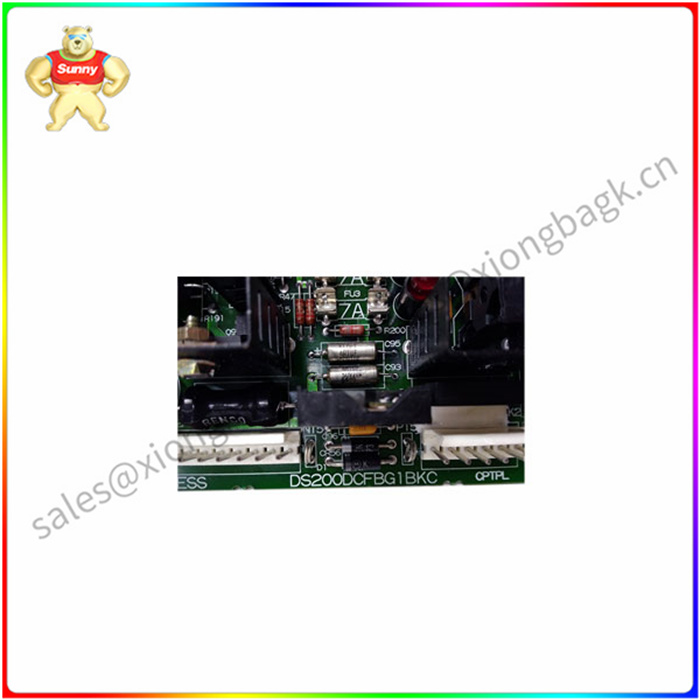

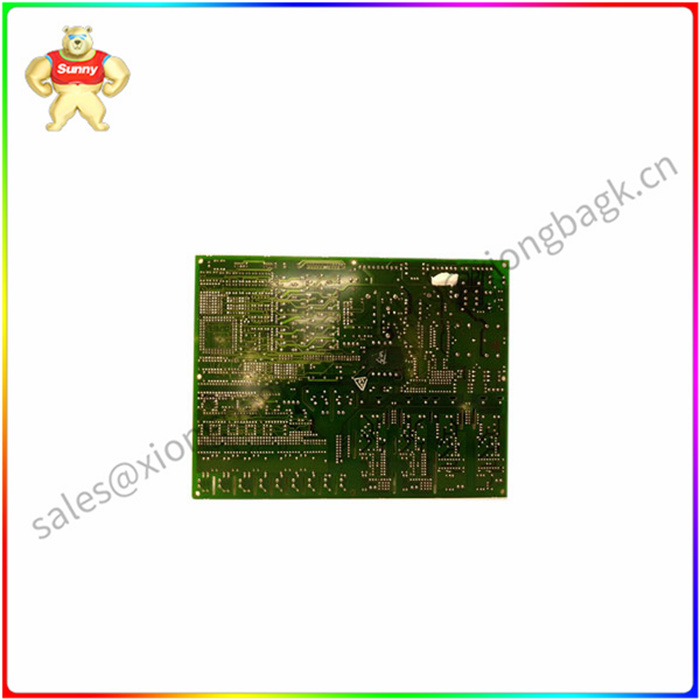

The GE DS200DCFBG1BKC is a Mark V series power supply board. When mounted in a drive, the board powers the cabinet fan as well as the system's control level power supply. In GE's drive system, the board is compatible with DC2000, AC2000, FC2000, CB2000 and ME2000 series drives. The board's nominal rated source input can safely measure 38 volts and 115 volts AC. The output frequency produced by the card can be measured anywhere from 0 to 500 KHZ depending on the input voltage.

Five individual circuits can be found on DS200DCFBG1BKC. These include control level power supply circuits, driver circuits, motor field power supply circuits, and AC and DC monitoring circuits. The diagnostic information of the fuses on the inverter is presented to the user by two LED indicators and a neon indicator. Three protective fuses are integrated into the circuit board to protect the current from interference. When using one of the five test points found on the card, it is simple to check the voltage level on the board. Users are provided with a number of configurable Settings to suit specific work needs. Twelve jumpers and seven DIP switches can be configured according to user requirements.

DS200DCFBG1BKC GE 该板为机柜风扇以及系统的控制级电源供电
