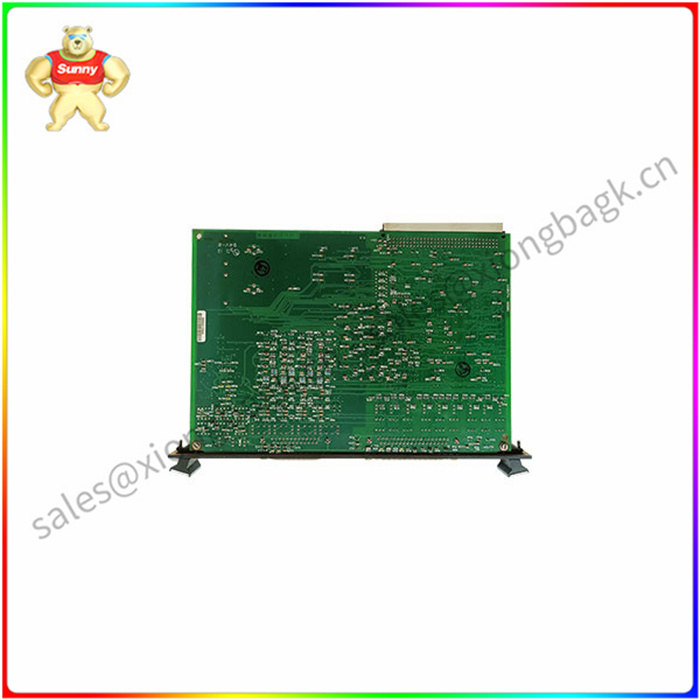

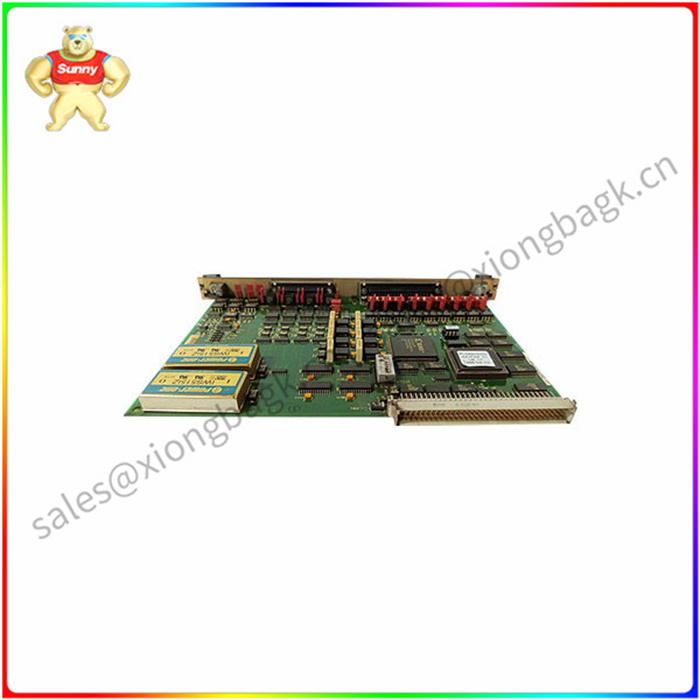

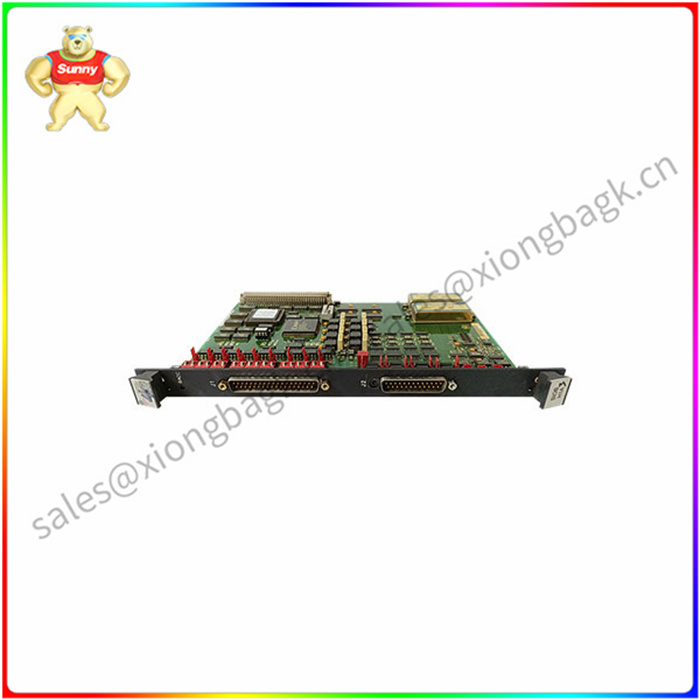

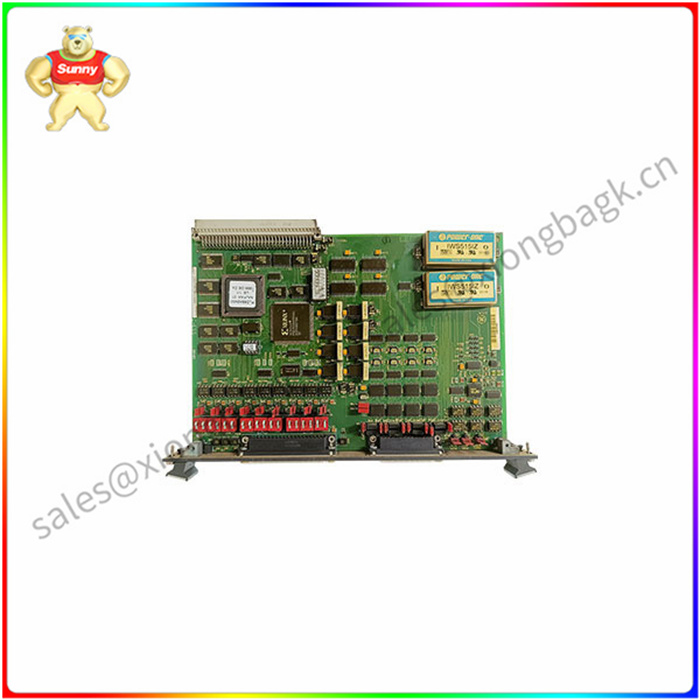

GE I/O 控制板DS200SIOBH1ABA具有 3 个跳线和 6 个开关块，每个块中有 18 个开关，总共 40 个开关。它还配有一个 LED 和一个 200 针连接器。

GE I/O 控制板上的跳线DS1SIOBH<>ABA原始板上的跳线带有为出厂默认设置设置的跳线。在安装电路板之前，您可以查看印刷材料中的信息，以了解跳线的备用设置以及它们如何更改电路板的操作。某些跳线只有一个支撑位置，因此无法更改。

当您发现必须更换电路板时，zui佳做法是设置新板中的跳线以匹配旧板上的跳线位置。这样，电路板将起到相同的作用并支持驱动器性能。首先，卸下将旧主板固定在主板机架中的螺钉卸下旧主板，然后用两只手从驱动器中卸下主板。小心防止主板碰到驱动器中的其他组件。在附近找到一个干净干燥的表面，并压平一个防静电保护袋。将旧板放在袋子上。打开装有更换板的密封保护袋，然后滑出板。用两只手携带它并将其放在旧板旁边。设置开关以匹配旧板上的开关位置。

DS200SIOBH1ABA GE 具有 3 个跳线和 6 个开关块

The GE I/O control board DS200SIOBH1ABA has 3 jumpers and 6 switch blocks with 18 switches in each block for a total of 40 switches. It also comes with an LED and a 200-pin connector.

Jumpers on GE I/O control boards DS1SIOBH<>ABA Jumpers on original boards come with jumpers set for factory default Settings. Before installing the board, you can look at the information in the printed material to understand the alternate Settings of the jumpers and how they change the operation of the board. Some jumpers have only one support position and therefore cannot be changed.

When you find that you must replace the board, the best practice is to set the jumper in the new board to match the jumper position on the old board. This way, the board will perform the same function and support driver performance. First, remove the screws that hold the old motherboard in the motherboard rack to remove the old motherboard, and then remove the motherboard from the drive with two hands. Take care to prevent the motherboard from touching other components in the drive. Find a clean, dry surface nearby and flatten an anti-static protective bag. Place the old board on the bag. Open the sealed protective bag containing the replacement plate and slide out of the plate. Carry it in two hands and place it next to the old board. Set the switch to match the switch position on the old board.
