该IS200VCRCH1B是GE Mark VI板组件。 MKVI 是 Speedtronic 燃气轮机和蒸汽轮机管理系统系列的一部分，自 1960 年代 Mark I 发布以来，通用电气一直在开发和改进该系统。MKVI 是 Speedtronic 系列中的第五个管理系统，具有对所有保护参数和关键控制的三重冗余控制，以及用于保护和监控涡轮系统的先进控制机制。

该IS200VCRCH1B用作分立式输入/输出板。这是一款单插槽板，具有与VCCC板相同的功能，但不包括子板，因此占用的机架空间更少。但是，由于此板的继电器输出使用 VME 机架上的 J3/J4 端口，因此电缆必须放置在前面板上。如果不希望这样做，请使用 VCCC 板而不是 VCRC PCB。

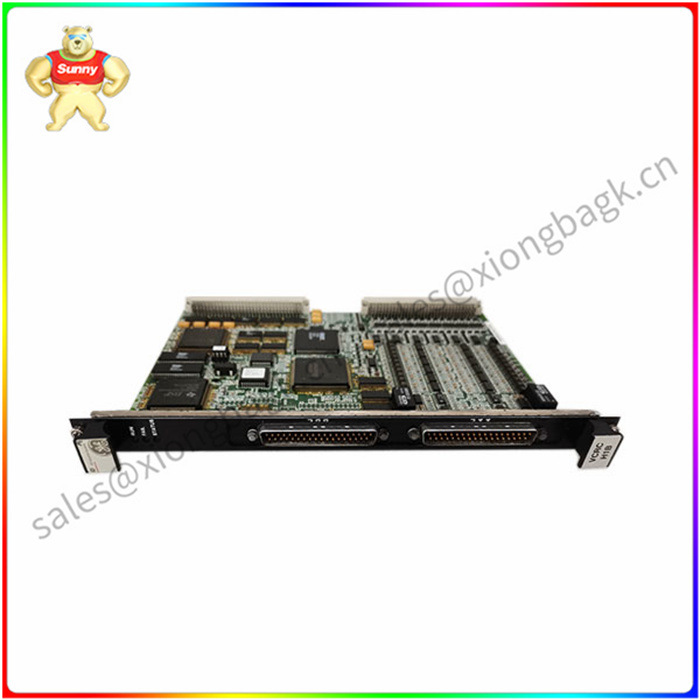

IS200VCRCH1B有一个带有两个电缆连接器（J33 和 J44）的前面板。面板还包含三个 LED 组件，它们位于电路板的顶角附近。这些 LED 为绿色、红色和橙色，并标记为“运行”、“失败”和“状态”。

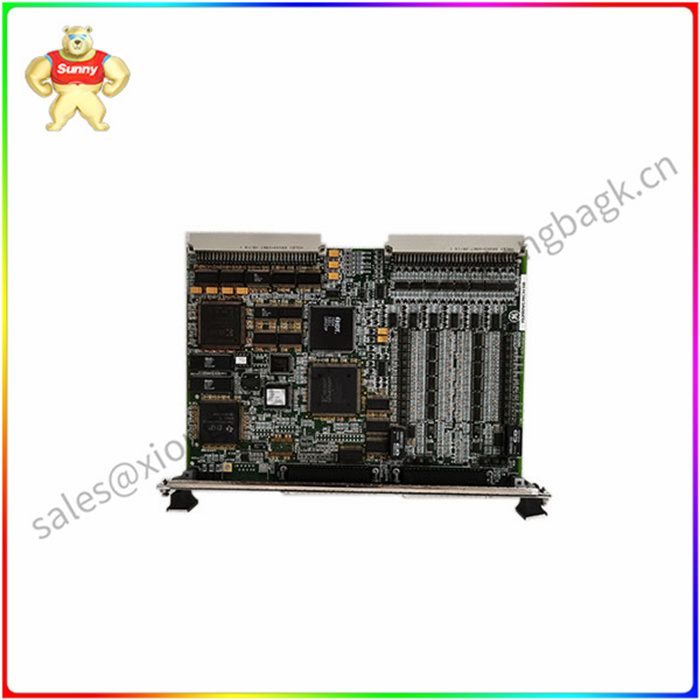

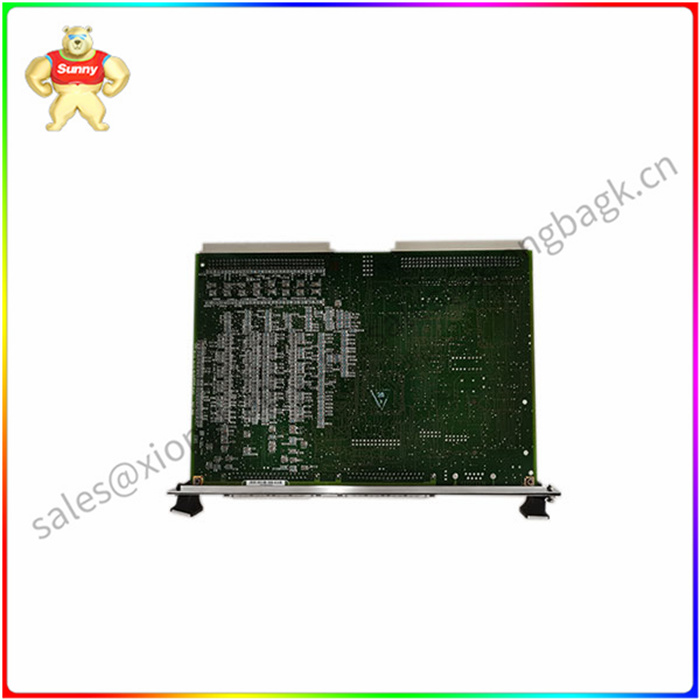

IS200VCRCH1B表面装有两个背板连接器。 电路板表面（P4 至 P6）上有几个导电连接器。该板还包括电阻器、二极管、电容器和TP测试点。该板有 200 多个晶体管和两个电源。位于电路板表面的集成电路包括FPGA以及各种SRAM和RAM芯片。有关IS1VCRCH<>B的更多信息，请参阅数据表、手册或 Mark VI 控制系统指南。

IS200VCRCH1B GE 这是一款单插槽板

The IS200VCRCH1B is a GE Mark VI board component. The MKVI is part of the Speedtronic family of gas turbine and steam turbine management systems that GE has been developing and improving since the release of the Mark I in the 1960s. The MKVI is the fifth management system in the Speedtronic family, featuring triple redundant control over all protection parameters and critical controls, as well as advanced control mechanisms for protecting and monitoring turbine systems.

The IS200VCRCH1B is used as a separate input/output board. It is a single-slot board that has the same features as the VCCC board, but does not include a subboard, so it takes up less rack space. However, since the relay output of this board uses the J3/J4 port on the VME rack, the cable must be placed on the front panel. If you do not wish to do so, use a VCCC board instead of a VCRC PCB.

The IS200VCRCH1B has a front panel with two cable connectors (J33 and J44). The panel also contains three LED components, which are located near the top corner of the board. These leds are green, red, and orange, and are labeled "Run," "Fail," and "Status."

The IS200VCRCH1B has two backplane connectors on the surface. There are several conductive connectors on the board surface (P4 to P6). The board also includes resistors, diodes, capacitors and TP test points. The board has more than 200 transistors and two power supplies. Integrated circuits located on the board surface include FPgas as well as various SRAM and RAM chips. For more information about IS1VCRCH<>B, see the data sheet, manual, or Mark VI Control System Guide.
