IS215UCVGH1A GE 数字量模拟量 控制器

IS215UCVGH1A GE  数字量模拟量 控制器

MKVI 有五个版本的 UCV 控制器。IS215UCVGH1A 是控制器的单槽版本。任何以前的控制器都可以直接用 IS215UCVGH1A 代替。 如果该板更换了早期版本的控制器，则无需升级背板。IS215UCVGH1A 安装在 VME 机架中。

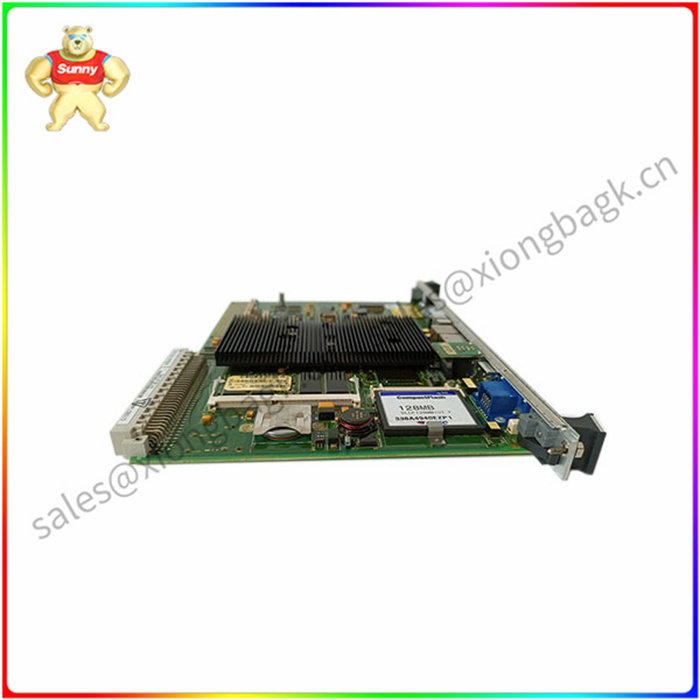

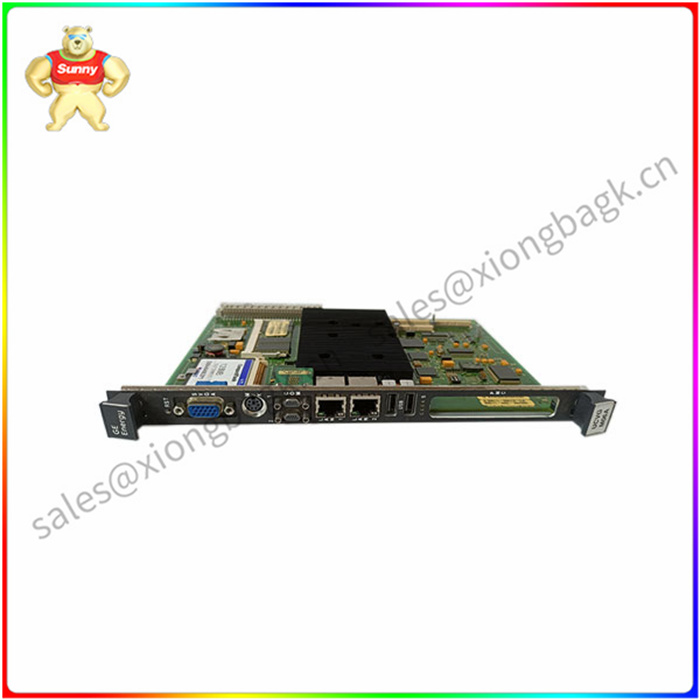

IS215UCVGH1A 采用英特尔的超低电压赛扬 650 处理器芯片构建。该芯片具有 128MB 的 SDRAM 和 128MB 的闪存。该板有一个前面板。面板有一个复位开关，后面是一个 SVGA 监视器端口。

有一个键盘/鼠标端口和两个 COM 端口（并排，标记为 1 和 2。）该板有两个堆叠在一起的以太网端口。它们被标记为 LAN1 和 LAN2。有两个单独的 USB 连接器、四个 LED 指示灯和一个面板开口。

IS215UCVGH1A GE  数字量模拟量 控制器

The MKVI has five versions of the UCV controller. The IS215UCVGH1A is a single-slot version of the controller. Any previous controller can be directly replaced with the IS215UCVGH1A. If the board replaces an earlier version of the controller, there is no need to upgrade the backplane. IS215UCVGH1A is installed in the VME rack.

The IS215UCVGH1A is built with Intel's ultra-low voltage Celeron 650 processor chip. The chip has 128MB of SDRAM and 128MB of flash memory. The board has a front panel. The panel has a reset switch, followed by an SVGA monitor port.

There is a keyboard/mouse port and two COM ports (side by side, labeled 1 and 2.) The board has two Ethernet ports stacked on top of each other. They are labeled LAN1 and LAN2. There are two separate USB connectors, four LED indicators, and a panel opening.
IS215UCVGH1A GE  数字量模拟量 控制器
