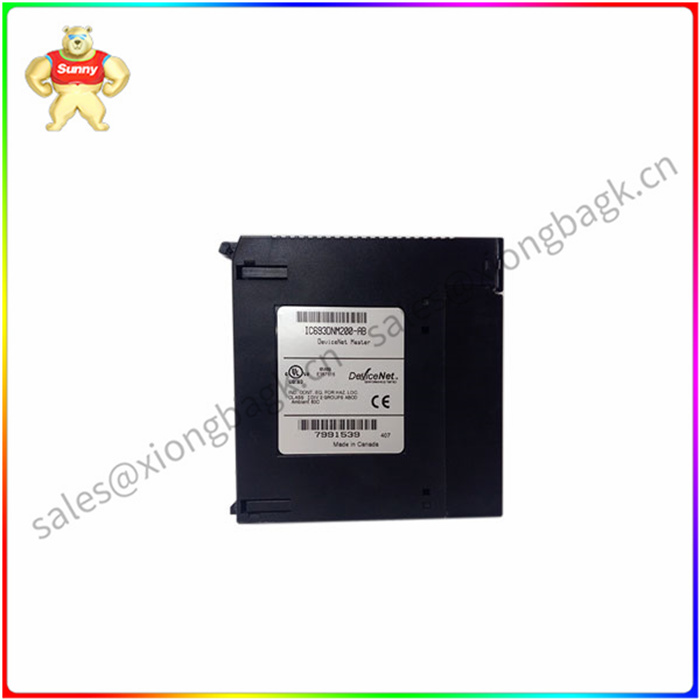

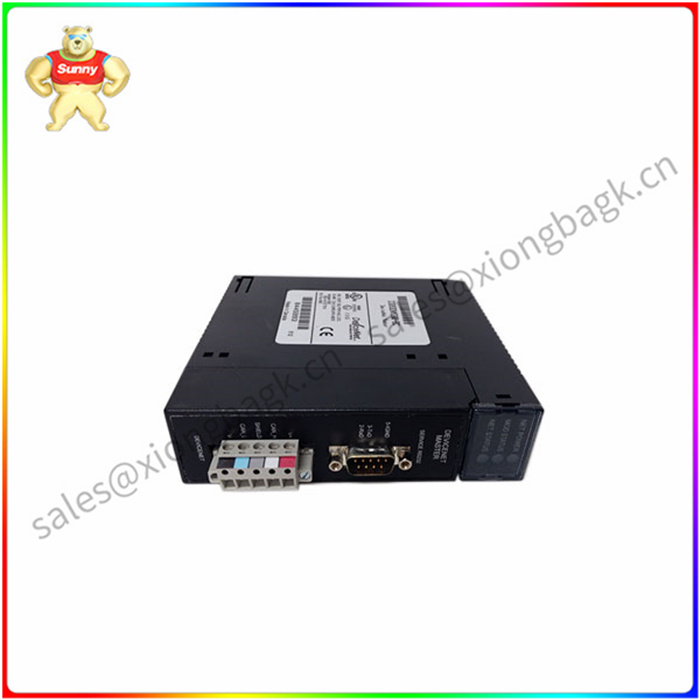

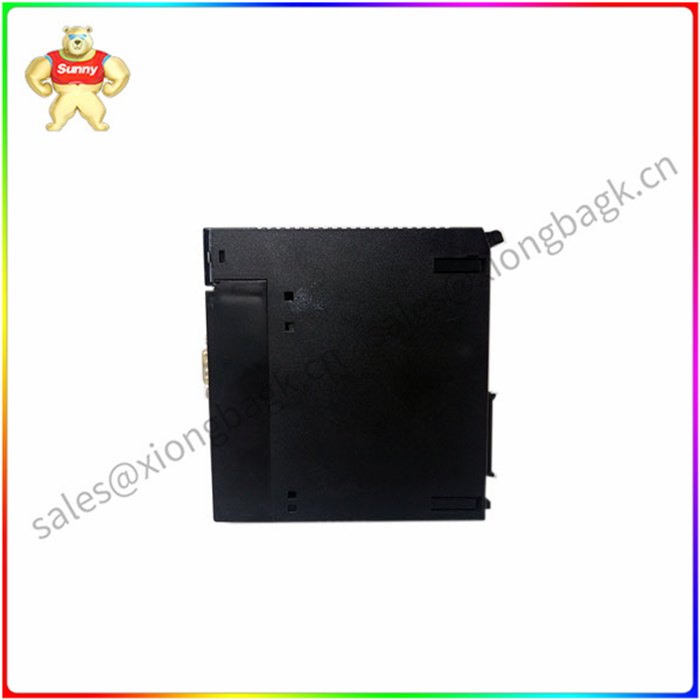

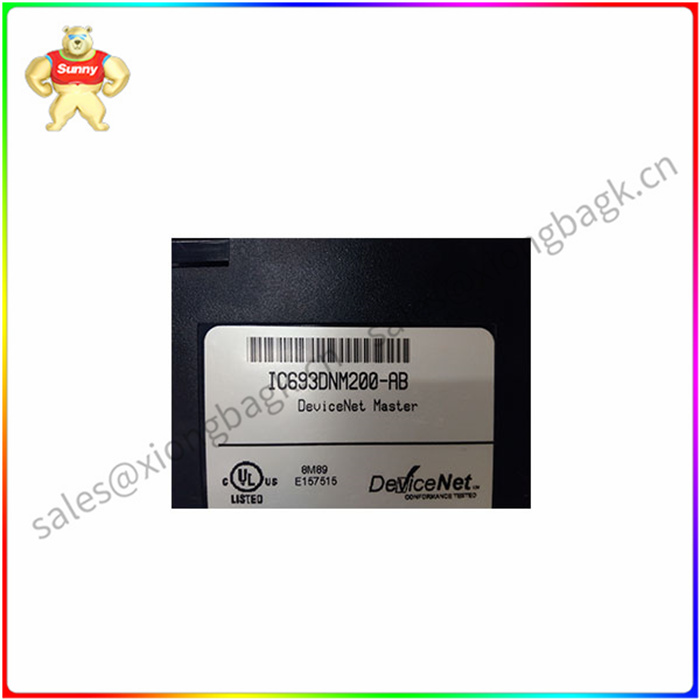

这IC693DNM200模块是阿格Fanuc设备网90-30系列的主控模块。它的额定电压为12-24VDC正逻辑，通态压降为0.3 V DC。开关响应时间zui长为0.5毫秒。

而且,主模块有32个输出点，每组4个，每组8个点。它的浪涌电流为5.4安培，持续10毫秒，输出电流为每点0.5安培，每组电流为4安培，每组公共引脚zui大电流为3安培。它与网络上多达63个其他设备交换I/O消息和自定义显式消息。在包含更高 级主机的DeviceNet网络上，该模块的内置服务器功能可用于自动数据传输和与主机的自定义显式信息传递。

为了确保90-30系列PLC提供全面的应用解决方案，GE Fanuc与外设、模块和软件包的第三方制造商密切合作，提供复杂的自动化解决方案。应用工具可用于冗余、事件记录顺序、注射成型、化学输送等等。

IC693DNM200 GE 双模式运行 单槽通信模块

The IC693DNM200 module is the main control module of the 90-30 series of AGFANUC equipment network. It has a rated voltage of 12-24VDC positive logic and a on-state voltage drop of 0.3V DC. The maximum switching response time is 0.5 ms.

Moreover, the main module has 32 output points, each set of 4 points, each set of 8 points. It has a surge current of 5.4 amps for 10 milliseconds, an output current of 0.5 amps per point, 4 amps per set of currents, and a maximum current of 3 amps per set of common pins. It exchanges I/O messages and custom explicit messages with up to 63 other devices on the network. On DeviceNet networks containing more advanced hosts, the module's built-in server capabilities can be used for automatic data transfer and custom explicit messaging with hosts.

To ensure that the 90-30 series PLCS offer a comprehensive application solution, GE Fanuc works closely with third-party manufacturers of peripherals, modules and packages to provide complex automation solutions. Application tools can be used for redundancy, event recording sequence, injection molding, chemical delivery, and more.
