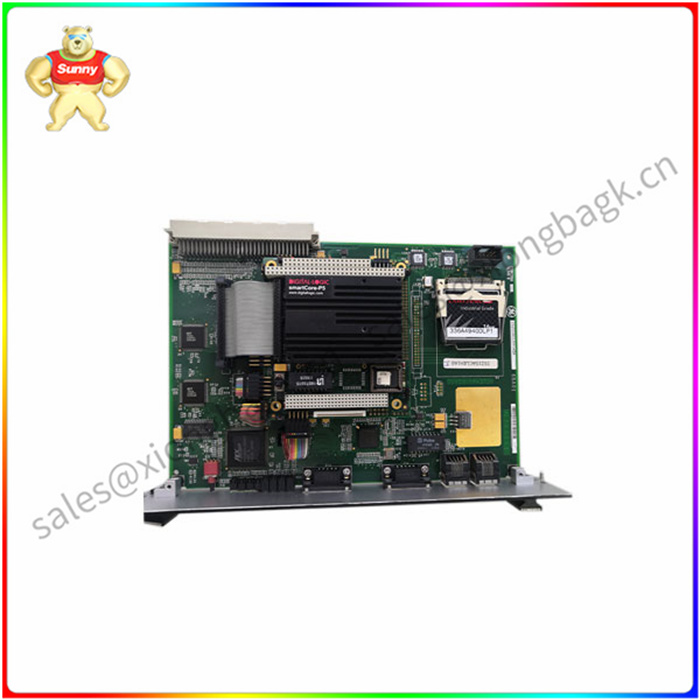

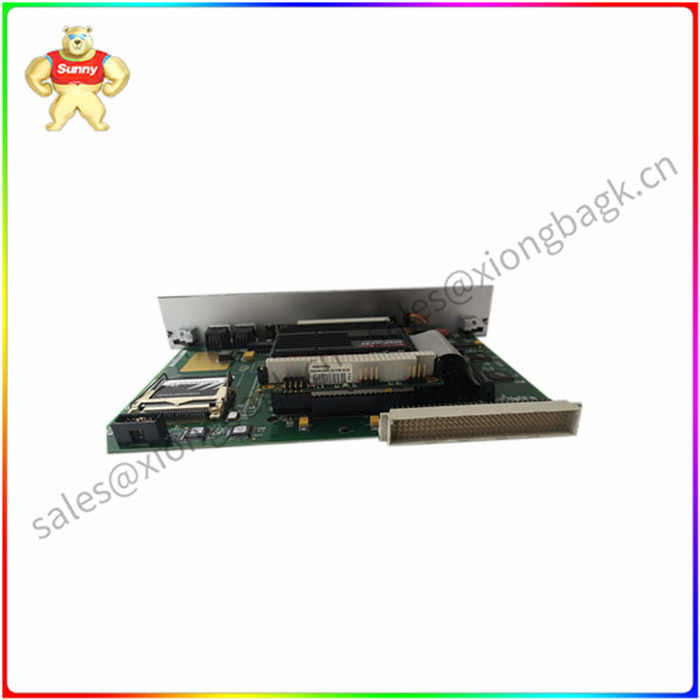

IS215ACLEH1A的主要功能是用作基于微处理器的控制器。 该型号是通用电气工业系统公司生产的 EX2100 系列中一系列应用控制层模块的一部分。该板是ACLE模块中的第 一个，该板配备了PCI（外围组件互连）控制器和两个以太网端口。

安装IS215ACLEH1A型号时，它将安装在创新系列驱动器或 EX2100 控制机架中。该板有几个 LED，它们是 Active、OK、ENET、Status 和 Flash 指示灯，每个指示灯都有不同的功能，例如ample，当 CPU（中央处理器）访问内存组件时，Active LED 将完全常亮。IS215ACLEH1A模型的软件功能之一是基本输入/输出系统（BIOS），它将初始化和识别其他硬件形式。BIOS 功能支持操作系统的串行加载。

虽然 IS215ACLEH1A 模型目前大部分已经过时，但仍然可以找到。与IS215ACLEH1A型号一起使用的zui佳手册是 GEI-100434 应用控制层模块 （ACL） 手册。

IS215ACLEH1A GE 用作基于微处理器的控制器

The main function of the IS215ACLEH1A is as a microprocessor-based controller. This model is part of a series of application control layer modules in the EX2100 series produced by GE Industrial Systems. The board is the first in the ACLE module, which is equipped with a PCI (Peripheral Component Interconnection) controller and two Ethernet ports.

When installing the IS215ACLEH1A model, it will be installed in the Innovation Series drive or EX2100 control rack. The board has several leds, which are Active, OK, ENET, Status and Flash indicators, each with a different function, such as ample, where the Active LED will be fully on when the CPU (central processing unit) accesses the memory component. One of the software features of the IS215ACLEH1A model is the basic input/Output System (BIOS), which will initialize and recognize other hardware forms. The BIOS function supports serial loading of the operating system.

Although the IS215ACLEH1A model is currently largely obsolete, it can still be found. The best manual for use with the IS215ACLEH1A model is the GEI-100434 Application Control Layer Module (ACL) Manual.
