这些端子板扩展了PDIO包的功能，因为以前的PDIO包只能与两个附件端子板一起工作。端子板标记为本质安全装置继电器触点端子板。

该装置包含两个以太网端口、一个本地处理器和一个数据采集板，用于GE Mark VI Speedtronic系列。2004年推出的Mark VIe I/O包的电子技术已经过时。IS220PDIOH1B的前面板包括用于设备电源的以太网端口和“attn”LED的LED指示灯。其他指示灯与继电器连接有关。

IS220PDIOH1B的zui小额定电压为27.4 VDC，而标称额定电压为28.0 VDC。该装置及其相关接线板具有必须遵守的特定现场接线连接说明，包括电线尺寸和螺钉扭矩。

当使用IS220PDIOH1B上的TDBS或TDBT板时，有24个现场终端。

IS220PDIOH1B GE 数据采集板的工业控制设备

These terminal boards extend the functionality of the PDIO package, as the previous PDIO package could only work with two attachment terminal boards. The terminal plate is marked as the relay contact terminal plate of the intrinsic safety device.

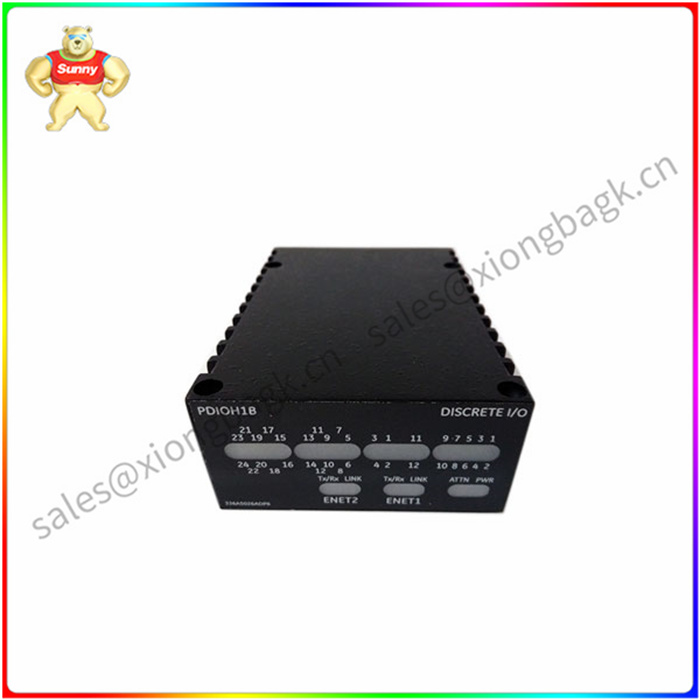

The unit contains two Ethernet ports, a local processor and a data acquisition board for the GE Mark VI Speedtronic series. The electronics of the Mark VIe I/O bag, introduced in 2004, are outdated. The front panel of the IS220PDIOH1B includes an Ethernet port for device power and an LED indicator for the "attn" LED. Other indicators are related to relay connections.

The minimum rated voltage of the IS220PDIOH1B is 27.4 VDC, while the nominal rated voltage is 28.0 VDC. The device and its associated patch panels have field-specific wiring connection instructions that must be followed, including wire size and screw torque.

When using TDBS or TDBT board on IS220PDIOH1B, there are 24 field terminals.
