IS220PSVOH1B  GE 应用于模拟量输出模块

IS220PSVOH1B  GE 应用于模拟量输出模块

IS220PSVOH1B为TRPG(初级燃气轮机跳闸保护板)上的火焰探测器电路提供电源。它通过该板的J3到J5连接器来实现这一点。IS220PSVOH1B通常使用安装螺柱、安装支架和安装板安装在TRPG板上方的金属板表面上。

IS220PSVOH1B的zui大输入电压为29.4 V dc。其在满载时(28v dc)启动时间为34ms，满载时功耗为4.1 W。在空载、29.4 V直流输入时，单板的zui大输出电压为355v dc。该包没有硬件设置或跳线开关。输出电压可以通过一对差分TP测试点在本地监测。

如果需要更多关于此包的信息，用户应参阅通用电气出版的手册、数据表或用户指南。该部件和所有其他Mark VI部件的技术支持zui初由制造商提供。

IS220PSVOH1B  GE 应用于模拟量输出模块

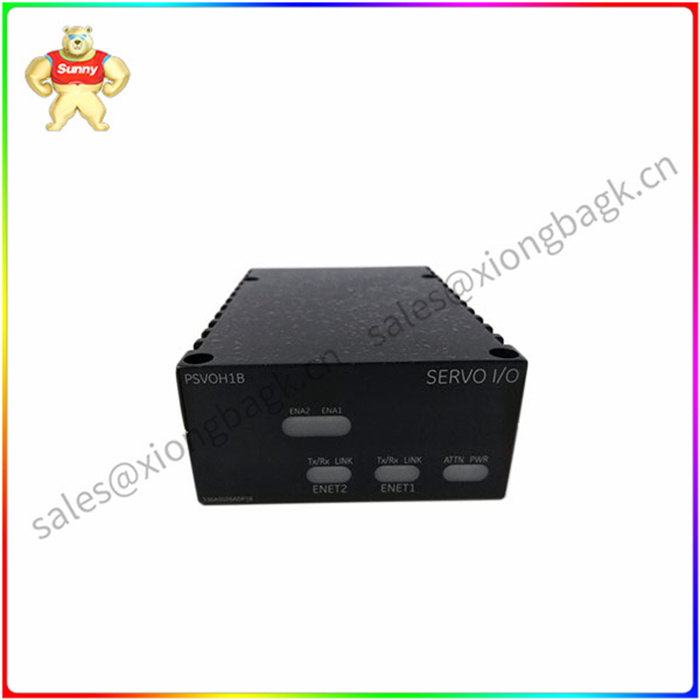

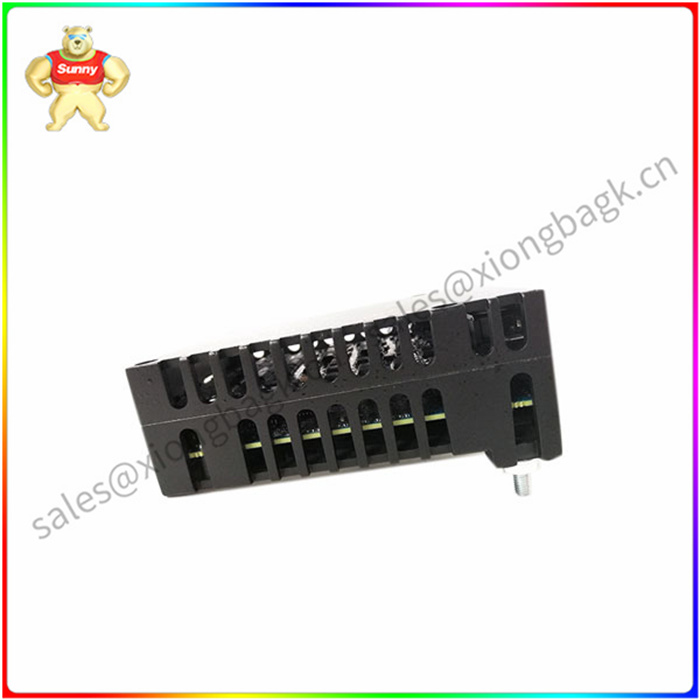

The IS220PSVOH1B provides power to the flame detector circuit on the TRPG(Primary gas turbine trip protection board). It does this through the board's J3 to J5 connectors. The IS220PSVOH1B is usually mounted on a metal plate surface above the TRPG board using mounting studs, mounting brackets, and mounting plates.

The maximum input voltage of the IS220PSVOH1B is 29.4V dc. The startup time at full load (28v dc) is 34ms, and the power consumption at full load is 4.1W. The maximum output voltage of the board is 355v dc with no load and 29.4 V DC input. The package has no hardware Settings or jumper switches. The output voltage can be monitored locally with a pair of differential TP test points.

For more information about this package, users should refer to manuals, data sheets or user guides published by GE. Technical support for this part and all other Mark VI parts is initially provided by the manufacturer.

IS220PSVOH1B  GE 应用于模拟量输出模块
