产品说明

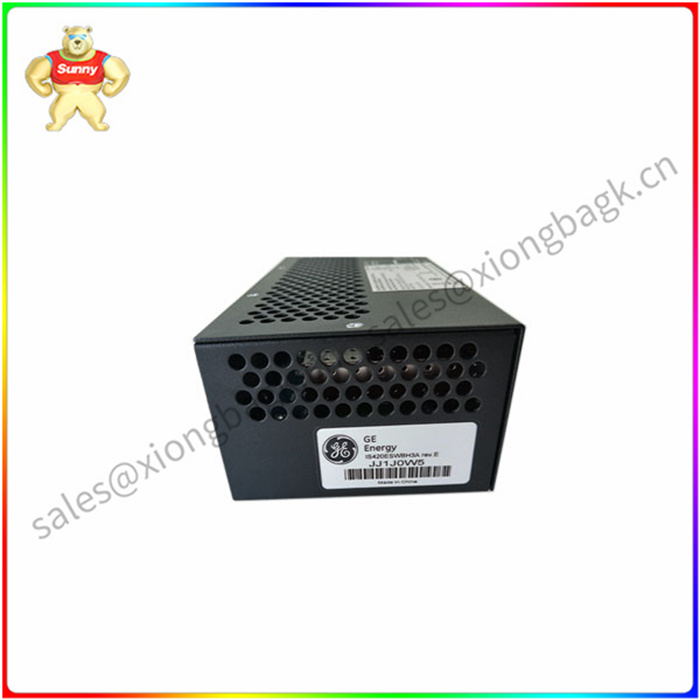

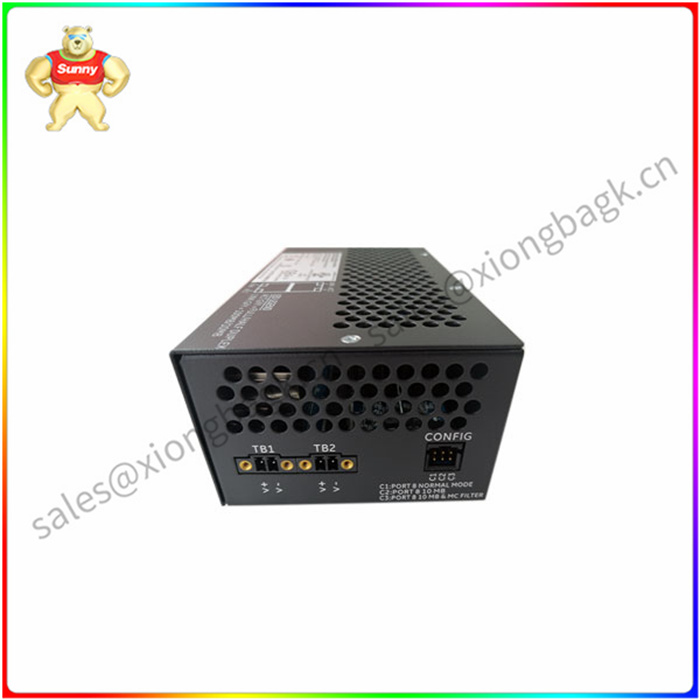

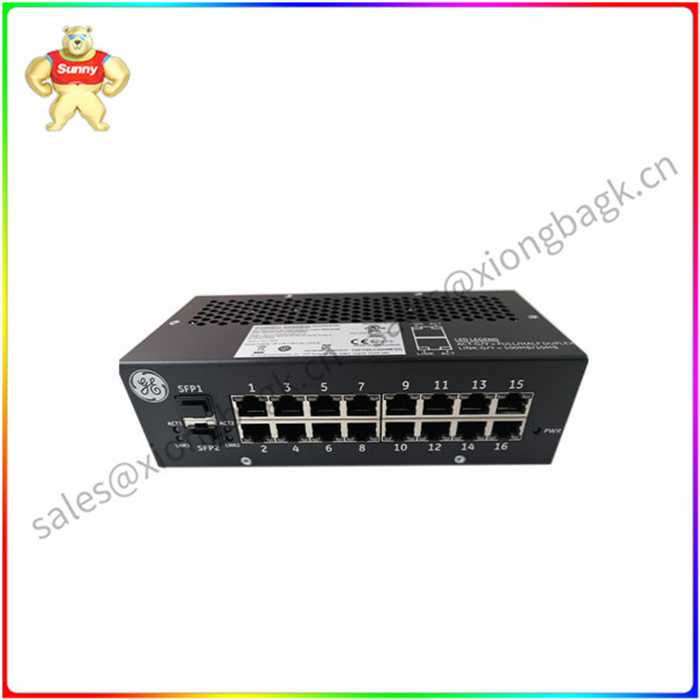

工业以太网交换机IS420ESWBH3A是通用电气公司设计的Mark VIe安全控制系统的一部分。该交换机没有任何光纤端口，但有16个铜质端口，这些铜质端口是10/100Base-TX RJ45端口。该交换机的主要功能是作为一级以太网交换机，其核心功能是缓冲组播和广播数据包。应该有足够的空间来允许每个端口缓冲一个分组；如果有多个传入流被发送到交换机，它只能接受多个流中的一个传入流，并将缓冲其余的流以供以后传输。

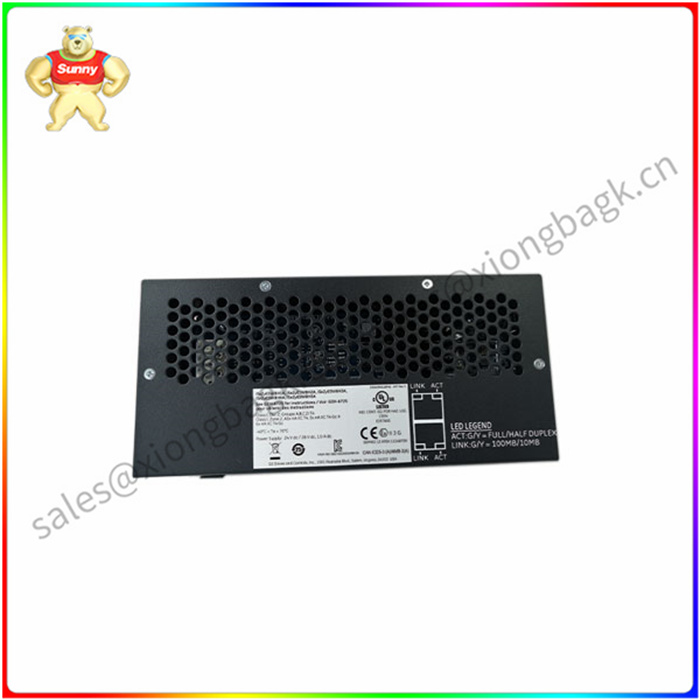

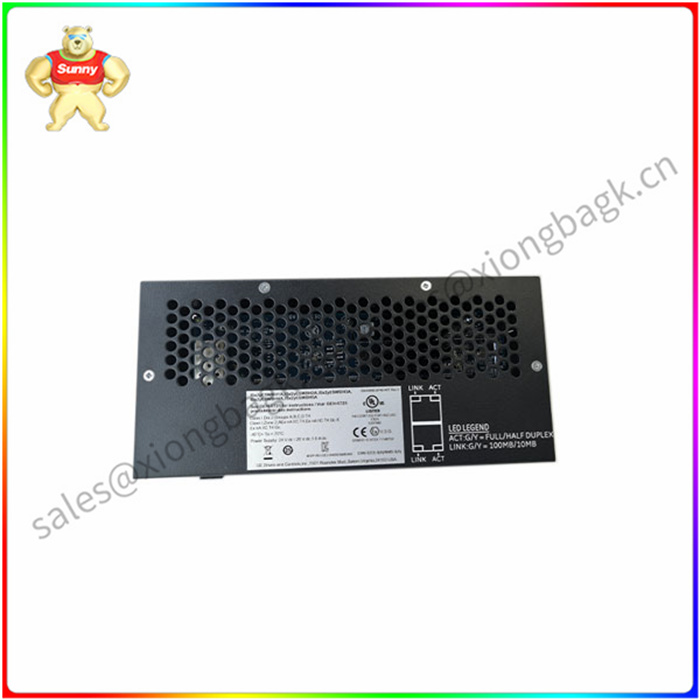

IS420ESWBH3A开关上有LED指示灯。有一个电源指示灯，其余指示灯是活动和链接功能指示灯。当链路指示灯呈稳定黄色时，表示正在使用10 MB的链路；当呈稳定绿色时，表示正在使用100 MB的链路；如果没有指示灯亮起，则表示没有链路。活动LED的颜色也是绿色和黄色，但它们会闪烁，当LED闪烁绿色时，表示活动处于全双工状态，当闪烁黄色时，表示活动处于半双工状态。

IS420ESWBH3A开关可以多种方式安装，开关可以平行或垂直安装在d in导轨上，如果需要，也可以安装在面板上。请注意，当开关安装在DIN导轨上时，需要不同的夹子，即259B2451BVP1和259B2451BVP4夹子。

IS420ESWBH3A GE 工业以太网交换机 安全控制系统
Product description

The industrial Ethernet switch IS420ESWBH3A is part of the Mark VIe security control system designed by General Electric. The switch does not have any fiber ports, but has 16 copper ports, which are 10/100Base-TX RJ45 ports. The main function of the switch is as a level 1 Ethernet switch, and its core function is to buffer multicast and broadcast packets. There should be enough space to allow each port to buffer one packet; If multiple incoming streams are sent to the switch, it can only accept one of the multiple incoming streams and will buffer the rest for later transmission.

The IS420ESWBH3A switch has an LED indicator. There is one power indicator and the other indicators are activity and link function indicators. If the link indicator is steady yellow, a 10 MB link is being used. If the value is steady green, a 100 MB link is being used. If no indicator is on, there is no link. The color of the active LED is also green and yellow, but they will flash, when the LED flashes green, it means that the activity is in full duplex, and when it flashes yellow, it means that the activity is in half duplex.

The IS420ESWBH3A switch can be installed in a variety of ways, the switch can be mounted parallel or vertically on the d in rail, or if required, on the panel. Note that when the switch is mounted on a DIN rail, different clamps are required, namely 259B2451BVP1 and 259B2451BVP4 clamps.
