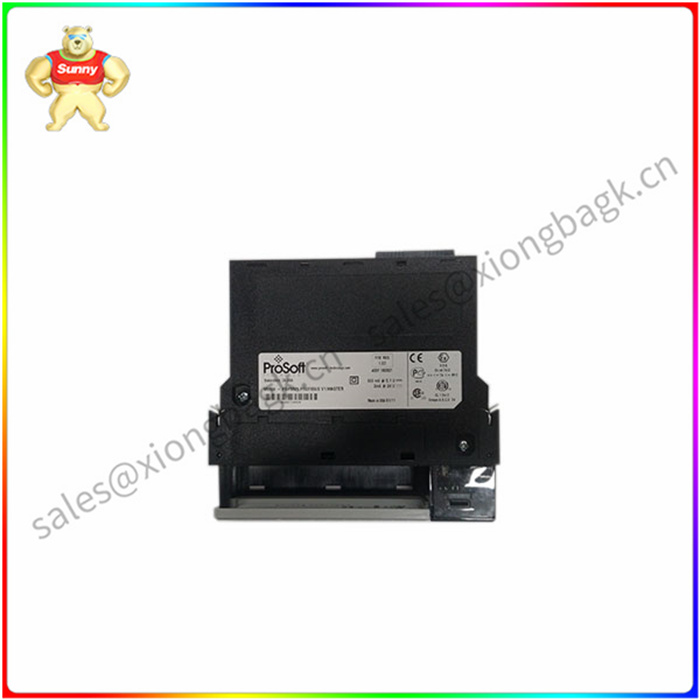

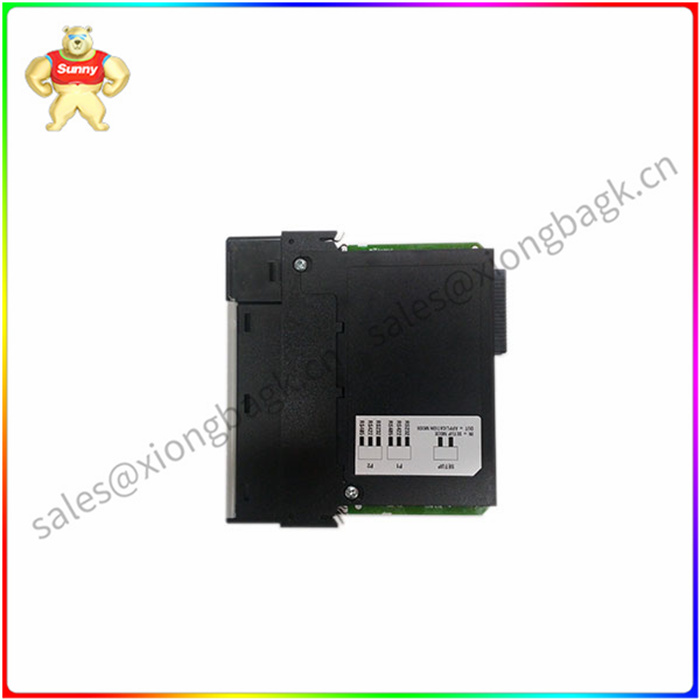

PROSOFT MVI56-PDPMV1 主网络接口模块 允许ControlLogix处理器

PROSOFT MVI56-PDPMV1 主网络接口模块 允许ControlLogix处理器

特点和优势

根据IEC 61158，该模块支持完整的主规范。非循环参数数据可通过1级或2级DPV1服务传输，允许处理器轻松与支持PROFIBUS DPV0/V1协议的从设备通信。

该模块作为PROFIBUS网络和ControlLogix处理器之间的输入/输出模块。来自处理器的数据传输与PROFIBUS网络上的I/O数据传输是异步的。数据库由用户定义并存储在模块中，用于保存协议所需的数据。

规范

单槽- 1756背板兼容
该模块被识别为输入/输出模块，并且可以访问处理器存储器，以便在处理器和模块之间进行数据传输
梯形逻辑用于模块和处理器之间的数据传输。包括样本梯形文件(附加指令)。
本地或远程机架
可配置的I/O背板尺寸为远程机架应用提供了zui佳性能
启用CIPconnect。模块支持使用罗克韦尔自动化以太网接口通过以太网路由与ProSoft Configuration Builder和FDT comDTM进行通信。

PROSOFT MVI56-PDPMV1 主网络接口模块 允许ControlLogix处理器

Characteristics and advantages

According to IEC 61158, this module supports the full master specification. Acyclic parameter data can be transmitted via a level 1 or 2 DPV1 service, allowing the processor to easily communicate with slave devices that support the PROFIBUS DPV0/V1 protocol.

This module acts as an input/output module between the PROFIBUS network and the ControlLogix processor. The data transfer from the processor is asynchronous with the I/O data transfer on the PROFIBUS network. The database is defined by the user and stored in the module to hold the data required by the protocol.

norm

Single slot - 1756 backplane compatible
The module is identified as an input/output module and has access to processor memory for data transfer between the processor and the module
Ladder logic is used for data transfer between modules and processors. Includes sample ladder file (additional instructions).
Local or remote rack
The configurable I/O backplane size provides optimal performance for remote rack applications
Enable CIPconnect. The module supports communication with ProSoft Configuration Builder and FDT comDTM via Ethernet routing using the Rockwell Automation Ethernet interface.
