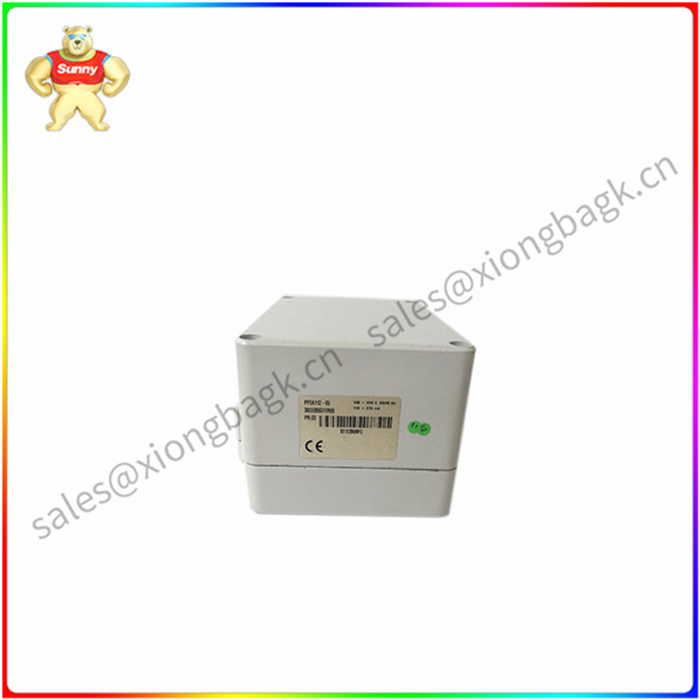

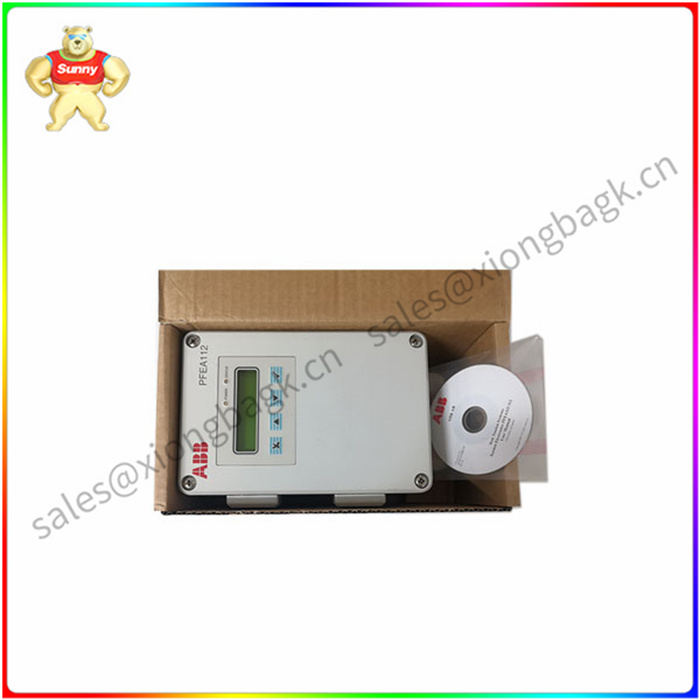

ABB PFEA112-65 张力传感器 伺服驱动器

ABB PFEA112-65 张力传感器 伺服驱动器

瑞典ABB公司生产的PFEA 112系列的张力控制器是一款性价比高 ，操作界面友好的张力控制器，为两个张力计提供精 确可靠的控制或者监视SUM信号。

SUM信号可以分A和B两种信号单独显示，外形尺寸灵巧，可以使其轻松的安装并集成到各种类型的电控柜之中。

PFEA112系列张力控制单元，基本功能是提供频率为330HZ的激发信号到张力计以此实现信号的测量和处理功能，还可以提供输出信号来控制和指示

张力测量结果。PFEA112的信 号处理功能是指通过放大、矫正以及过滤等手段来实现输出精 确和可靠信号。

PFEA112是PFEA1 11的Profibus-DP版本,除基本功能于PFEA111-致外，还可以提供现场总线交互功能。

PFEA112技术参数:

工作电压DC24V(18-36V)

功率: 7.5W

频率: 45-65Hz

张力单元数量: 2

激发信号电流: 0.5 Ams,330Hz

防护等级: IP20 IP65

工作温度: +5-+55*C

绿色/红色LED指示灯

多语言版本

ABB PFEA112-65 张力传感器 伺服驱动器

The PFEA 112 series tension controller from ABB Sweden is a cost-effective, user-friendly tension controller that provides accurate and reliable control of two tensiometers or monitoring of SUM signals.

SUM signal can be divided into A and B signals separately displayed, smart size, can make it easy to install and integrate into various types of electric control cabinet.

PFEA112 series tension control unit, the basic function is to provide a frequency of 330HZ excitation signal to the tension meter to achieve signal measurement and processing functions, but also to provide output signals for control and indication

Tension measurement results. The signal processing function of PFEA112 is to achieve accurate and reliable signal output by means of amplification, correction and filtering.

PFEA112 is the Profibus-DP version of PFEA11, which in addition to the basic functions of PFEA111-, can also provide fieldbus interaction.

PFEA112 Technical parameters:

Working voltage DC24V(18-36V)

Power: 7.5W

Frequency: 45-65Hz

Number of tension units: 2

Excitation signal current: 0.5Ams,330Hz

Protection level: IP20 IP65

Operating temperature: +5-+55*C

Green/red LED indicator

Multilingual version
