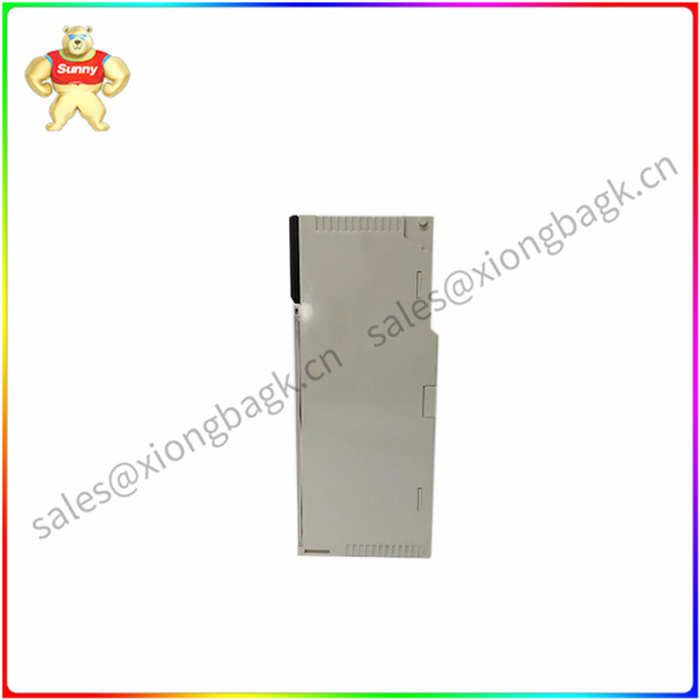

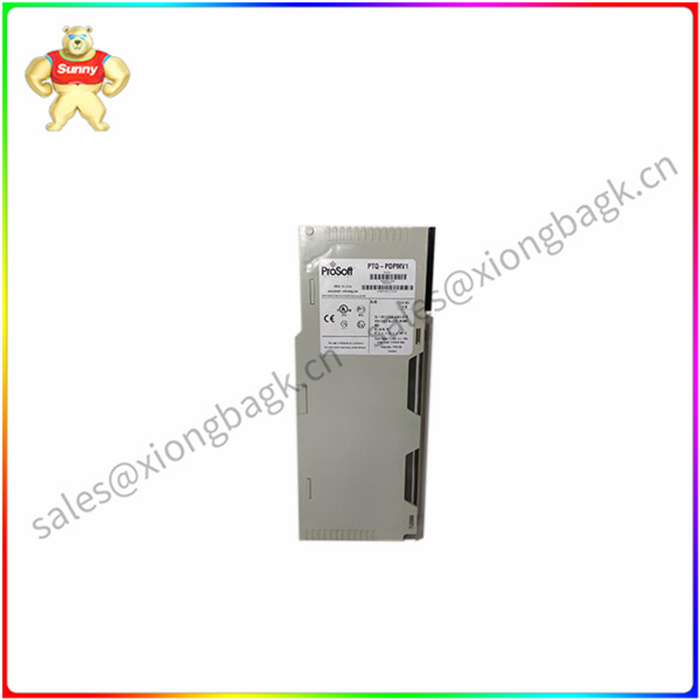

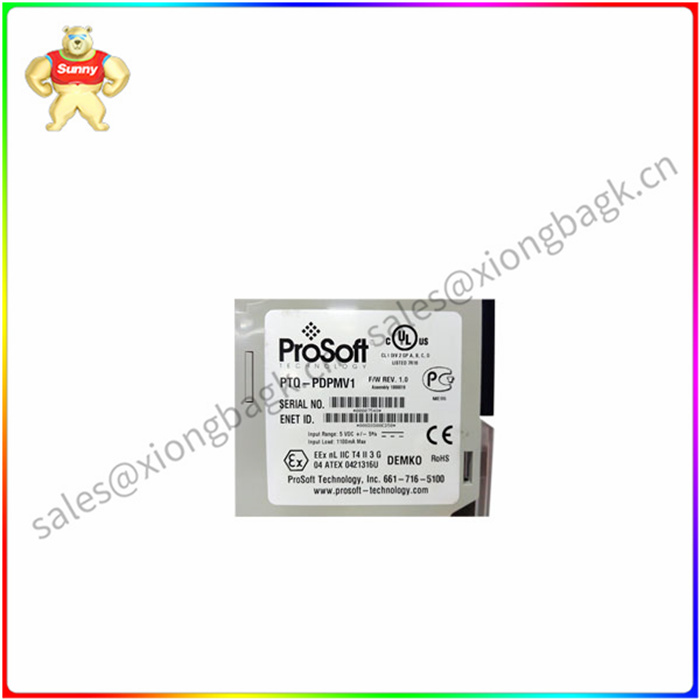

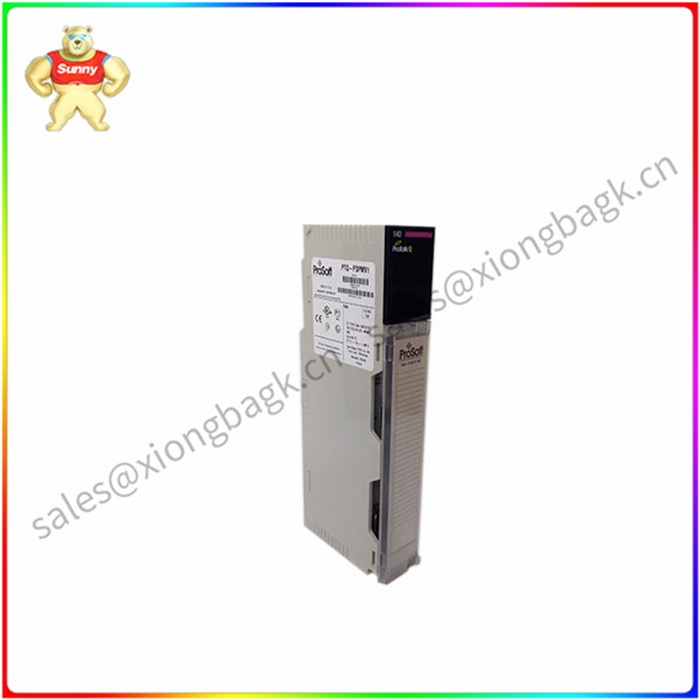

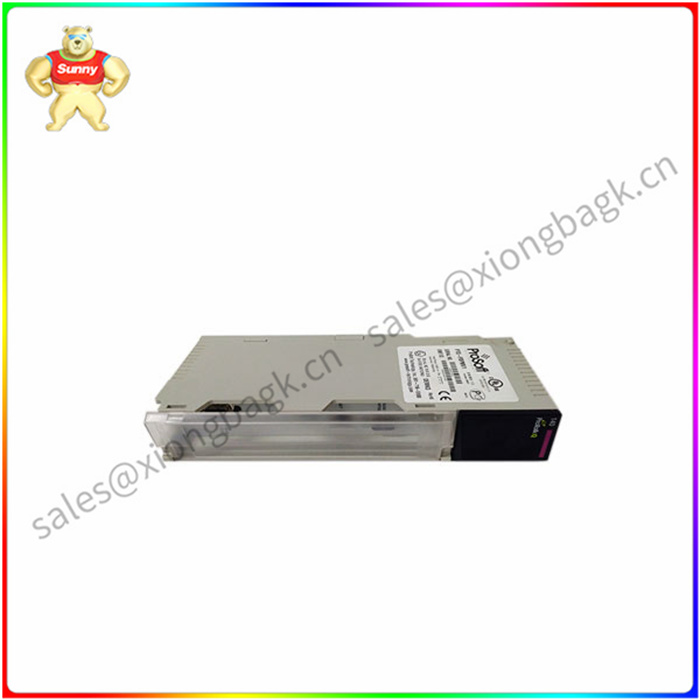

PTQ-PDPMV1 PROSOFT DP主网络接口模块

PTQ-PDPMV1 PROSOFT DP主网络接口模块

PROFIBUS DPV1 主站模块是一款强大的基于 Quantum® 处理器平台的通信接口模块。该模块经授权开发，集成了专 利背板技术，能够与处理器进行高效的数据交换。

该模块支持完整的 Profibus-DP 主站规格，符合 IEC 61158 标准。非循环参数数据可通过类别 1 或类别 2 的 DPV1 服务进行传输，从而使处理器通过该模块与支持 PROFIBUS DPV0/V1 协议的从站设备轻松实现通信。

该模块在 PROFIBUS 网络和处理器之间完成协议转化和数据传输的时候被视为系统本身的输入/输出模块。处理器的数据传输与 PROFIBUS 网络上的 I/O 数据传输异步。

PTQ-PDPMV1 PROSOFT DP主网络接口模块

The PROFIBUS DPV1 master module is a powerful communication interface module based on the Quantum® processor platform. Developed under license, the module integrates patented backplane technology to enable efficient data exchange with the processor.

The module supports the full Profibus-DP master station specification, according to IEC 61158. Acyclic parameter data can be transmitted through the DPV1 service of Class 1 or Class 2, allowing the processor to easily communicate with slave devices that support the PROFIBUS DPV0/V1 protocol through this module.

This module is regarded as the input/output module of the system itself when the protocol conversion and data transmission between the PROFIBUS network and the processor are completed. The data transfer of the processor is asynchronous with the I/O data transfer on the PROFIBUS network.
