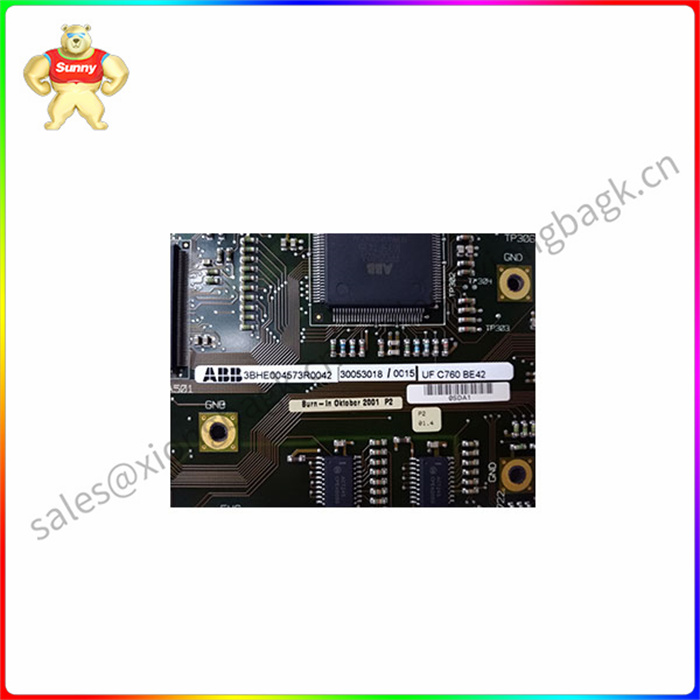

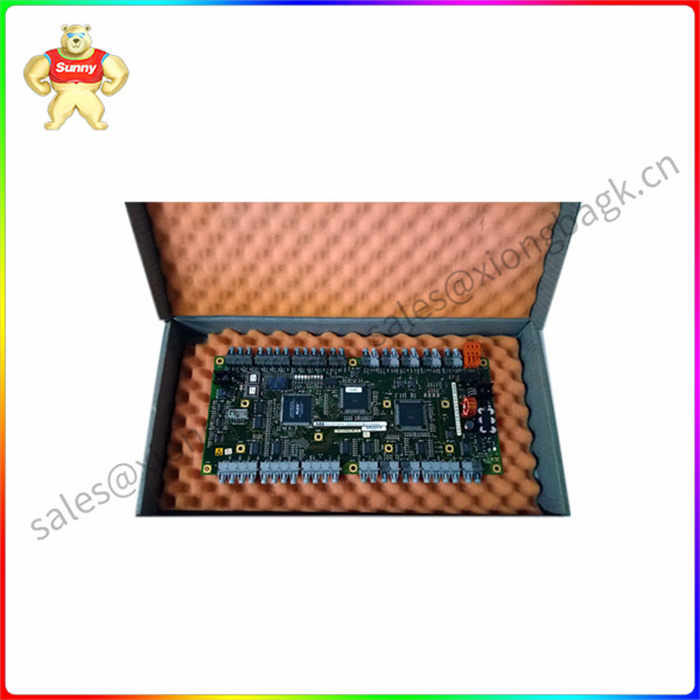

UFC760BE42 变频器驱动单元 ABB 数字通信输入

UFC760BE42 变频器驱动单元 ABB 数字通信输入

Anybus X-gateway是一种可配置的独立网关，允许Profibus网络上的车间设备与Modbus-TCP网络上的设备进行通信，反之亦然。典型应用是混合使用西门子和施耐德电气、ABB或GE PLCs的安装。一个例子是汽车制造厂，其中基于Profibus的段应集成到基于工业以太网的控制应用中，并采用流行的Modbus-TCP协议。X-gateway是一款紧凑型设备，适用于标准DIN导轨安装和24伏工业电源。它在Modbus-TCP网络上充当服务器(从机),在Profibus端充当主机。

Profibus主功能通过HMS Anybus NetTool for Profibus进行配置，这是一个功能强大但易于使用的基于Windows的配置工具，随X-gateway免费提供。初始配置下载到X-gateway后，它会在Modbus-TCP和Profibus之间透明地传递多达512字节的输入数据和512字节的输出数据。多达124个Profibus从站可以连接到网关。除了数据传输功能，X-gateway还在Modbus-TCP端集成了一个强大的嵌入式web服务器，支持基于web的远程诊断和可视化。甚至OPC服务器也包含在X-gateway的交付范围内。X-gateway包含Profibus和Modbus-TCP通信接口，已经过认证，完全符合各自的协议标准。Anybus X-gateway系列是一个产品线，由200多个经过验证的、强大的、随时可用的网关组成，旨在连接两个工业网络的几乎所有可能的组合。

该产品系列支持17种不同的现场总线和工业以太网，如Profibus、DeviceNet、CANopen、CC-Link、EtherNet/IP、Profinet等所有版本都以相同的方式工作，并提供灵活的标准解决方案来连接两个工业网络。HMS工业网络是自动化设备嵌入式网络技术的领 先独立供应商。HMS开发和制造自动化设备与工业网络接口的解决方案。开发和制造在位于瑞典哈尔姆斯塔德的总部进行。本地销售和支持由HMS在芝加哥、北京、卡尔斯鲁厄、米兰、米卢斯和东京的分支机构提供。

UFC760BE42 变频器驱动单元 ABB 数字通信输入

Anybus X-gateway is a configurable stand-alone gateway that allows workshop equipment on a Profibus network to communicate with equipment on a Modbus-TCP network and vice versa. Typical applications are installations using a mix of Siemens and Schneider Electric, ABB or GE PLCs. An example is an automotive manufacturing plant, where Profibus-based segments should be integrated into industrial Ethernet-based control applications and adopt the popular Modbus-TCP protocol. The X-gateway is a compact device for standard DIN rail installations and 24 volt industrial power supplies. It acts as a server (slave) on the Modbus-TCP network and as a host on the Profibus side.

The Profibus main feature is configured through HMS Anybus NetTool for Profibus, a powerful but easy-to-use Windows-based configuration tool that comes free with X-gateway. When the initial configuration is downloaded to X-gateway, it transparently passes up to 512 bytes of input data and 512 bytes of output data between Modbus-TCP and Profibus. Up to 124 Profibus slave stations can be connected to the gateway. In addition to data transfer capabilities, X-gateway also integrates a powerful embedded web server on the Modbus-TCP side to support web-based remote diagnostics and visualization. Even OPC servers are included in X-gateway's delivery. X-gateway contains Profibus and Modbus-TCP communication interfaces that are certified to fully comply with their respective protocol standards. The Anybus X-gateway family is a product line consisting of more than 200 proven, powerful, ready-to-use gateways designed to connect virtually every possible combination of two industrial networks.

The product family supports 17 different fieldbuses and industrial EtherNet, such as Profibus, DeviceNet, CANopen, CC-Link, EtherNet/IP, Profinet, etc. All versions work in the same way and provide a flexible standard solution to connect two industrial networks. HMS Industrial Networks is a leading independent supplier of embedded networking technology for automation equipment. HMS develops and manufactures solutions for interfaces between automation equipment and industrial networks. Development and manufacturing takes place at the head office in Halmstad, Sweden. Local sales and support are provided by HMS branches in Chicago, Beijing, Karlsruhe, Milan, Mulhouse and Tokyo.

UFC760BE42 变频器驱动单元 ABB 数字通信输入
