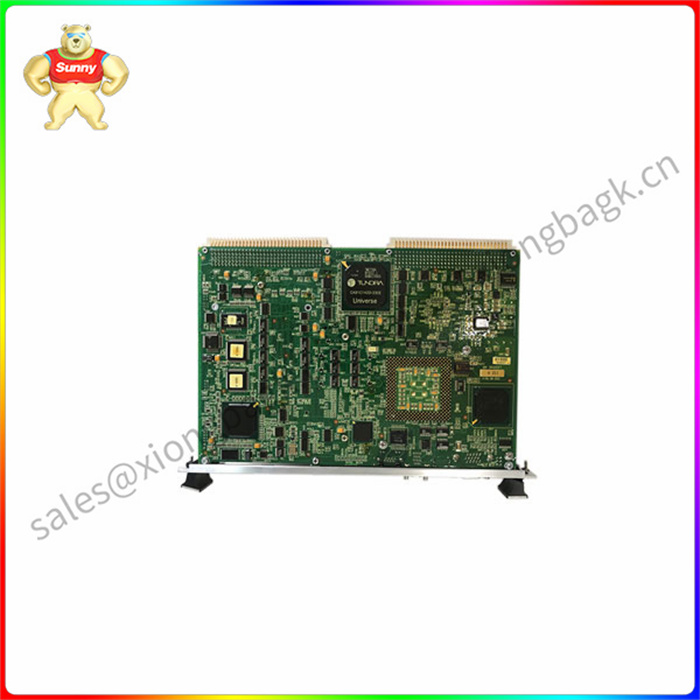

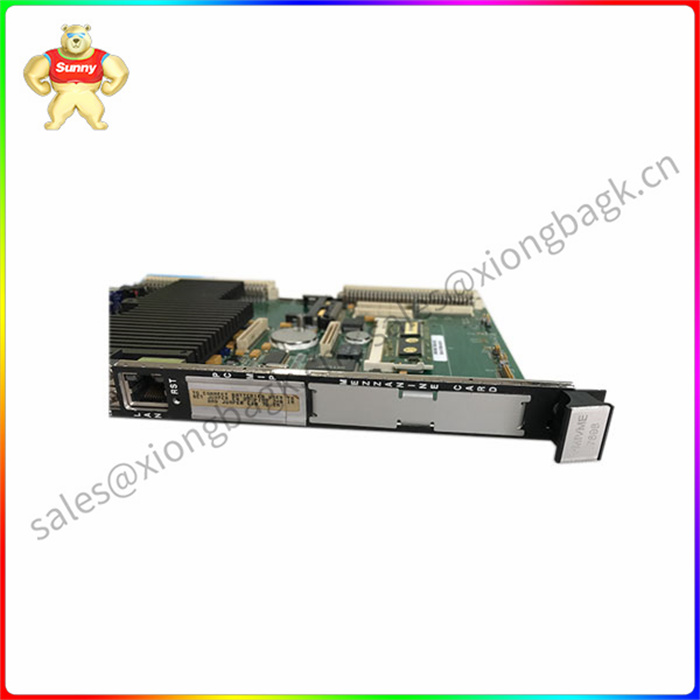

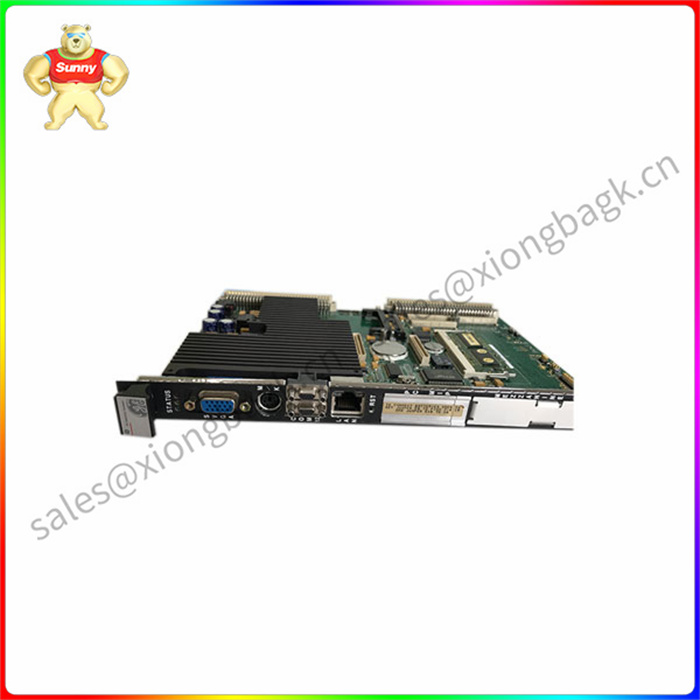

VMIVME-7698-345 自动化控制系统 GE 反射式内存节点卡

VMIVME-7698-345 自动化控制系统 GE 反射式内存节点卡

特点:
赛扬插座370处理器

64位英特尔AGP SVGA控制器，带2兆字节SGRAM

板载快速以太网控制器，支持10BaseT和100BaseTX接口

带有VMEbus P2 I/O的板载Ultra DMA/33硬盘和Foppy驱动器控制器

两个高性能16550兼容串行端口

前面板上的PS/2风格键盘和鼠标端口

VME64连接器

基于Abaco Systems / VMIC VMIVME-7698单槽赛扬插座370处理器的VME / VME64单板计算机配有带MMX的英特尔赛扬处理器。赛扬处理器具有32位寻址和64位数据总线。板载DRAM是VMEbus的双端口。系统和视频BIOS被提供在可重新编程的闪存中。VMIVME-7698为用户提供了三个16位定时器(除了系统定时器之外),与82C54兼容。这些定时器映射到I/O空间，并且完全是软件可编程的。

VMIVME-7698-345 自动化控制系统 GE 反射式内存节点卡

Features:
Celeron Socket 370 processor

64-bit Intel AGP SVGA controller with 2 megabytes of SGRAM

Onboard fast Ethernet controller with 10BaseT and 100BaseTX interfaces

Onboard Ultra DMA/33 hard disk with VMEbus P2 I/O and Foppy drive controller

Two high-performance 16550 compatible serial ports

PS/2 style keyboard and mouse ports on the front panel

VME64 connector

The VME/VME64 single-board computer based on the Abaco Systems/VMIC VMIVME-7698 single-slot Cyon Socket 370 processor is equipped with an Intel Cyon processor with MMX. Celeron processors have 32-bit addressing and 64-bit data buses. The onboard DRAM is the dual port of the VMEbus. The system and video BIOS are provided in reprogrammable flash memory. The VMIVME-7698 provides users with three 16-bit timers (in addition to the system timer), compatible with the 82C54. These timers map to the I/O space and are completely software programmable.
