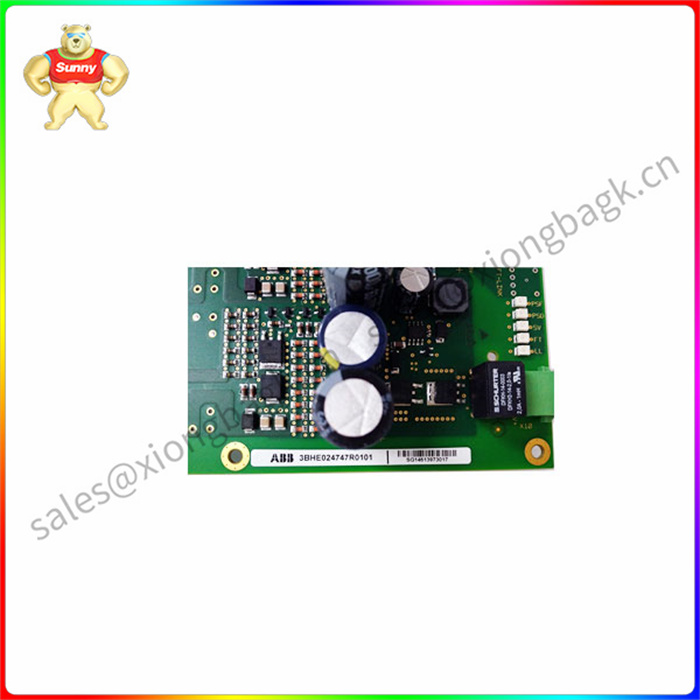

3BHE024747R0101 ABB 模拟量模块 参考数据集和辅助
2N3A3110-C电磁吸盘控制器：交流电压380V经变压器降压后，经过整流器整流变成110V直流后经控制装置进入吸盘此时吸盘基板具有锁定机构，该锁定机构将金属背板连接到DIN导轨，提供有效的接地连接。
1.将锁定装置旋转到打开位置。钩住后部的上唇在DIN导轨的上边缘上方固定基板，然后卡扣基板完全进入安装位置。
2.将锁定装置旋转到滑动位置。沿着DIN滑动装置导轨到所需的安装位置，并将其连接到相邻的单元底板带有连接器插头和插座。
3.将锁定装置顺时针旋转至锁定位置。ACS800标准应用程序7.x支持使用四个数据集，每个方向两个。用于控制驱动器的两个数据集被称为主参考数据集和辅助参考数据集。驱动器读取的源主参考数据集和辅助参考数据集由参数90.04和分别为90.05。主参考数据集的内容是固定的。这个可以使用参数90.01来选择辅助参考数据集的内容，0.02和90.03。包含驱动器实际信息的两个数据集称为主实际信号数据集和辅助实际信号数据集中。的内容两个数据集都是部分可选择的，并且具有组92处的参数。
通过设置参数98.02 COMM.MODULE LINK（通信模块链接）激活外部控制给ADVANT。
3BHE024747R0101 ABB 模拟量模块 参考数据集和辅助
The substrate has a locking mechanism that connects the metal backplane to the DIN rail, providing an effective ground connection.
1. Rotate the locking device to the open position. Hook the upper lip of the rear to secure the substrate above the upper edge of the DIN rail, then snap the substrate fully into the mounting position.
2. Rotate the locking device to the sliding position. Slide the device rail along the DIN to the desired mounting position and connect it to the adjacent unit baseplate with connector plugs and sockets.
3. Turn the locking device clockwise to the locking position. The ACS800 standard application 7.x supports the use of four data sets, two in each direction. The two data sets used to control the drive are called the primary reference data set and the secondary reference data set. The driver reads the source primary reference data set and secondary reference data set by the parameter 90.04 and 90.05 respectively. The contents of the master reference data set are fixed. This can use the parameter 90.01 to select the contents of the secondary reference dataset, 0.02 and 90.03. The two data sets that contain the actual information of the driver are called the primary actual signal data set and the auxiliary actual signal data set. The contents of both datasets are partially selectable and have a set of 92 parameters.
Activate the external control to ADVANT by setting parameter 98.02 COMM.MODULE LINK.
