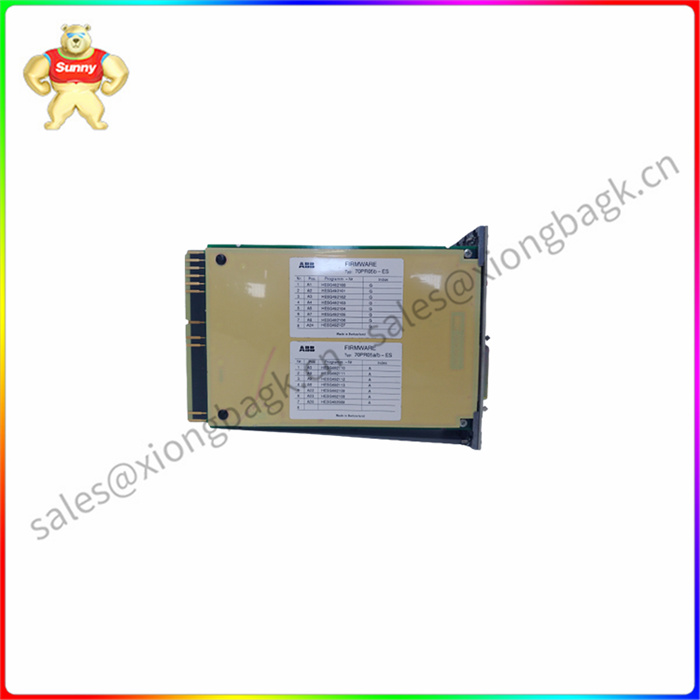

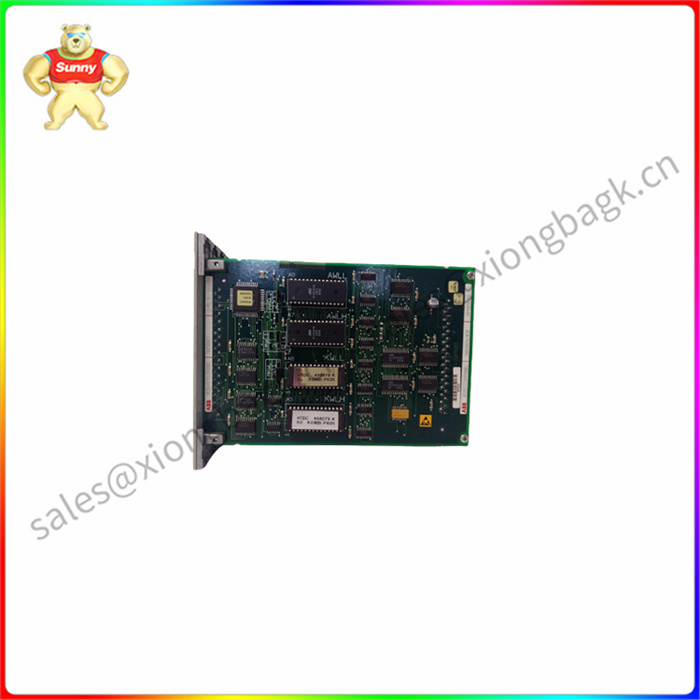

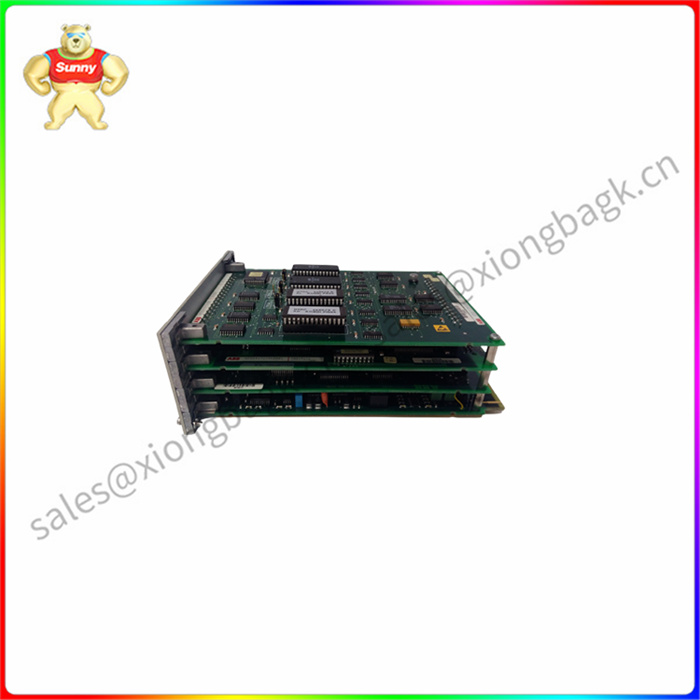

70PR05B-ES HESG332204R0001 ABB 数字量输入模块

70PR05B-ES HESG332204R0001 ABB 数字量输入模块

产品介绍

型号名称： 70PR05B-ES HESG332204R0001

基本安全要求

A.绝缘要求: ≥ 2MΩ

B.漏电流: ≤ 5mA(峰值)

C.介电强度电压试验: 电源进线相对机壳应能承受1500V(50Hz交流有效值)1分钟试验,不出现击穿和飞弧现象.

额定使用条件及规格

A.环境温度: 0 ～ + 40°C

B.相对湿度: + 40°C 20 ～ 90 % RH

C.大气压力: Pb - 106 KPa

D.供电要求: 220V ±10% 50Hz ±5%

E.整机功率: <50VA (非测试状态) <60VA (测试状态)

F.外形尺寸: (E×B×H)mm 480×220×320 (主机) 80×110×40(测试盒件)

G.预热时间: 15分钟

H.整机重量: 15Kg

I.工作时间: 连续工作8小时

J.工作位置: 水平放置或正面仰角小于20°放置

K.外电磁场干扰: 应避免

L.阳光照射: 应避免直射

70PR05B-ES HESG332204R0001 ABB 数字量输入模块

Product introduction

Model name: 70PR05B-ES HESG332204R0001

Basic safety requirements

A. Insulation requirements: ≥ 2MΩ

B. Leakage current: ≤ 5mA(peak)

C. Dielectric strength voltage test: the power supply line relative to the housing should be able to withstand 1500V(50Hz AC RMS value)1 minute test, no breakdown and flaring phenomenon.

Rated service conditions and specifications

A. Ambient temperature: 0 ~ + 40°C

B. Relative humidity: + 40°C 20 ~ 90% RH

C. Atmospheric pressure: Pb-106 KPa

D. Power supply: 220V ±10% 50Hz ±5%

E. Machine power: <50VA (non-test state) <60VA (test state)

F. Dimensions: (E×B×H)mm 480×220×320 (main engine) 80×110×40(test box)

G. Preheating time: 15 minutes

H. Machine weight: 15Kg

I. Working hours: 8 consecutive hours

J. Working position: horizontal placement or frontal elevation less than 20° placement

K. External electromagnetic field interference: should be avoided

L. Sunlight: Avoid direct sunlight
