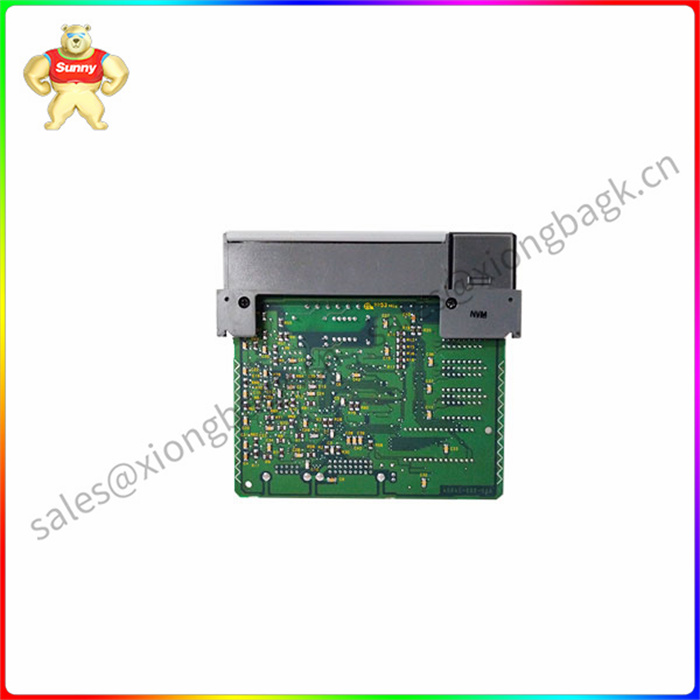

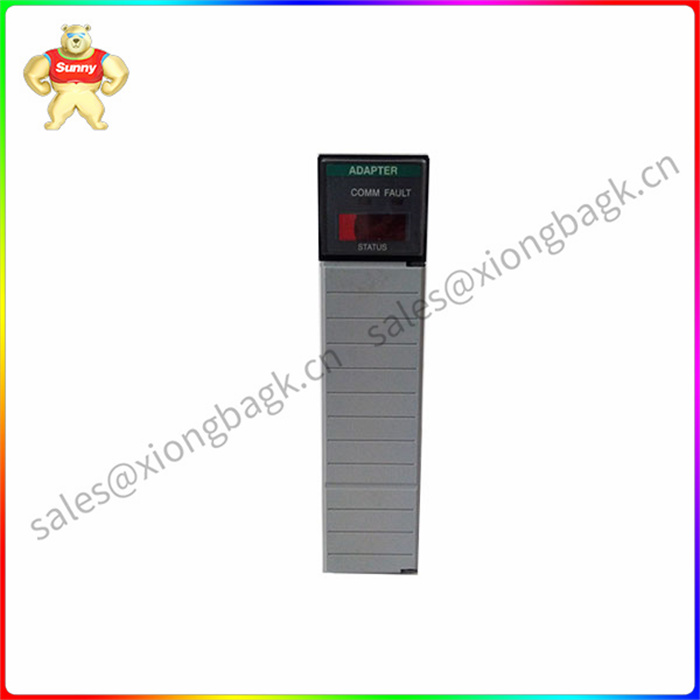

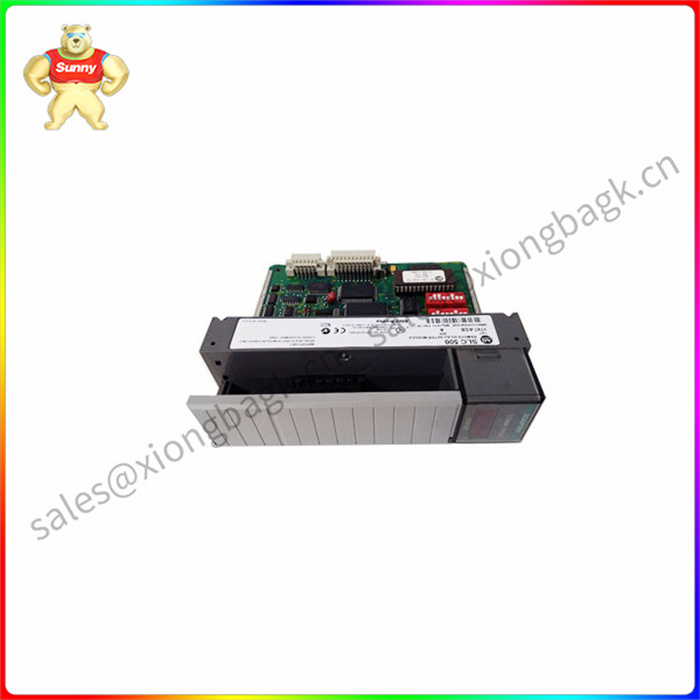

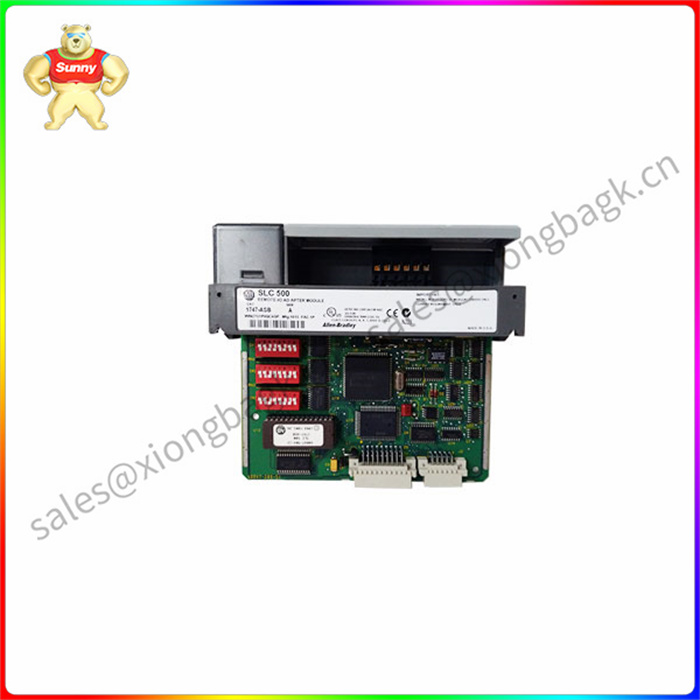

Allen-Bradley 1747-ASB 是远程 I/O 适配器模块，是 SLC 500 系统的一部分。它通过远程 I/O 在 SLC 或 PLC 扫描仪与各种 1746 I/O 模块之间建立通信链路。远程 I/O 链路由一个主设备（即 SLC 或 PLC 扫描仪）和一个或多个作为适配器的从设备组成。SLC 或 PLC 映像表直接从其机箱获取 I/O 模块映像映射。对于图像映射，它支持离散传输和块传输。1747-ASB 支持 1/2 插槽、1 插槽和 2 插槽寻址，具有高效的镜像利用率。它安装在带有 SLC 500 处理器的机箱中，并扫描机箱中的 I/O。

1747-ASB 模块在 375V 时具有 5 mA 背板电流，在 0V 时具有 24 mA 背板电流。它的zui小和zui大散热为 1.875 W。它可以在zui远 3040 米的距离内传输 I/O 数据，并支持 57.6K、115.2K 和 230.4K 波特率。它允许用户选择zui多 32 个逻辑组的映像大小，并控制多达 30 个机箱插槽。1747-ASB 还为多达 32 个适配器提供非易失性存储器和扩展节点功能。接线时，必须使用 Belden 9463 或类似类别的电缆，并且不需要任何用户编程。它使用 6 针凤凰连接器在远程 I/O 链路和处理器之间进行连接。1747-ASB 模块支持所有 SLC 501 I/O 模块，如基本模块、电阻模块、高速计数器模块等。对于故障排除和操作，它有三个 7 段显示器，具有显示操作状态和错误的增强功能。1747-ASB 旨在用于工业环境，并提供 NEMA 标准抗噪性。

1747- ASB 是属于 SLC 500 自动化平台的远程 IO 适配器。此 IO 适配器与 I/O 扫描器模块、接口卡和网关通信，以建立远程 IO 连接。

对于 PLC 应用，该模块的主要目的是通过远程 I/O 网络实现分布式 IO 应用。与 SLC 扩展总线相比，该扩展的电缆长度有限，SLC 机箱扩展非常有限。使用1747-ASB，zui多可使用32个带有1747 RIO扫描仪的SLC机箱，适用距离为762米或2500英尺（230.4 KBaud），1524米或5000英尺（115.2 KBaud）和3048米或10,000英尺（57.6 KBaud）。该适配器的控制能力zui多为30个，此30插槽限制可以分段到不同的机箱或机架，每个机架都安装了RIO扫描仪和电源。

除了与远程 IO 扫描仪通信外，该模块还可用于与直接安装在个人计算机上的 Allen-Bradley 通信卡进行通信。这实现了远程编程和配置功能，以及通过监控和数据采集 （SCADA） 进行远程控制。或者，Allen-Bradley 人机界面 （HMI） （如 PanelView 产品）能够添加远程 I/O 适配器，使 HMI 能够像 SCADA 系统一样控制过程。

Allen-Bradley 1747-ASB 是一款适配器模块具有通用远程 I/O 通信端口
Allen-Bradley 1747-ASB is a remote I/O adapter module that is part of the SLC 500 system. It establishes communication links between SLC or PLC scanners and various 1746 I/O modules via remote I/O. A remote I/O link consists of a master device (i.e., an SLC or PLC scanner) and one or more slave devices that act as adapters. The SLC or PLC map table gets the I/O module map directly from its chassis. For image mapping, it supports discrete transfer and block transfer. The 1747-ASB supports 1/2 slot, 1 slot, and 2 slot addressing for efficient mirror utilization. It is installed in a case with an SLC 500 processor and scans for I/O in the case.

The 1747-ASB module has a backplane current of 5 mA at 375V and 24 mA at 0V. It has a minimum and maximum heat dissipation of 1.875 W. It can transmit I/O data over distances of up to 3040 meters and supports 57.6K, 115.2K and 230.4K baud rates. It allows users to select image sizes for up to 32 logical groups and control up to 30 chassis slots. The 1747-ASB also provides non-volatile memory and extended node capabilities for up to 32 adapters. When wiring, a cable of Belden 9463 or similar class must be used and no user programming is required. It uses a 6-pin Phoenix connector to connect between remote I/O links and processors. The 1747-ASB module supports all SLC 501 I/O modules such as base module, resistance module, high speed counter module, etc. For troubleshooting and operation, it has three 7-segment displays with enhancements to show operating status and errors. The 1747-ASB is designed for use in industrial environments and provides NEMA standard noise resistance.

The 1747-ASB is a remote IO adapter for the SLC 500 automation platform. This IO adapter communicates with the I/O scanner module, interface cards, and gateways to establish remote IO connections.

For PLC applications, the main purpose of this module is to realize distributed IO applications through remote I/O networks. The cable length of this extension is limited compared to the SLC expansion bus, and the SLC chassis expansion is very limited. With the 1747-ASB, up to 32 SLC cases with the 1747 RIO scanner can be used at a range of 762 meters or 2,500 feet (230.4 KBaud). 1524 meters or 5,000 feet (115.2 KBaud) and 3048 meters or 10,000 feet (57.6 KBaud). The adapter has up to 30 control capabilities, and this 30-slot limit can be segmented into different chassis or racks, each of which houses the RIO scanner and power supply.

In addition to communicating with the remote IO scanner, the module can also be used to communicate with the Allen-Bradley communication card installed directly on the personal computer. This enables remote programming and configuration capabilities, as well as remote control via supervisory Control and Data Acquisition (SCADA). Alternatively, Allen-Bradley human machine interfaces (Hmis), such as PanelView products, can add remote I/O adapters that enable the HMI to control processes like SCADA systems.
