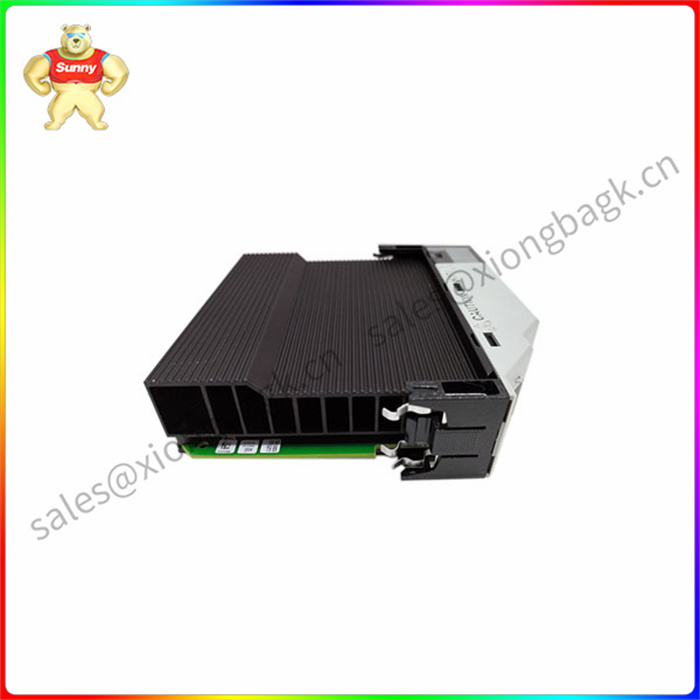

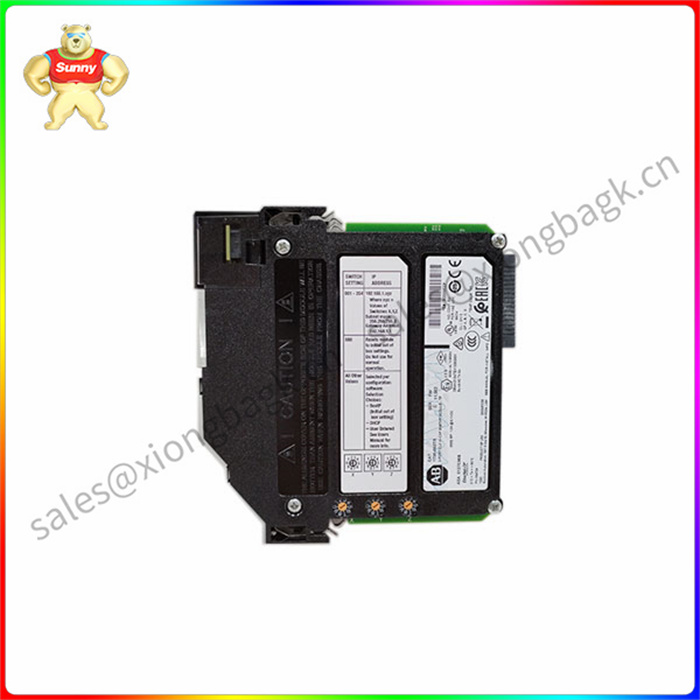

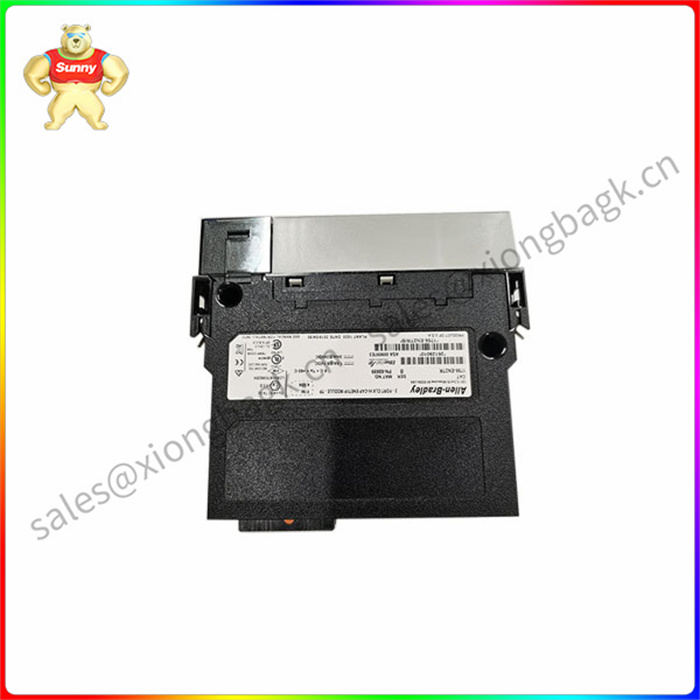

1756-EN2TR 支持以太网 I/P 通信协议的 通信模块

1756-EN2TR 支持以太网 I/P 通信协议的 通信模块

Allen-Bradley 1756-EN2TR 是 ControlLogix 通信模块系列的一部分。它是一种Ethernet/IP（以太网工业协议）双端口接口通信模块。它支持常规消息传递、实时 I/O 消息传递以及实时控制、时间同步和运动等应用程序的信息交换。1756-EN2TR 还符合 CIP 安全标准，允许同时传输安全和控制数据以及诊断信息。它使用先进的通信芯片和物理介质。

1756-EN2TR 模块具有 10 - 100 Mbps 的以太网/IP 通信速率，并使用双铜缆。它支持 256 个 Logix 和 128 个 TCP/IP 通信连接。它zui多可以支持 8 个轴，用于以太网/IP 网络上的集成运动，并在 1.5V DC 时消耗 1 A 电流。它的zui大功耗为 5.1 W，散热为 17.4 BTU/小时。它可以安装在 ControlLogix 机箱的任何插槽中。在接线方面，它使用非屏蔽 RJ45 5 类双绞线电缆连接器与控制器连接。要运行以太网/IP 网络，必须定义 IP 地址、子网掩码、网关等参数。

1756-EN2TR 网桥具有多种功能，例如为消息传递、分布式 I/O 和标记提供支持。它将消息封装在标准 TCP/IP 协议中。ControlNet 和 DeviceNet 网络协议允许它共享一个通用的应用层。1756-EN2TR 不需要任何调度或路由表来存储信息。其他功能包括显式保护模式、电子密钥、设备级环网和并行冗余协议网络支持。

1756-EN2TR 是 ControlLogix 以太网通信模块，专为冗余以太网网络而设计。通过支持以太网协议和具有自动协商功能的 545/10 Mbps 传输速度的嵌入式双 RJ100 端口，该模块提高了以太网网络的可用性。

该模块支持环形和星形拓扑结构，以及合格的合作伙伴设备，例如 Flex IO、POINT IO、冗余以太网适配器、CompactLogix 和 ControlLogix。该模块还支持向其他 Allen-Bradley 控制器（如 SLC 500、PLC-5 和 MicroLogix 控制器）发送消息。它还兼容与相同的 Allen-Bradley 甚至第三方产品的人机界面 （HMI）、监控和数据采集 （SCADA） 进行通信。它还可以与合作伙伴模块和第三方网关、转换器和设备合作。

该模块还支持计算机和编程工作站的嵌入式以太网通信，因此无需购买昂贵的通信适配器即可与控制器建立连接。此外，该模块所需的电缆是 3 类或 3 类电缆，可以制造成通信电缆。

该模块zui多可同时建立 5 个 TCP 连接，而对于通用工业协议 （CIP），zui多可建立 6 个连接。

1756-EN2TR 支持以太网 I/P 通信协议的 通信模块

The Allen-Bradley 1756-EN2TR is part of the ControlLogix family of communication modules. It is an Ethernet/IP (Ethernet Industrial Protocol) dual-port interface communication module. It supports regular messaging, real-time I/O messaging, and information exchange for applications such as real-time control, time synchronization, and motion. The 1756-EN2TR also complies with the CIP safety standard, allowing the simultaneous transmission of security and control data as well as diagnostic information. It uses advanced communication chips and physical media.

The 1756-EN2TR module has an Ethernet /IP communication rate of 10-100 Mbps and uses double copper cables. It supports 256 Logix and 128 TCP/IP communication connections. It can support up to eight axes for integrated motion over Ethernet /IP networks and consumes 1 A current at 1.5V DC. It has a maximum power consumption of 5.1W and a heat dissipation of 17.4 BTU/ hour. It can be installed in any slot in the ControlLogix chassis. In terms of wiring, it uses an unshielded RJ45 Class 5 twisted pair cable connector to connect to the controller. To run an Ethernet /IP network, you must define parameters such as IP address, subnet mask, gateway, and so on.

The 1756-EN2TR bridge has a variety of functions, such as support for messaging, distributed I/O, and markup. It encapsulates the message in the standard TCP/IP protocol. The ControlNet and DeviceNet network protocols allow it to share a common application layer. The 1756-EN2TR does not require any scheduling or routing tables to store information. Additional features include explicit protection modes, electronic keys, device-level ring networking, and parallel redundancy protocol networking support.

The 1756-EN2TR is a ControlLogix Ethernet communication module designed for redundant Ethernet networks. The module improves the availability of Ethernet networks with support for Ethernet protocols and an embedded dual RJ100 port with a 545/10 Mbps transfer speed with auto-negotiation.

The module supports ring and star topologies, as well as qualified partner devices such as Flex IO, POINT IO, redundant Ethernet adapters, CompactLogix, and ControlLogix. The module also supports sending messages to other Allen-Bradley controllers such as SLC 500, PLC-5, and MicroLogix controllers. It is also compatible to communicate with the Human machine interface (HMI), monitoring and data acquisition (SCADA) of the same Allen-Bradley and even third-party products. It can also work with partner modules and third-party gateways, converters and devices.

The module also supports embedded Ethernet communication for computers and programming workstations, so there is no need to purchase an expensive communication adapter to establish a connection to the controller. In addition, the cables required for this module are Class 3 or Class 3 cables, which can be manufactured into communication cables.

The module can establish up to five TCP connections at the same time, and for the Common Industrial Protocol (CIP), up to six connections can be established.
