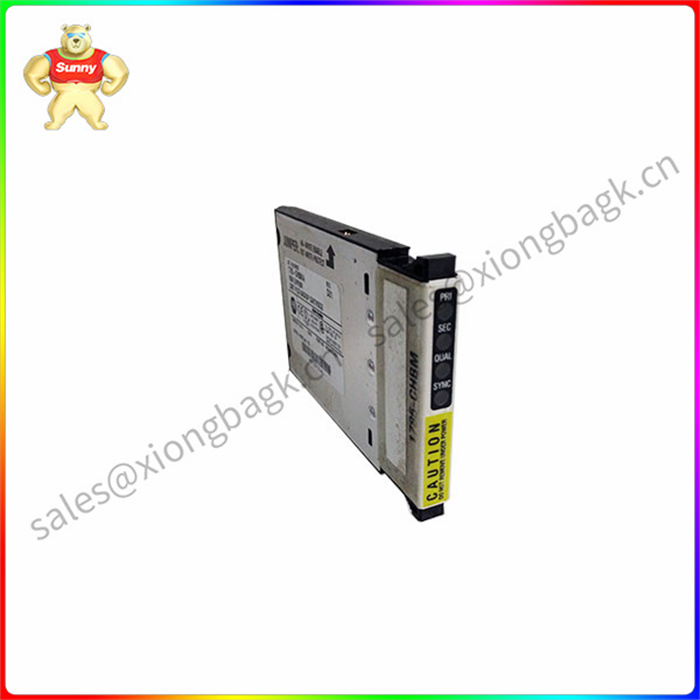

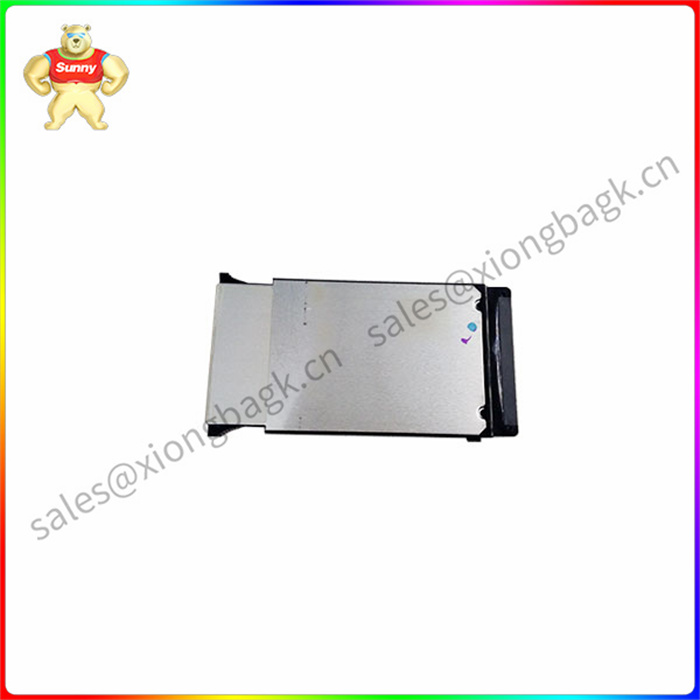

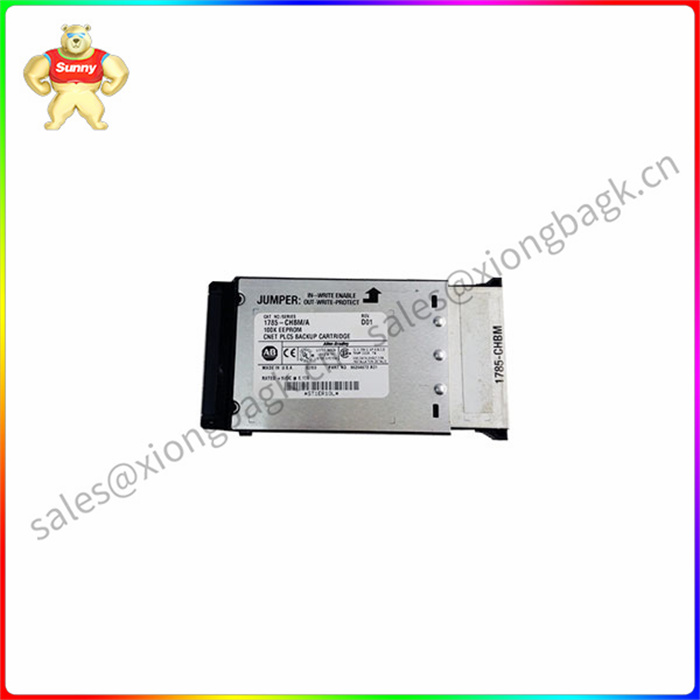

1785-CHBM PLC 5 系列中的热备份型内存磁带
Allen-Bradley 的 1785-CHBM ControlNet PLC-5 热回管模块是安装在 PLC-5 处理器上的备份模块，允许启用 ControlNet 的 PLC-5 控制器在备份模式下运行。
1785-CHBM 具有 100K 字的非易失性用户存储器容量，通过移除模块上的跳线，可以将其存储器授予写保护。该模块旨在与 1785-L20C15、-L40C15 或 -L80C5 处理器完全兼容，并符合 CISPR 11：第 1 组 A 类（带适当的外壳）辐射规范。
1785-CHBM 的 IEC 额定工作温度范围为 0-600 C （32-140 0F），相对湿度为 5-95%，无冷凝，额定储存温度范围为 –40-85 0C （–40-185 0F）。它经过测试和额定，可在 2-10Hz 下承受 500 的运行振动，在不降额的情况下承受 30G 的运行冲击，并且可以承受 50G 的非运行冲击。 它重 7.88 克，通过了 UL、CE、C-TICK 和 CSA 认证。
1785-CHBM PLC 5 系列中的热备份型内存磁带
Allen-Bradley's 1785-CHBM ControlNet PLC-5 Hot return tube module is a backup module installed on the PLC-5 processor that allows ControlNet-enabled PLC-5 controllers to operate in backup mode.
The 1785-CHBM has a non-volatile user memory capacity of 100K words, and by removing the jumper on the module, its memory can be granted write protection. The module is designed to be fully compatible with 1785-L20C15, -L40C15 or -L80C5 processors and complies with CISPR 11: Group 1 Class A (with appropriate housing) radiation specifications.
The 1785-CHBM has an IEC rated operating temperature range of 0-600 C (32-140 0F), relative humidity of 5-95%, no condensation, and rated storage temperature range of -40-85 0C (-40-185 0F). It is tested and rated to withstand 500 operating vibrations at 2-10Hz, 30G operating shocks without derating, and 50G non-operating shocks. It weighs 7.88g and is UL, CE, C-TICK and CSA certified.
1785-CHBM PLC 5 系列中的热备份型内存磁带
