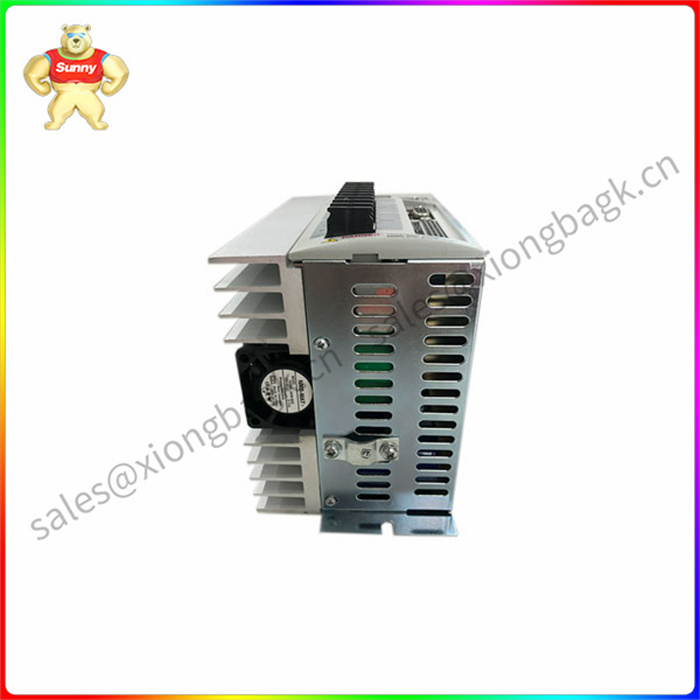

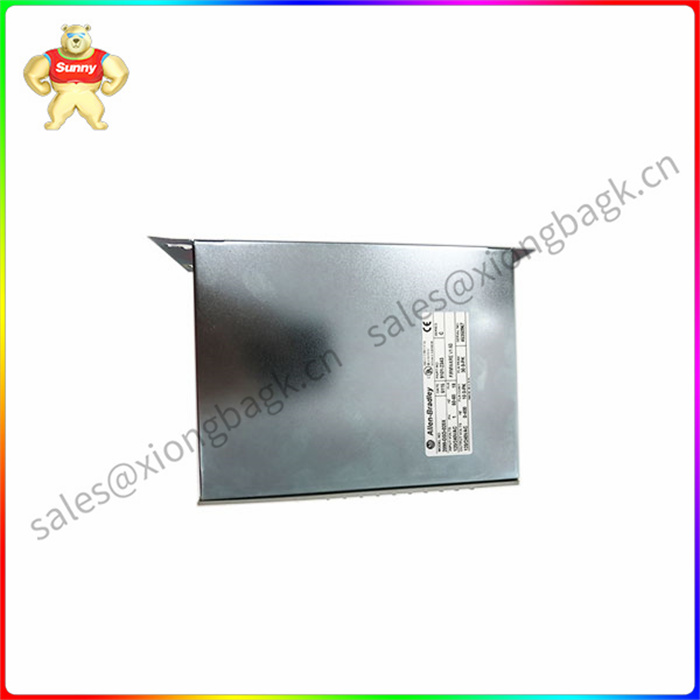

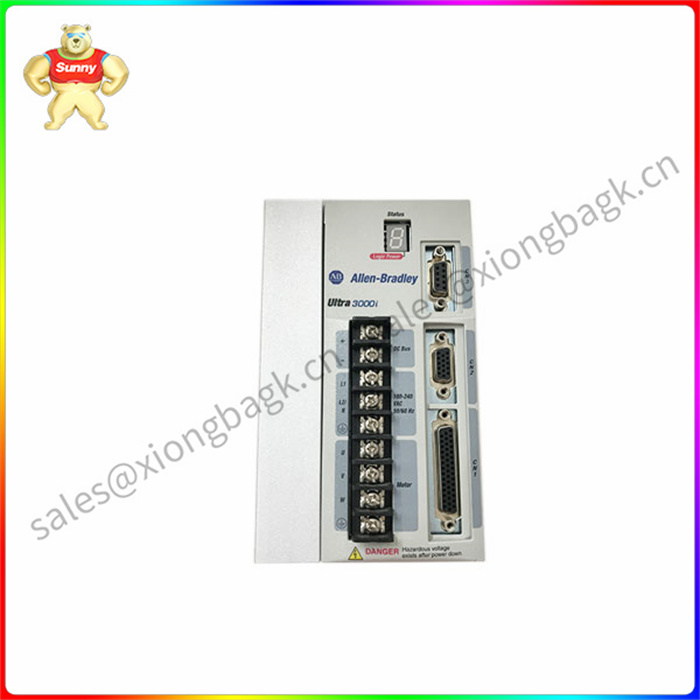

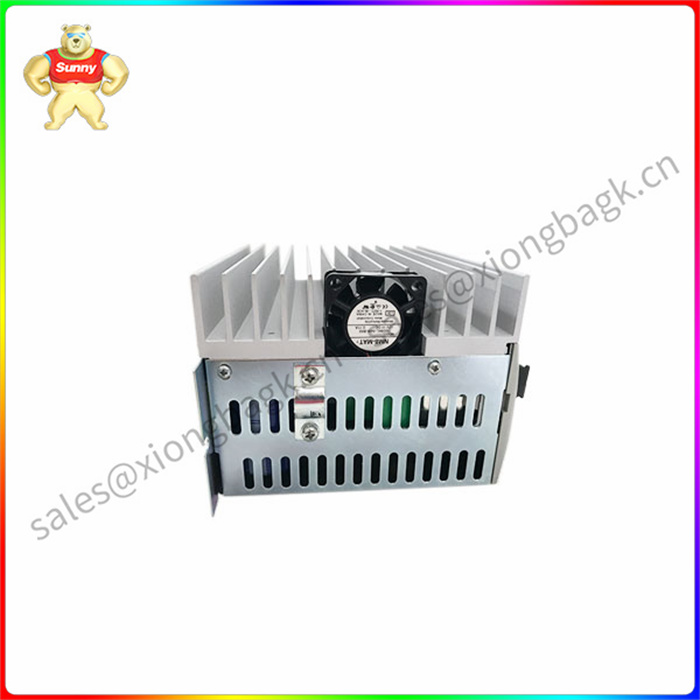

Allen-Bradley 2098-DSD-020 x-DN Ultra 3000数字伺服驱动模块是一种单相交流驱动器，用于控制大多数工业伺服电机。该模块带有DeviceNet和索引。2098-DSD-020X-DN的工作冲击为15g (3个脉冲，11毫秒)。

该模块的非操作冲击为30 g (3个脉冲，11 ms)。该模块设计用于在2.5 g振动下保持zui佳功能。该模块可在高达1000米(3280英尺)的海拔高度下运行，无需降额。该模块的工作温度为0 -55摄氏度(32-131华氏度)。

该模块的储存温度为-40-70°C(-40-158°F)。该模块的相对湿度为5-95%，无冷凝。艾伦-布拉德利2098-DSD-020X-DN重2.1千克(4.6磅)。此模块的尺寸为7.8 x 5.68 x 3.89英寸(198.12 x 144.27 x 98.1毫米)。

Allen-Bradley 2098-DSD-020X-DN的输入电压(AC)为100-240V交流均方根(单相)。该模块的输入频率(AC)为47-63赫兹。该模块的标称输入电流(AC)为18 A均方根值。它还具有健康的10 A (0峰值)连续输出电流和30 A (0峰值)间歇输出电流。

如果在电源打开时连接或断开2098-DSD-020X-DN模块，可能会产生电弧。这可能会在危险场所引起爆炸。重复的电动伸缩装置会导致模块及其配套连接器上的触点过度磨损。

2098-DSD-020X 数字伺服驱动器 用于控制大多数工业伺服电机

Allen-Bradley 2098-DSD-020 x-DN Ultra 3000 digital servo drive module is a single-phase AC driver used to control most industrial servo motors. This module comes with DeviceNet and index. The 2098-DSD-020X-DN operates at 15g (3 pulses, 11 milliseconds).

The non-operational impact of the module is 30 g (3 pulses, 11 ms). The module is designed to maintain optimal function at 2.5g vibration. The module can operate at altitudes up to 1,000 meters (3,280 feet) without derating. The module operates at a temperature of 0-55 degrees Celsius (32-131 degrees Fahrenheit).

The module has a storage temperature of -40-70°C(-40-158°F). The module has a relative humidity of 5-95% and no condensation. The Allen Bradley 2098-DSD-020X-DN weighs 2.1 kg (4.6 lb). This module measures 7.8 x 5.68 x 3.89 inches (198.12 x 144.27 x 98.1 mm).

Allen-Bradley 2098-DSD-020X-DN has an input voltage (AC) of 100-240V AC RMS (single phase). The input frequency (AC) of the module is 47-63 Hz. The nominal input current (AC) of this module is 18 A RMS value. It also has A healthy 10 A (0 peak) continuous output current and 30 A (0 peak) intermittent output current.

If the 2098-DSD-020X-DN module is connected or disconnected while the power is on, an arc may occur. This could cause an explosion in a dangerous place. Repetitive electric retractable devices can cause excessive wear on the contacts on the module and its accompanying connectors.
