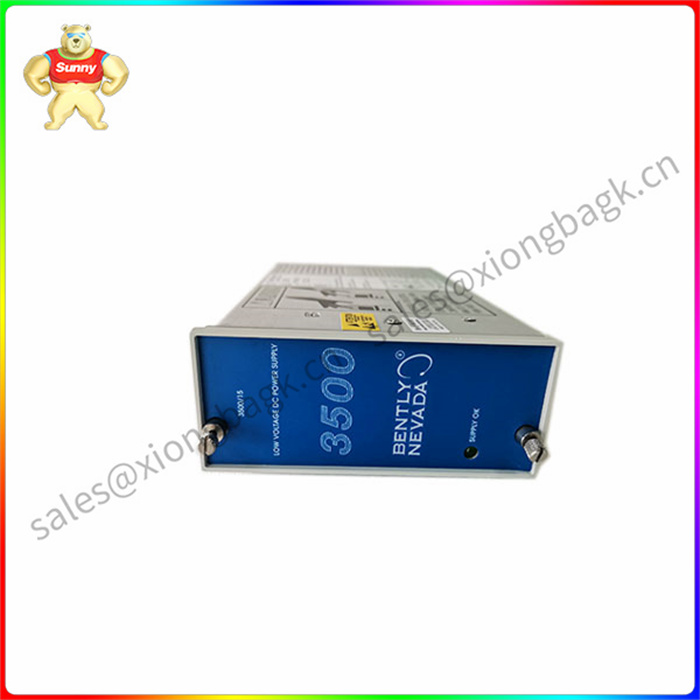

BENTELY 133292-01 位移监测器 TMR继电器模块

BENTELY 133292-01 位移监测器 TMR继电器模块

3500机械保护系统速度监视器
TACH100数字转速计可以用作独立的速度指示器，也可以与任何安装的监控系统一起用作远程速度指示器。紧凑型装置包含自己的电源，当需要在机器附近或远处安装监控系统以指示速度时，这很方便。数字转速计提供本地显示，指示机器甲板上的机器速度。当需要双耳保护时，数字转速计会提供视觉指示。电线可以与显示器机架上的键相量接近探头输入并联，或直接连接到键相量接近探头。TACH100接受来自外部供电的键相接近探头的信号线和公共线。
我们的3500/25键相模块在3500机架中提供相位参考信息(每个3500机架多可以使用四个键相器)，从而实现高 级机械诊断。它接收来自接近探头或磁性拾音器的输入信号，并将每转一次或每转多次事件的脉冲信号转换为的数字定时测量。这允许您的3500系统测量机器速度和矢量参数，例1X振动幅度和相位，这些是确定重要机器行为的关键。键相量测量也是Bently Nevadat汽轮机监控仪表
(TSI)传感器套件的一个组成部分，用于汽轮机。3500系统可作为SIL2级系统使用，并通过了多项危险区域和/地区特定认证，可应对任何环境。
我们的3500/50M转速计模块具有2个通道，接受来自前置器探头或磁性拾音器的输入，以测量轴转速、转子加速度或反向旋转。3500/50M.转速计调节输入并将调节后的信号与用户可编程的设进行比较，这些设可以驱动3500继电器模块中的警报和继电器逻辑。3500机架配置软件提供的报警选项包括速度带、零速、转子加速度和反向旋转。键相量和速度测量也是本特利内华达汽轮机监控仪表(TSI)汽轮机传感器套件的组成部分。3500系统可作为SIL2额定系统使用，并具有多个危险区域和特定/地区的批准。还提供外部终端和内部屏障版本。不适用于超速检测。

BENTELY 133292-01 位移监测器 TMR继电器模块

3500 Mechanical Protection system speed monitor
The TACH100 digital tachometer can be used as a standalone speed indicator or as a remote speed indicator in conjunction with any installed monitoring system. The compact unit contains its own power supply, which is handy when a monitoring system needs to be installed near or far from the machine to indicate speed. The digital tachometer provides a local display indicating the machine speed on the machine deck. A digital tachometer provides visual indication when protection of both ears is required. The wire can be connected in parallel to the key phasor proximity probe input on the display rack or directly to the key phasor proximity probe. The TACH100 accepts signal lines and common lines from externally powered keys close to the probe.
Our 3500/25 key phase module provides phase reference information in 3500 racks (up to four key phasers per 3500 rack) for advanced mechanical diagnostics. It receives an input signal from a close probe or magnetic pickup and converts the pulse signal of one or multiple events per revolution into a digital timing measurement. This allows your 3500 system to measure machine speed and vector parameters, such as 1X vibration amplitude and phase, which are key to determining important machine behavior. Key phasor measurement is also a Bently Nevadat turbine monitoring instrument
A component of the (TSI) sensor suite for use in steam turbines. The 3500 system can be used as a SIL2 level system and has multiple hazardous area and/or area specific certifications to handle any environment.
Our 3500/50M tachometer module has 2 channels and accepts input from the preprocessor probe or magnetic pickup to measure shaft speed, rotor acceleration or reverse rotation. 3500/50m. The tachometer adjusts the input and compares the adjusted signal with user-programmable Settings that drive the alarm and relay logic in the 3500 relay module. Alarm options provided by the 3500 rack configuration software include speed bands, zero speed, rotor acceleration, and reverse rotation. Bond phasor and velocity measurements are also part of the Bentley Nevada Turbine Monitoring Instrument (TSI) turbine sensor suite. The 3500 system can be used as a SIL2 rated system with multiple hazard zones and specific/regional approvals. External terminal and internal barrier versions are also available. Not applicable to speed detection.

BENTELY 133292-01 位移监测器 TMR继电器模块
