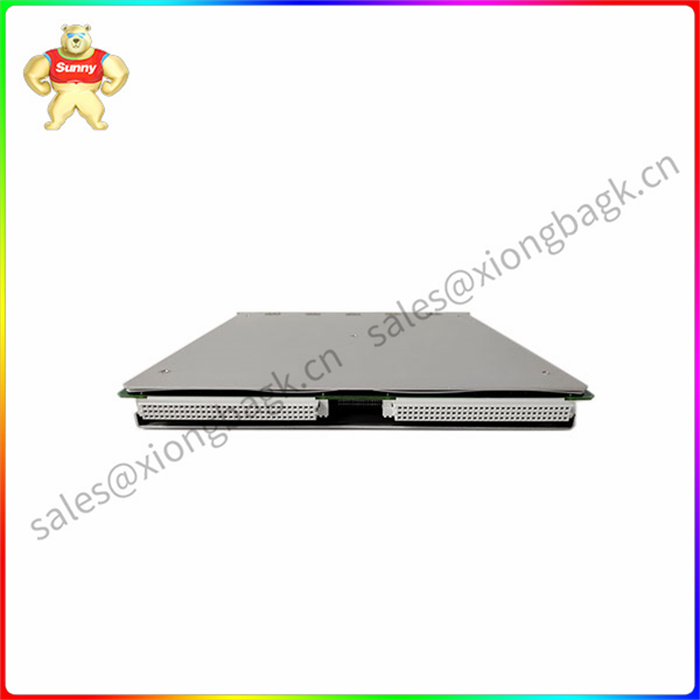

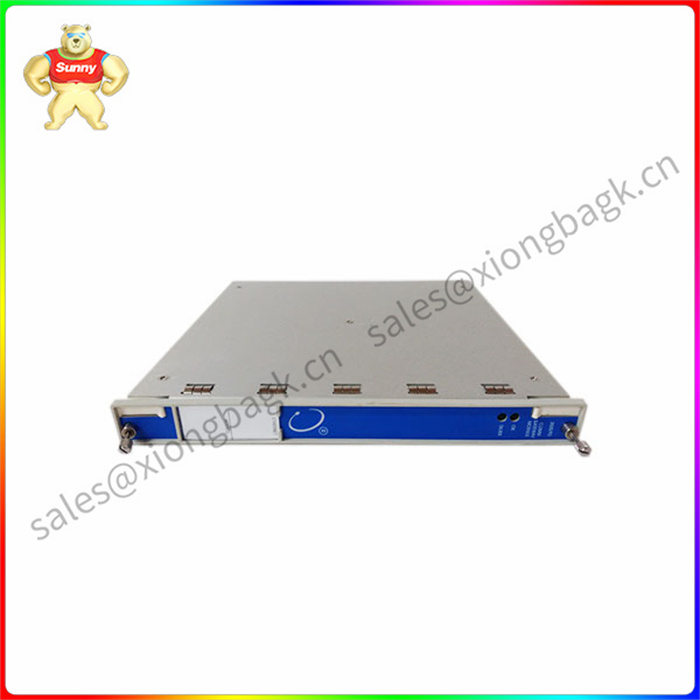

3500/92 是 Bently Nevada 开发的通信网关模块。3500/92 通信网关模块提供广泛的串行 (RS232/RS422/RS485) 和以太网 TCP/IP 通信功能，用于将所有机架监控值和状态与过程控制和其他自动化系统集成在一起。此外，它还支持与数据采集软件和 3500 机架配置软件进行以太网通信。支持的协议包括：

Modicon Modbus 协议（通过串口通讯）

Modbus/TCP 协议（用于 TCP/IP 以太网通信的串行 Modbus 变体）

专有的 Bently Nevada 协议（用于与 3500 机架配置和数据采集软件包通信）

3500/92 功能说明
对于 10BASE-T 星型配置以太网，3500/92 的以太网连接是 RJ45 连接。除了主要值 Modbus 寄存器外，3500/92 支持原始 3500/90 的通信接口、通信协议和附加功能。3500/92 中的主要值 Modbus 寄存器被可配置的 Modbus 寄存器实用程序所取代，现在可以提供相同的功能。

能量消耗
使用 ModbusRS232/RS422 I/O 模块时典型值为 5.0 瓦

使用 Modbus RS485 I/O 模块时典型值为 5.6 瓦

3500/92 数据类型
利用高速内部网络从机架中的其他模块收集信息，包括带有时间戳的当前测量值、模块状态和当前警报状态。

返回的确切数据类型取决于通道配置和模块类型。
更新时间：3500 机架中所有模块的数据采集速率不会大于 1 秒，具体取决于机架的

3500/92 136180-01通信网关模块 以太网通信功能

3500/92 is a communication gateway module developed by Bently Nevada. The 3500/92 Communication Gateway module provides a wide range of serial (RS232/RS422/RS485) and Ethernet TCP/IP communication capabilities for integrating all rack monitoring values and status with process control and other automation systems. In addition, it supports Ethernet communication with data acquisition software and 3500 rack configuration software. Supported protocols include:

Modicon Modbus protocol (communication via serial port)

Modbus/TCP protocol (Serial Modbus variant for TCP/IP Ethernet communication)

Proprietary Bently Nevada protocol (for communication with 3500 rack configuration and data acquisition packages)

3500/92 Function Description
For 10BASE-T star configuration Ethernet, the 3500/92 Ethernet connection is an RJ45 connection. In addition to the main value Modbus register, the 3500/92 supports the communication interface, communication protocol, and additional features of the original 3500/90. The primary value Modbus register in 3500/92 was replaced by the configurable Modbus register utility, which now provides the same functionality.

Energy consumption
The typical value when using the ModbusRS232/RS422 I/O module is 5.0 watts

The typical value is 5.6 watts when using the Modbus RS485 I/O module

3500/92 data type
Use a high-speed internal network to gather information from other modules in the rack, including time-stamped current measurements, module status, and current alert status.

The exact data type returned depends on the channel configuration and module type.
Update time: The data acquisition rate for all modules in the 3500 rack will not be greater than 1 second, depending on the rack
