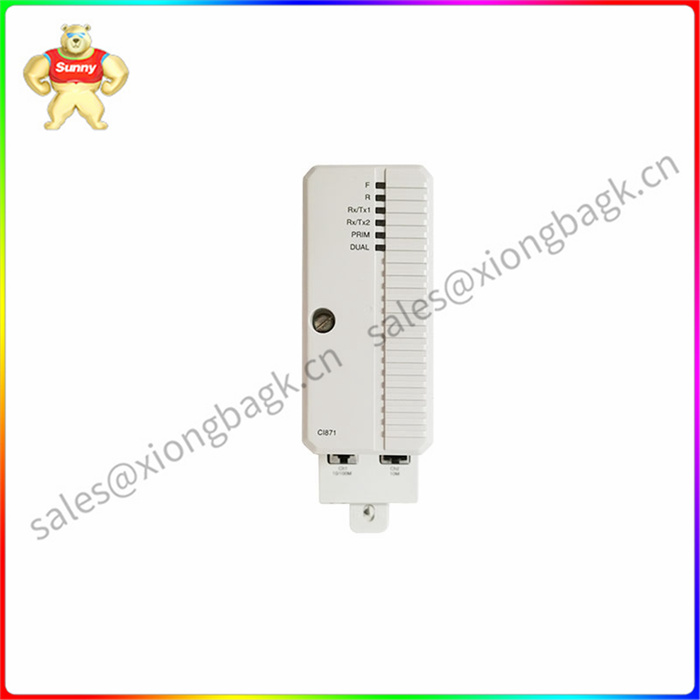

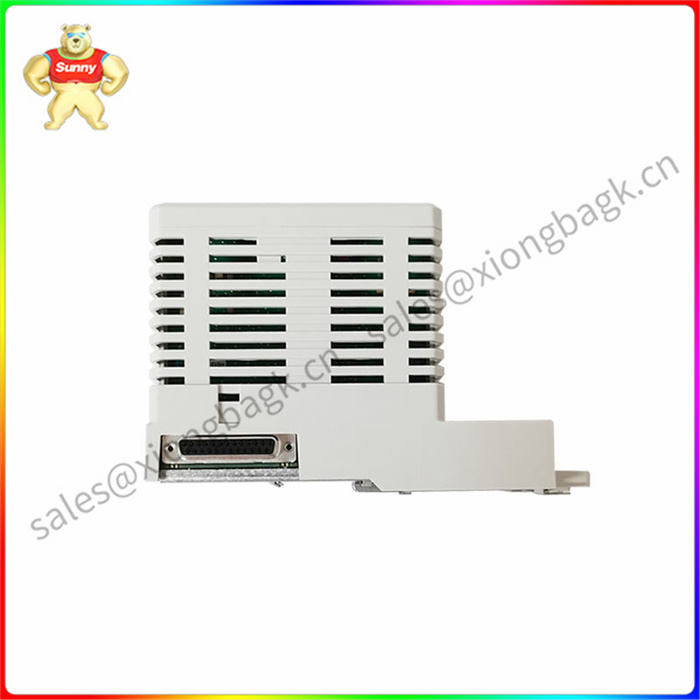

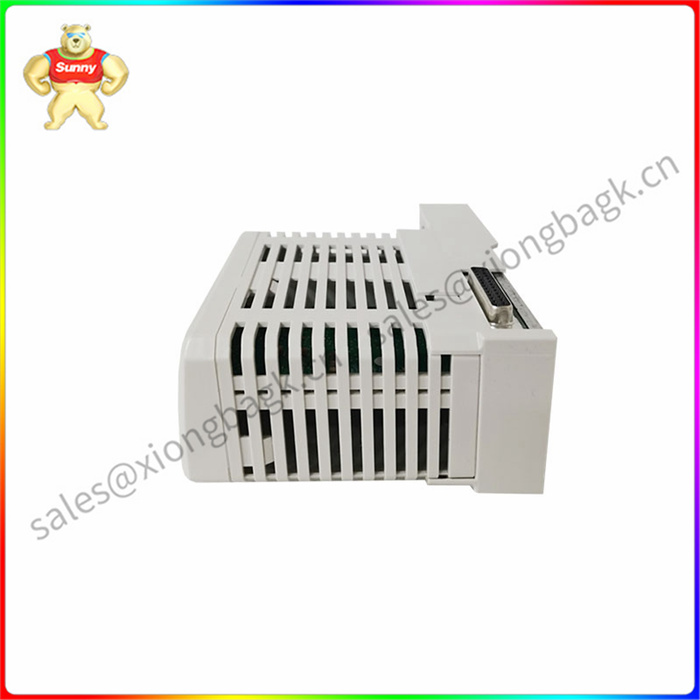

CI871K01 ABB 通信接口模块 有两个RJ45以太网连接器

CI871K01 ABB 通信接口模块 有两个RJ45以太网连接器

产品编号：编号：3BSE056767R1
ABB型号名称：CI871K01
目录说明：CI871K01 Profinet IO接口
详细描述：封装包括：
- CI871，通信接口
- TP867，底板

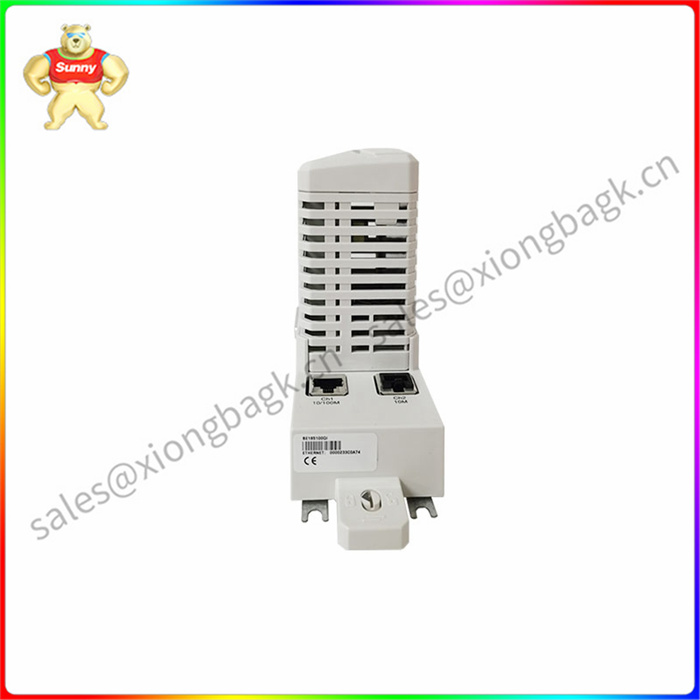

CI871A是通过以太网连接到PROFINET IO设备的AC 800M通信接口。TP867 Baseplate有两个RJ45以太网连接器，但只有支持100Mbps的CH1连接器用于PROFINET IO连接。以太网电缆必须通过以太网交换机连接到PROFINET IO网络。

CI871扩展单元包含CEX总线逻辑、通信单元和DC/DC转换器，用于通过CEX总线提供所需电压+24 V。

CI871A模块仅适用于System 800xA 6.0.3.3、6.1.1和更高版本

CI871K01 ABB 通信接口模块 有两个RJ45以太网连接器

Product Number: Number: 3BSE056767R1
ABB model name: CI871K01
Directory Description: CI871K01 Profinet I/O interface
Detailed description: Package includes:
- CI871, communication port
- TP867, mainboard

The CI871A is an AC 800M communication interface connected to PROFINET IO devices over Ethernet. The TP867 Baseplate has two RJ45 Ethernet connectors, but only the CH1 connector that supports 100Mbps is used for PROFINET IO connections. The Ethernet cable must be connected to the PROFINET IO network through an Ethernet switch.

The CI871 expansion unit contains the CEX bus logic, communication unit, and DC/DC converter to provide the required voltage +24 V over the CEX bus.

The CI871A module is only available for System 800xA 6.0.3.3, 6.1.1 and later
