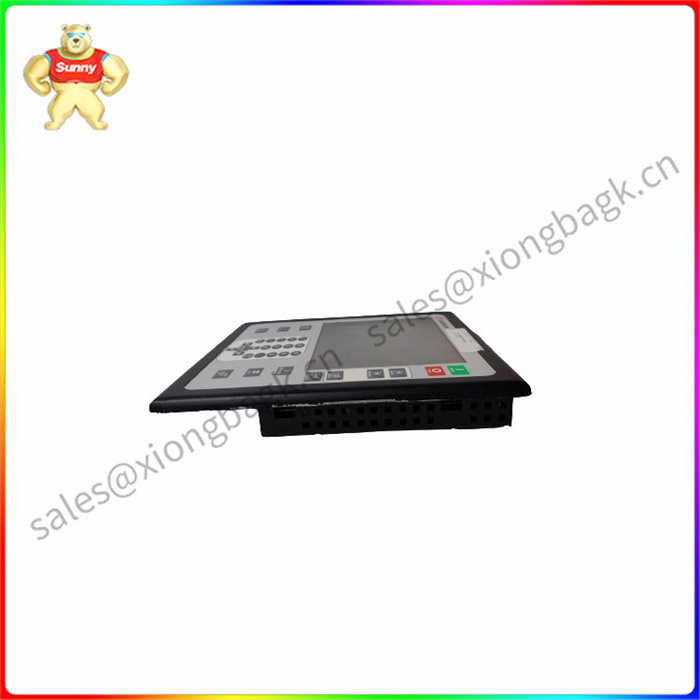

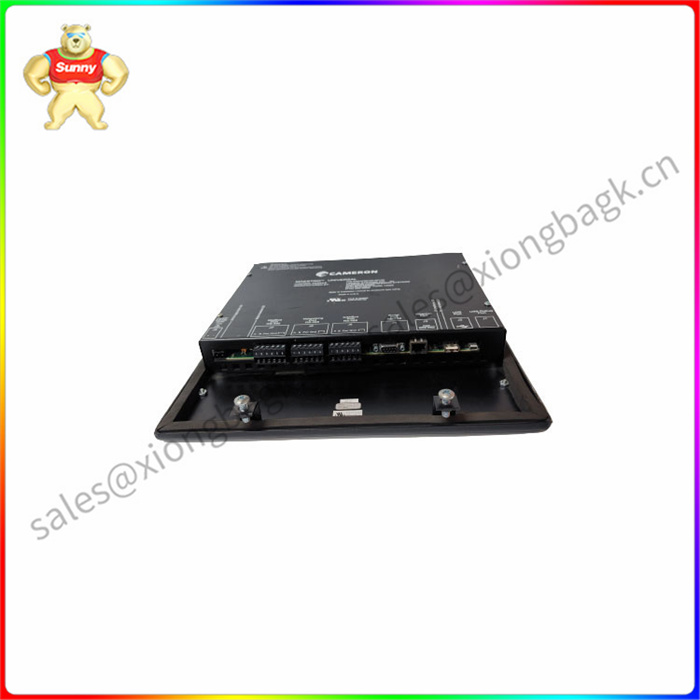

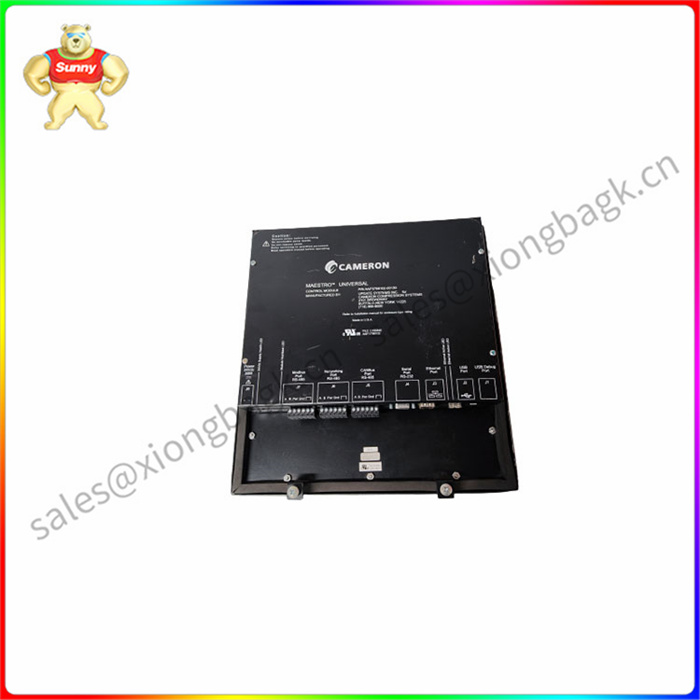

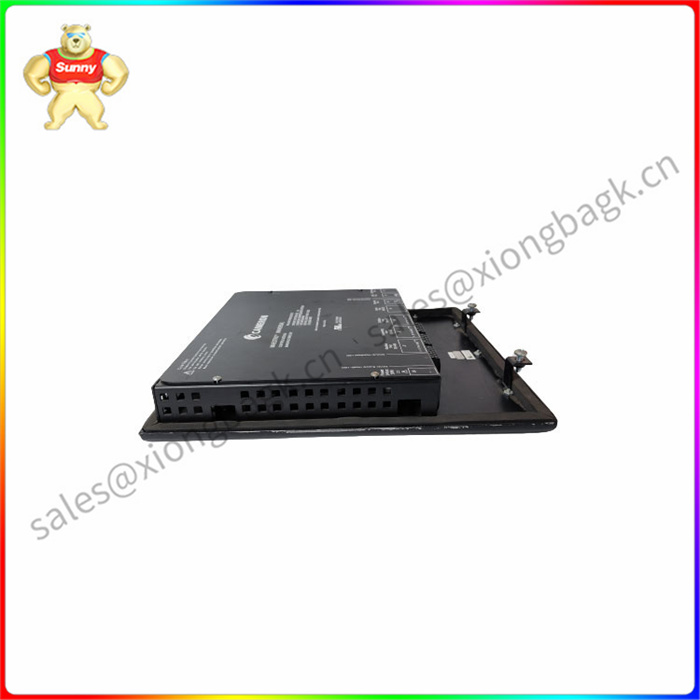

CAMERON AAP3798102-00130 通用显示压缩机控制模块

CAMERON AAP3798102-00130  通用显示压缩机控制模块

CAMERON AAP3798102-001 30通用显示压缩机控制模块便用通用接线板或接线板将接线板安装在控制外壳内，并将屏蔽电缆从接线板连接到模块接线板端子上的每个输入电路。

Y将每根电缆的屏蔽连接到接线板旁边的金面板。不要在模块端连接屏蔽(在电缆模块端切断屏蔽并用热缩管绝缘)。Y用屏蔽电缆将现场设备连接到端子板，仅在设备端接地屏蔽(在电缆的端子板端切断屏蔽并用热缩管绝缘)。此外,应尽可能缩短端子板和设备端的外露(屏蔽外部)引线的长度。直接方法Y将屏蔽电缆从现场设备(传感器、电位计等)直接连接到模块。

Y将导体连接到模块端子板上的适用螺钉上。将现场设备端的屏蔽接地，使zui小数量的导体暴露在噪声环境中。不要在模块端连接屏蔽(切断电缆模块端的屏蔽并用热缩管绝缘)。CAMERON AAP3798102-001 30TBQC不推荐用于模拟模块由于电缆屏蔽要求，端子板快速连接(TBQC)组件不建议用于模拟模块。

CAMERON AAP3798102-00130  通用显示压缩机控制模块

CAMERON AAP37998102-001 30 The Universal Display compressor control module then mounts the patch board inside the control housing with a common patch board or patch board and connects the shielded cable from the patch board to each input circuit on the module's patch board terminals.

Y Connect the shield of each cable to the gold panel next to the patch panel. Do not connect the shield at the module end (cut the shield at the cable module end and insulate it with a heat shrink tube). Y Connect the field device to the terminal board with a shielded cable, grounding the shield only at the device end (cut off the shield at the terminal board end of the cable and insulate it with a heat shrink tube). In addition, the length of the exposed (shielded external) leads at the terminal board and device end should be reduced as much as possible. Direct Method Y Connects the shielded cable directly from the field device (sensor, potentiometer, etc.) to the module.

Y Connect the conductor to the applicable screw on the module terminal board. Ground the shielding at the end of the field device so that a minimum number of conductors are exposed to noise. Do not connect the shield at the module end (cut the shield at the module end of the cable and insulate it with a heat shrink tube). CAMERON AAP3798102-001 30TBQC not recommended for analog modules Due to cable shielding requirements, the Terminal Board Quick Connection (TBQC) assembly is not recommended for analog modules.
