DS200PCCAG1ABB PCCA电源连接卡 用于其Mark V系列

DS200PCCAG1ABB PCCA电源连接卡 用于其Mark V系列

产品描述
DS200PCCAG1ABB PCCA电源连接卡用作SCR和驱动器控制电路之间的接口板。有关DS200PCCAG1ABB的信息，请参阅 GE 工业控制系统使用手册 GEI-100161A 和 GEI-100161B。该板是基准DS200PCCAG1模型的“ABB”修订版，是 G1 组编号。G1 组号意味着该 PCCA 板是可再生的，电枢电压范围为 240-630 伏。

该DS200PCCAG1ABB有四个可配置跳线，分别位于 JP1、JP2、WP3 和 WP4。当设置为特定于应用的配置时，如果缓冲电容器连接到电源桥，则这些跳线会通知驱动器，该电源桥与电压反馈通道位于同一点。跳线的具体用途如下：

JP1 选择直流电枢电压范围
JP2 与 JP1 一起使用以选择直流电枢电压范围
WP3 设置为配置缓冲器和电压反馈连接状态
WP4 还用于指示缓冲器和电压反馈通道连接

DS200PCCAG1ABB PCCA电源连接卡 用于其Mark V系列

Product description
The DS200PCCAG1ABB PCCA power connection card serves as the interface board between the SCR and the driver control circuit. For information about the DS200PCCAG1ABB, see the GE Industrial Control System User Manuals GEI-100161A and GEI-100161B. This board is an "ABB" revision of the benchmark DS200PCCAG1 model and is group G1 number. The G1 group number means that the PCCA board is renewable and has an armature voltage range of 240-630 volts.

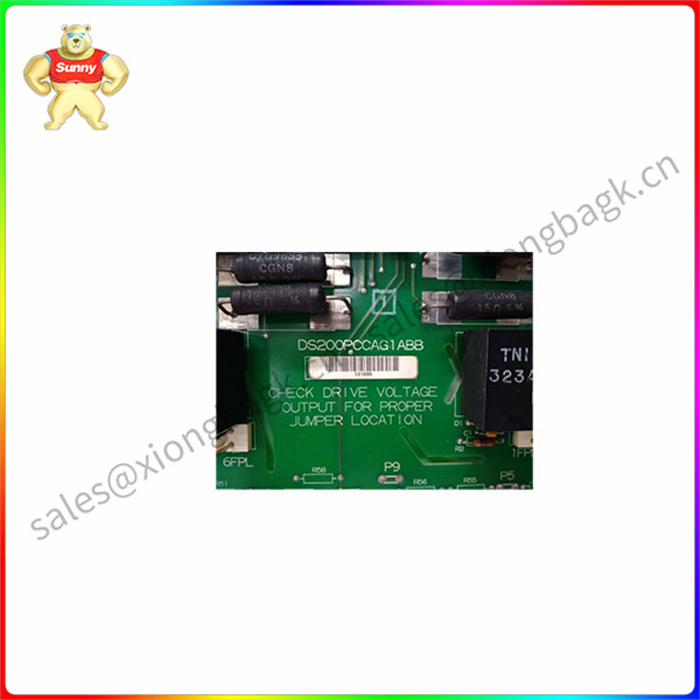

The DS200PCCAG1ABB has four configurable jumpers located at JP1, JP2, WP3 and WP4. When set to an application-specific configuration, these jumpers notify the driver if the buffer capacitor is connected to a power bridge that is located at the same point as the voltage feedback channel. The specific uses of jumpers are as follows:

JP1 Select DC armature voltage range
JP2 is used with JP1 to select the DC armature voltage range
WP3 is set to configure buffer and voltage feedback connection status
WP4 is also used to indicate buffer and voltage feedback channel connections

DS200PCCAG1ABB PCCA电源连接卡 用于其Mark V系列
