产品描述
GE驱动控制板DS200SDCCG1AGD是用于Mark V系列的驱动器的主要控制器之一。GE驱动控制板DS200SDCCG1AGD装有三个微处理器和RAM，可由多个微处理器同时访问。GE 驱动控制板DS200SDCCG1AGD上的 10 个 LED 用于在发生触发故障的错误时显示故障代码。十个 LED 排成一排，一起显示错误代码。如果没有遇到错误并且电路板运行正常，则 LED 将按从左到右的顺序点亮，每次两个 LED。

要查看DS200SDCCG1AGD上的 LED，您可以打开板柜门，找到板，目视检查 LED 并了解板的状况。但是，当您打开板柜门时必须小心，因为电路板和所有组件中都存在高电压。驱动器通电时，请勿触摸机柜中的任何东西。另外，当门打开时，不要让任何东西掉入机柜中，并在检查完成后关上门。

首 次启动主板时，必须设置配置参数，以定义主板如何处理信息和控制驱动器。有一些软件工具可用于编辑参数。这些工具可在笔记本电脑上使用。如果要同时配置多个设备，则可以创建一个配置并将相同的配置下载到多个板。

DS200SDCCG1AGD 驱动控制卡 具有三个 16 位微处理器

Product description

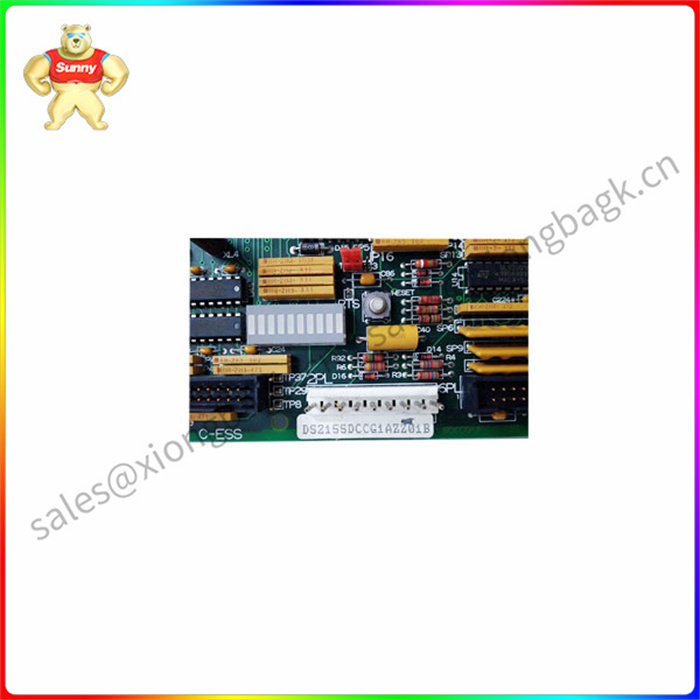

The GE Drive control board DS200SDCCG1AGD is one of the main controllers used in the Mark V series drives. The GE drive control board DS200SDCCG1AGD is equipped with three microprocessors and RAM, which can be accessed by multiple microprocessors simultaneously. The 10 leds on the GE drive control board DS200SDCCG1AGD are used to display the fault code in the event of an error that triggers the fault. Ten leds are lined up and display error codes together. If no errors are encountered and the board is functioning properly, the leds will light up in order from left to right, two leds at a time.

To view the LED on the DS200SDCCG1AGD, you can open the board door, locate the board, visually inspect the LED and understand the condition of the board. However, you must be careful when opening the board door because of the high voltage present in the board and all components. Do not touch anything in the cabinet while the driver is powered on. Also, when the door is open, do not let anything fall into the cabinet, and close the door after the inspection is completed.

When the motherboard is first started, configuration parameters must be set to define how the motherboard handles information and controls the drive. There are several software tools available for editing parameters. These tools are available on your laptop. If you want to configure multiple devices at the same time, you can create a configuration and download the same configuration to multiple boards.
