产品描述

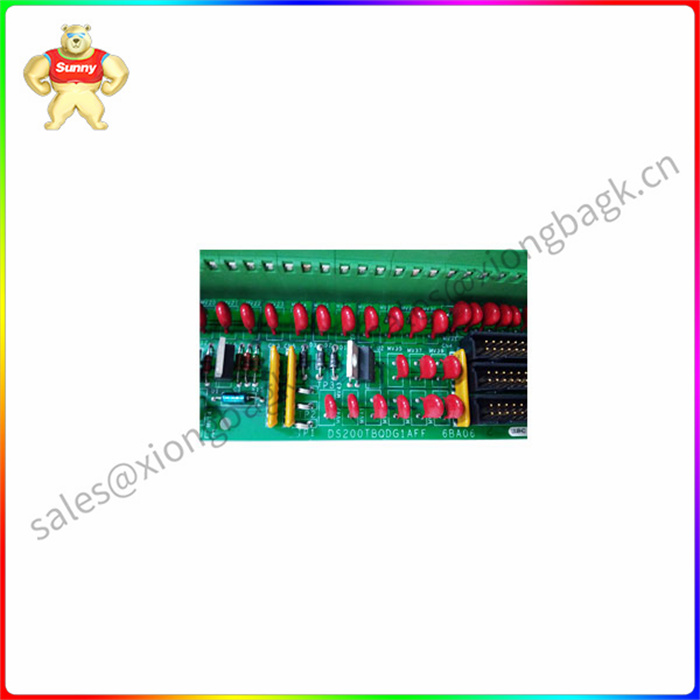

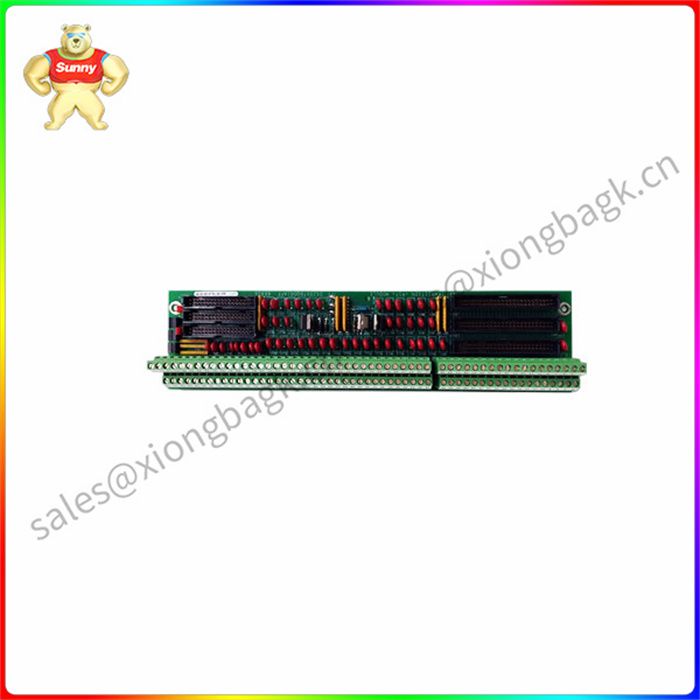

GE RST扩展模拟终端板DS200TBQDG1AFF具有2个接线端子。每个模块包含 107 个信号线端子。GE RST扩展模拟终端板DS200TBQDG1AFF还包含多个测试点、2个跳线和3个34针连接器。GE RST扩展模拟终端板DS200TBQDG1AFF装有3个测试点，合格的服务人员可以使用这些测试点来测试电路板的各个电路。测试点的 ID 为 TP1、TP2 和 TP3。在测试测试点之前，测试仪器必须符合目的，并且必须经过全面校准以测试电路的功能。连接到它的探头必须与测试仪兼容，并且仪器上的所有设置都必须适合任务。

如果测试仪器没有发现电路板的明确问题，您可以使用驱动器随附的诊断工具。驱动器上的键盘用于访问诊断工具。操作员也可以使用它来更改驱动器的行为。操作员可以停止或启动电机。操作员还可以改变电机的方向，改变电机的转速。您会发现键盘上的键被标记为指示按下该键时引起的动作。某些密钥使你能够访问用户界面，使你能够访问诊断工具。用户界面提供操作的菜单列表。

DS200TBQDG1AFF RST扩展模拟终端板 具有2个接线端子

Product description
The GE RST extended analog terminal board DS200TBQDG1AFF has two terminals. Each module contains 107 signal line terminals. The GE RST Extended analog terminal board DS200TBQDG1AFF also includes multiple test points, two jumpers, and three 34-pin connectors. The GE RST Extended Analog terminal Board DS200TBQDG1AFF is equipped with three test points that qualified service personnel can use to test individual circuits of the board. The ids of test points are TP1, TP2, and TP3. Before testing the test point, the test instrument must be fit for purpose and must be fully calibrated to test the function of the circuit. The probe connected to it must be compatible with the tester, and all Settings on the instrument must be suitable for the task.

If the test instrument does not find a clear problem with the board, you can use the diagnostic tool that comes with the drive. The keyboard on the drive is used to access diagnostic tools. It can also be used by the operator to change the behavior of the drive. The operator can stop or start the motor. The operator can also change the direction of the motor and change the speed of the motor. You will find that keys on the keyboard are marked to indicate the action caused when the key is pressed. Certain keys give you access to the user interface and enable you to access diagnostic tools. The user interface provides a menu list of actions.
