产品描述

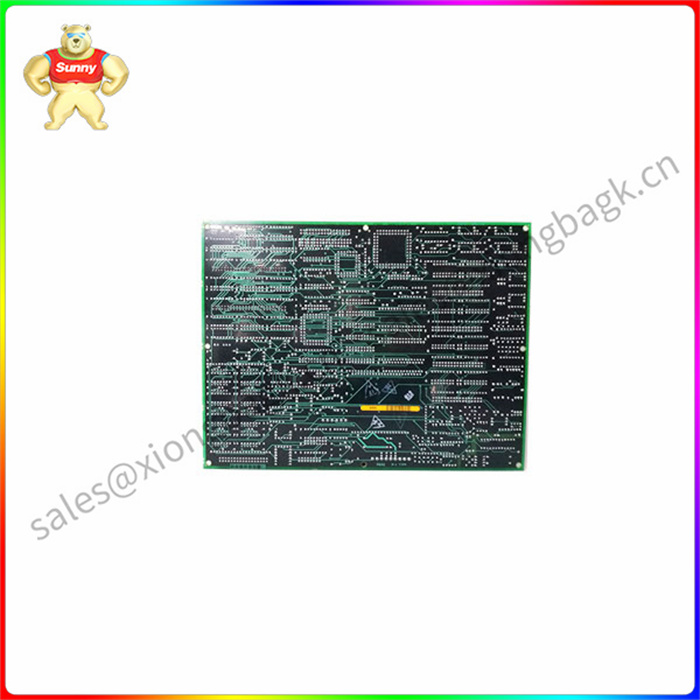

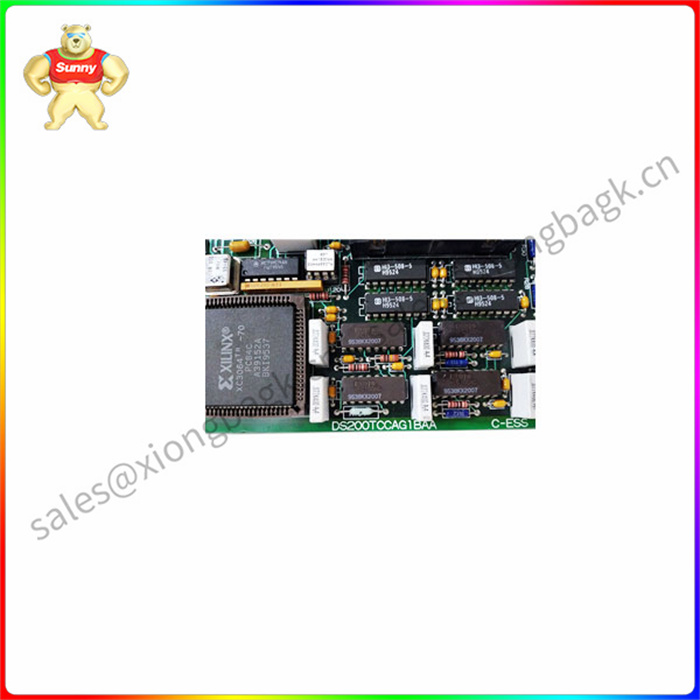

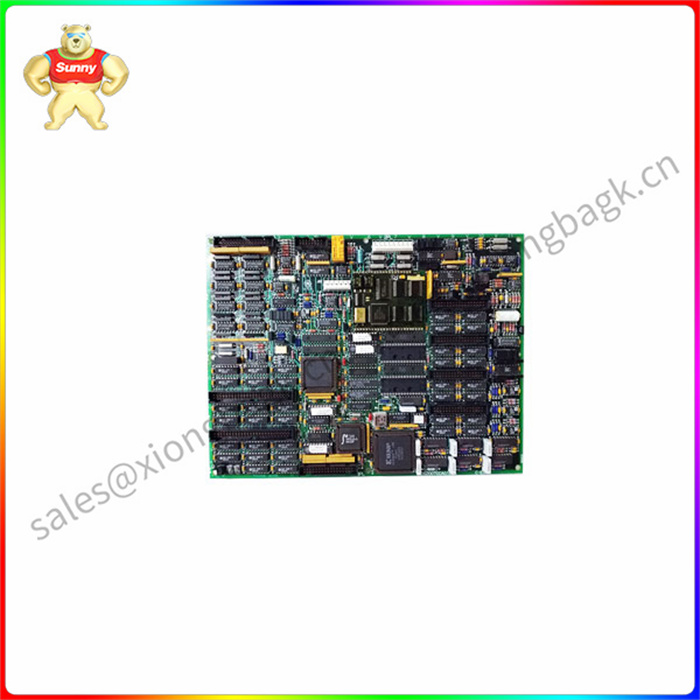

GE I/O TC2000 模拟板DS200TCCAG1BAA具有一个 80196 微处理器和多个可编程只读存储器 （PROM） 模块。它还包含一个 LED 和 2 个 50 针连接器。从电路板的侧面可以看到 LED。50 针连接器的 ID 是 JCC 和 JDD。GE I/O TC2000 模拟板上的 PROM 模块DS200TCCAG1BAA存储微处理器和可编程逻辑设备使用的指令和固件。该信息嵌入在 PROM 上，可以擦除，并将更新版本存储在 PROM 上。

PROM 模块可从集成在电路板上的插槽中拆卸。要卸下 PROM 模块，请在模块的一端下方插入一字螺丝刀，然后轻轻提起螺丝刀，模块将弹出。然后，将螺丝刀插入模块的另一端并执行相同的操作。立即将模块放入防静电袋中。

要安装 PROM 模块，请将模块与插座对齐，并避免接触模块上的引脚。按下模块进行安装。始终佩戴 EDS 保护装置，例如腕带，因为这些模块对静电很敏感。它们上的信息可能会被损坏或破坏。

DS200TCCAG1BAA I/O TC2000 模拟板卡 微处理器

Product description
The GE I/O TC2000 analog board DS200TCCAG1BAA has an 80196 microprocessor and multiple programmable read-only memory (PROM) modules. It also contains an LED and 2 50-pin connectors. The LED can be seen from the side of the board. The ID of the 50-pin connector is JCC and JDD. The PROM module DS200TCCAG1BAA on the GE I/O TC2000 analog board stores the instructions and firmware used by the microprocessor and programmable logic devices. This information is embedded in the PROM, can be erased, and an updated version is stored in the PROM.

The PROM module can be removed from a slot integrated on the board. To remove the PROM module, insert a flat-head screwdriver under one end of the module, then gently lift the screwdriver and the module will pop out. Then, insert the screwdriver into the other end of the module and do the same. Place the module in an ESD bag immediately.

To install the PROM module, align the module with the socket and avoid touching the pins on the module. Press the module to install. Always wear EDS protection, such as wristbands, as these modules are sensitive to static electricity. The information on them can be damaged or destroyed.
