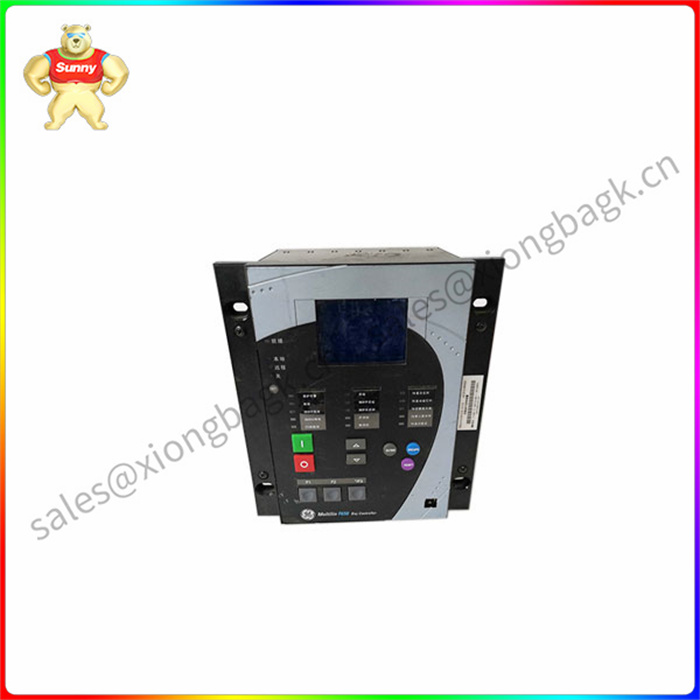

F650-B-F-G-F-2-G-1-HI-E 多线路馈线保护和间隔控制器

F650-B-F-G-F-2-G-1-HI-E 多线路馈线保护和间隔控制器

F650-B-F-G-F-2-G-1-HI-E 是通用电气为Mark VI系统创建的处理器/控制器。Mark VI平台设计用于管理燃气轮机或蒸汽轮机，由GE发布，作为Speedtronic系列的一部分。它具有HMI(人机界面)和专为运行重型涡轮机设计的软件，如CIMPLICITY图形界面。

F650-B-F-G-F-2-G-1-HI-E 是一个单独的盒装组件，前面板允许通信连接，后边缘上有两个螺钉安装，三面有格栅开口，允许空气流动。控制器设计为底座安装在机柜内。多达三个组件可以彼此相邻安装，紧凑的安排，容易服务于三重冗余系统。

F650-B-F-G-F-2-G-1-HI-E 适用于QNX操作系统。它有一个飞思卡尔8349,667 MHz处理器。电源范围180v dc~36v dc，功率12w。该板可以在0到65摄氏度的温度下使用，即使在zui高温度额定值下也不需要风扇冷却。该板可用于NFPA 1级，Div.2应用。

F650-B-F-G-F-2-G-1-HI-E 前面板有6个母口、1个USB接口和多个LED指示灯。这包括前面板左侧标有Link/Act的LED指示灯，以及面板中间标有Power,Boot,Online,Flash,DC和Diag的一列指示灯。Jack连接器用于以太网连接，允许板与其他MKVI,MKVIe或EX2100励磁控制以及维护站和操作站通信

F650-B-F-G-F-2-G-1-HI-E 多线路馈线保护和间隔控制器

The F650-B-F-G-F-2-G-1-HI-E is a processor/controller created by General Electric for the Mark VI system. The Mark VI platform, designed to manage gas or steam turbines, was released by GE as part of the Speedtronic family. It has an HMI(Human machine interface) and software designed for running heavy-duty turbines, such as the CIMPLICITY graphical interface.

The F650-B-F-G-F-2-G-1-HI-E is a separate boxed assembly with a front panel allowing communication connections, two screws mounted on the rear edge, and grille openings on three sides allowing air flow. The controller is installed in the cabinet with a base. Up to three components can be installed next to each other for a compact arrangement that easily serves triple-redundant systems.

The F650-B-F-G-F-2-G-1-HI-E is suitable for the QNX operating system. It has a Freescale 8349,667 MHz processor. Power supply range 180v dc~36v dc, power 12w. The board can be used at temperatures from 0 to 65 degrees Celsius and does not require fan cooling even at the highest temperature rating. The board can be used for NFPA Level 1, Div.2 applications.

The F650-B-F-G-F-2-G-1-HI-E front panel has six female ports, one USB port, and multiple LED indicators. This includes the front panel on the left side of the marked Link/Act of LED lights, and marked the Power panel, the Boot, Online, Flash, DC and a list of Diag light. The Jack connector is used for Ethernet connectivity, allowing the board to communicate with other MKVI,MKVIe or EX2100 excitation control as well as maintenance and operation stations

F650-B-F-G-F-2-G-1-HI-E 多线路馈线保护和间隔控制器
