一：Hydran 201Ti智能式传输器
H201Ti智能式传输器有小圆柱体机壳，通过 黄铜配接器直接与变压器的溶解气体监测阀配接。
H201Ti包括一个标准的HYDRAN®传感器，热调节系统和以微处理器为基础的电传输器。 接线端便于连接交流电源，报警触点（气体高，气体高-高和系统故障）及监管联接，还有一个模拟0-1mA的非隔离输出。也可选购4-20mA的隔离输出。还提供了电脑界面的RS-232连接器。
配有薄膜键盘和液晶显示，无须外部电脑也能使用。
二：Hydran 201Ci-1单通道控制器
H201Ci-1控制单元是一个完整的单通道控制器，与H201Ti智能式传输器一起使用。数字/模拟板处理通讯事务并提供显示、报警和模拟输出功能。
主接线端便于连接：交流电源；报警触点（气体高，气体高-高和系统故障）；可用跳线配置的非隔离模拟输出（0-1mA，4-20mA，0-1V, 0-10V）及跳线配置的隔离模拟输出。辅助接线端用作对H201Ti智能式传输器的监管联接。用于通讯的连接器：RS-232至电脑或选购的modem，RS-485连接其它H201Ci控制器。
前门安装了发光二极管数字显示屏，显示以ppm为单位的气体含量。还有两个气体报警指示灯。
三：H201Ci-C通讯控制器
H201Ci-C控制单元是一个通讯控制器。它可通过隔离监管联接，监管多达4个H201Ti智能式传输器，例如一个变压器柜（包括A,B,C相，有时还有一个辅助）。H201Ci-C通讯控制器没有显示屏，也不提供报警和模拟输出，它是H201Ti智能式传输器网络经RS-232或modem与电脑连接的专门界面。
H201Ci-C装在一个小NEMA-4X盒内，包括一块处理通讯事务的数字电路板，主接线端便于连接交流电源。用于通讯的连接器：RS-232至电脑或选购的modem（4个连接器），RS-485连接其它H201Ci控制器。

GE H201Ci-1 变压器的溶解气体监测阀配接

One: Hydran 201Ti intelligent transmitter
The H201Ti intelligent transmitter has a small cylindrical housing and is connected directly to the dissolved gas monitoring valve of the transformer via a brass adapter.
The H201Ti includes a standard HYDRAN® sensor, thermal conditioning system and microprocessor-based electrical transmitter. Terminals facilitate AC power connections, alarm contacts (high gas, high gas and system failure) and supervisory connections, and an analog 0-1mA non-isolated output. Isolated output 4-20mA is also available. An RS-232 connector for a computer interface is also provided.
Equipped with a thin film keyboard and LCD display, it can be used without an external computer.

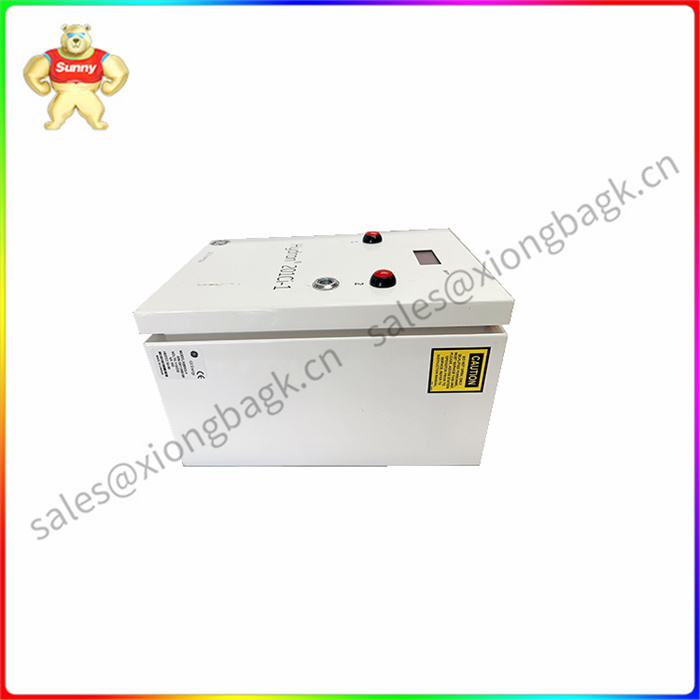

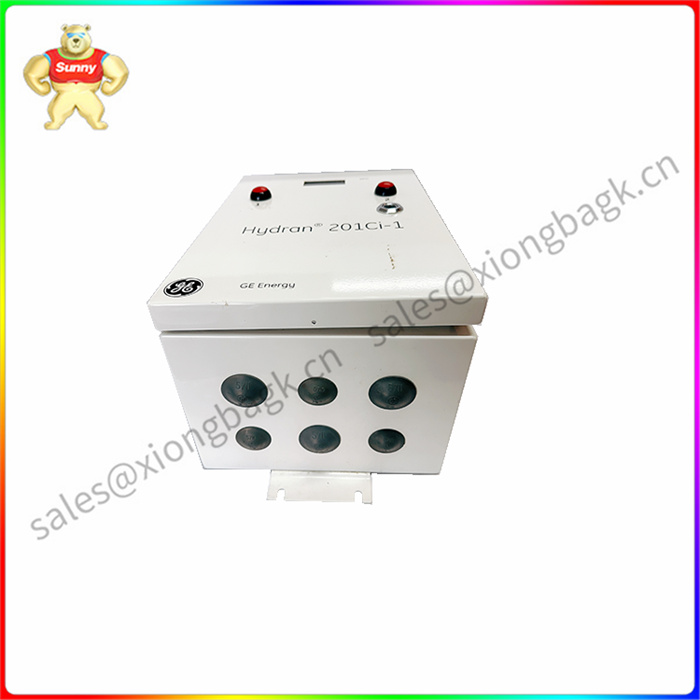

2: Hydran 201Ci-1 single-channel controller
The H201Ci-1 control unit is a complete single-channel controller that is used with the H201Ti Intelligent transmitter. Digital/analog boards handle communication transactions and provide display, alarm and analog output functions.
The main terminal is easy to connect: AC power supply; Alarm contacts (high gas, high gas - high and system failure); Non-isolated analog outputs in jumper configurations (0-1mA, 4-20mA, 0-1V, 0-10V) and isolated analog outputs in jumper configurations are available. The auxiliary terminal is used as a supervisory connection to the H201Ti intelligent transmitter. Connectors for communication: RS-232 to computer or optional modem, RS-485 to other H201Ci controllers.
The front door is fitted with a light-emitting diode digital display that displays the gas content in parts per million. There are also two gas alarm lights.
Three: H201Ci-C communication controller
The H201Ci-C control unit is a communication controller. It supervises up to four H201Ti smart transmitters, such as A transformer cabinet (including phase A,B,C, and sometimes an auxiliary), through isolated supervisory connections. The H201Ci-C communication controller has no display screen and does not provide alarm and analog output. It is a specialized interface for the H201Ti intelligent transmitter network to connect to the computer via RS-232 or modem.
The H201Ci-C is housed in a small NEMA-4X box and includes a digital circuit board for communication transactions, with a main terminal for easy AC power connection. Connectors for communication: RS-232 to computer or optional modem (4 connectors), RS-485 to other H201Ci controllers.
