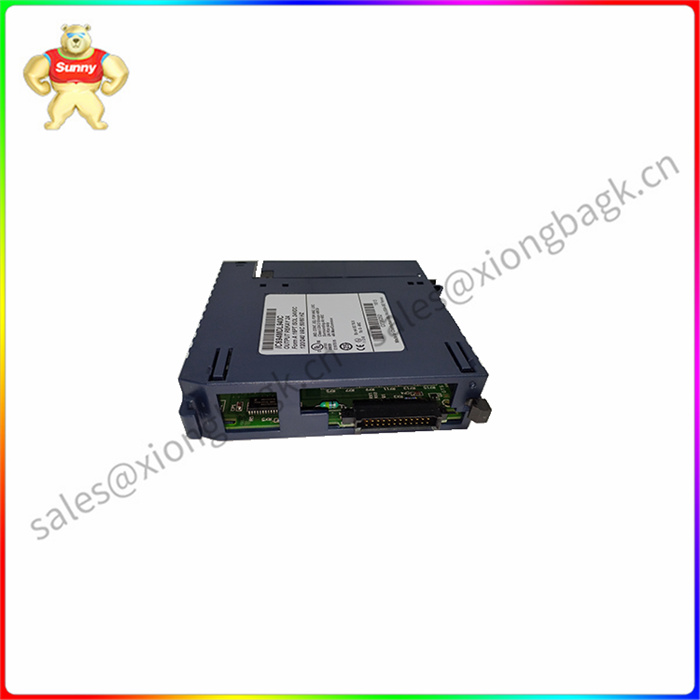

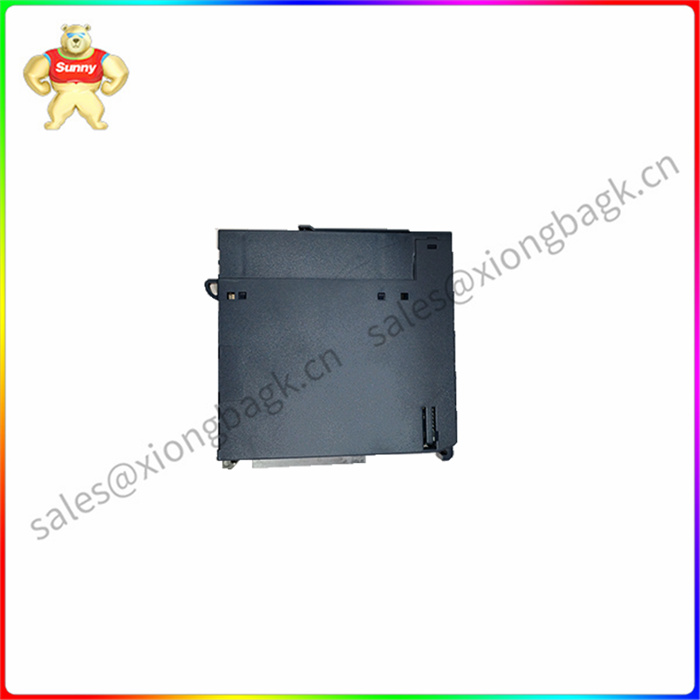

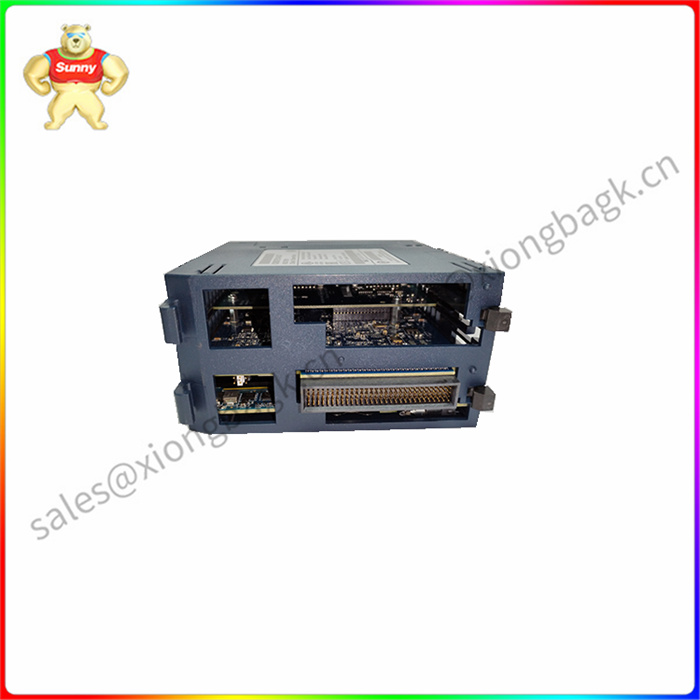

该IC694MDL940是艾默生自动化 PACSystem RX3i 系列的十六 （16） 点继电器输出模块，以前由 GE 智能平台 （GE IP） 制造。该模块具有单插槽宽度，占用背板的单个插槽，并带有四 （4） 组输出，每组有四 （4） 个继电器输出。

IC694MDL940继电器触点是常开 （N.O.） 触点或 A 型触点。每个输出触点的额定zui大负载为 2 安培的先导负载，每个输出的zui大负载为zui大值，而每个输出组设计为提供 4 安培的zui大输出电流。此外，该模块的zui小负载为 10 mA，zui大浪涌电流为 5 安培。每个继电器输出通道的响应时间为 15 ms，两个信号转换的zui大值，模块的功耗为 7 mA @ 5VDC 总线电压，背板上的继电器 24V 总线为 135 mA。这些额定功耗基于所有输出通道通电的情况。

IC694MDL940 配有十六 （16） 个状态 LED 指示灯，每个指示灯代表各个通道。通电的 LED 表示通电的输出，而断电的 LED 则表示其他的输出。该模块没有内置安装的保险丝用于通道保护，因此，用户可能需要安装外部保险丝来保护模块。

该IC694MDL940具有 250 VAC 连续电压和 1500 VAC（1 分钟隔离额定值），从现场到背板和帧到地，而通道间隔离为 250 VAC 连续;1500 VAC 持续 1 分钟。

GE Fanuc IC694MDL940继电器输出模块是专为 RX16i PACSystems PLC 系统设计的 3 通道继电器输出模块。IC694MDL940输出模块提供 16 个独立隔离的常开输出电路，用于控制电机启动器、螺线管和指示灯等输出设备。每个 IC694MDL940 输出模块输出点的zui大开关容量为 2 安培，它们分为 4 个非隔离组，每个组 4 个输出通道。IC694MDL940 输出模块的每个输出组都有一个公共输出端子（每个模块总共 4 个输出端子），每个内部继电器输出点的电源来自 24 伏直流背板电源。必须单独订购外部 AC/DC 电源并安装，以便为连接的输出现场设备供电。

IC694MDL940 输出模块的额定工作电压为 24 伏直流电或 120/240 伏交流电，工作范围为 5 至 30 伏直流电或 5 至 250 伏交流电（50/60 赫兹）。IC694MDL940 输出模块具有 1500 伏交流电的zui大点对点隔离，持续 1 分钟，在现场和背板之间以及框架接地之间具有 250 伏交流电的连续隔离。每个IC694MDL940输出模块输出电路上的zui小可能负载为 10 毫安，每个输出点上的zui大负载为 2.0 安培，而每组公共负载为 4.0 安培。IC694MDL940输出模块在 5.0 伏直流电下消耗高达 7.0 毫安的背板电流，在 24 伏直流继电器总线电压下消耗高达 135 毫安的背板电流。模块前面板上有 32 个 LED，用于指示每个输出通道的开或关状态。IC694MDL940 输出模块仅与 RX3i PacSystems CPU 兼容，可安装在 RX3i PacSystems PLC 背板的任何 I/O 插槽中。
