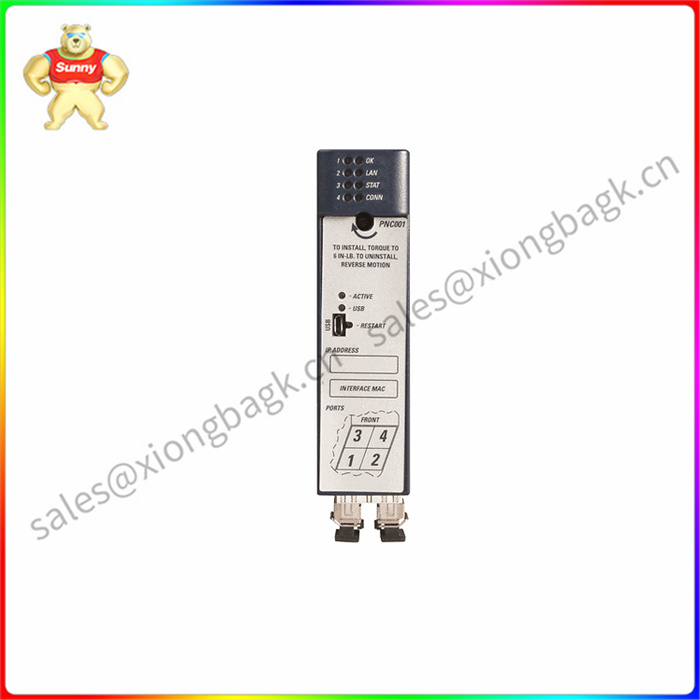

IC695PNC001是一个PROFINET控制器模块。该模块以前由通用电气智能平台(GE IP)制造，现在由艾默生自动化制造。该PROFINET控制器使RX3i CPU能够通过PROFINET网络发送和接收数据。

IC695PNC001兼容PACSystem RX3i CPU315或CPU320，固件版本为7.0或更高。该模块附带两(2)个RJ-45和两(2)个SFP插槽，带有单独销售的SFP连接器。这些PROFINET端口只分配了一个IP地址。一个CPU上zui多可以安装四(4)个IC695PNC001，并且只能安装在CPU所在的主机架上。zui多六十四(64)个I/O设备可以连接到一(1)个控制器；每个网络128个I/O设备，分布在八(8)个I/O控制器中。此外，一个网络中zui多可以安装八(8)个I/O设备。该模块的数据更新时间可配置为1 ms、2 ms、4 ms、8 ms、16 ms、32 ms、64 ms、128 ms、256 ms和512 ms。

IC695PNC001可在通电状态下拆卸和插入(RIUP)。它占用机箱的一个插槽，未安装SFP设备时消耗0.5 A，安装两(2)个SFP设备时zui大消耗1.2 A，其中一个SFP设备消耗0.35 A。在5.5 VDC下，该模块zui大消耗1.5 A。

除了嵌入式双PROFINET端口之外，该模块还带有一个微型USB连接器，用于通过命令行接口与计算机进行通信。它必须在0-60摄氏度的温度范围内工作。

IC695PNC001控制器是由GE Intelligent Platforms/GE Fanuc PAC systems制造的PROFINET控制器，是RX3i系列的一部分。该PROFINET控制器模块有助于将RX3i PacSystems系列中的控制器连接到高速PROFINET LAN。它的一些值得注意的规格包括单槽、仅支持通用背板和PROFINET 2.2通用A类网络评级。它的内部电源在5伏DC下为1.5安，在3.3伏DC的额定电压下为0.5安。IC695PNC001 PROFINET控制器模块的工作温度范围为0至60摄氏度，但根据PNC001的位置和SFP的数量，可能需要更低的温度。该模块有1个微型USB连接器，用于通过命令行界面与计算机通信。它还具有2个SFP框架和2个RJ-45端口连接器，但SFP设备可以单独购买。

IC 695 PNC 001 RX3i PAC systems ProFi net控制器或PNC的主要功能包括通过使用WinLoader软件实用程序进行固件升级。控制器还具有内置的命令行界面功能，通过使用telnet或微型USB端口提供部分配置和直接监控。它还支持环形、星形和菊花链/链式网络拓扑。IC695PNC001 PNC的其他特性包括与RX3i CPU匹配的内部时钟，用于带有时间戳的诊断。它还具有重启按钮，可手动重启PROFINET控制器，无需重启整个系统。此PNC上的USB端口仅用于设置系统和诊断目的。

IC695PNC001AF CPU能够通过PROFINET网络发送和接收数据

IC695PNC001 is a PROFINET controller module. The module was previously manufactured by General Electric Intelligent Platform (GE IP) and is now manufactured by Emerson Automation. The PROFINET controller enables the RX3i CPU to send and receive data over the PROFINET network.

The IC695PNC001 is compatible with PACSystem RX3i CPU315 or CPU320 with firmware version 7.0 or higher. The module comes with two (2) RJ-45s and two (2) SFP slots with separately sold SFP connectors. These PROFINET ports are assigned only one IP address. A maximum of four (4) IC695PNC001s can be installed on one CPU and can only be installed on the host rack where the CPU is located. Up to sixty-four (64) I/O devices can be connected to one (1) controller; There are 128 I/O devices per network, distributed among eight (8) I/O controllers. In addition, up to eight (8) I/O devices can be installed in one network. The data update time of the module can be configured as 1 ms, 2 ms, 4 ms, 8 ms, 16 ms, 32 ms, 64 ms, 128 ms, 256 ms and 512 ms.

The IC695PNC001 can be removed and inserted (RIUP) while powered on. It occupies one slot in the chassis and consumes 0.5 A when no SFP device is installed, and A maximum of 1.2 A when two (2) SFP devices are installed, of which one device consumes 0.35 A. At 5.5 VDC, the module consumes A maximum of 1.5 A.

In addition to the embedded dual PROFINET ports, the module comes with a micro-USB connector for communication with the computer via a command line interface. It must operate in a temperature range of 0-60 degrees Celsius.

The IC695PNC001 controller is a PROFINET controller manufactured by GE Intelligent Platforms/GE Fanuc PAC systems and is part of the RX3i family. The PROFINET controller module helps connect controllers in the RX3i PacSystems family to a high-speed PROFINET LAN. Some of its notable specifications include single slot, universal backplane support only, and PROFINET 2.2 Universal Class A network rating. Its internal power supply is 1.5 amps at 5 volts DC and 0.5 amps at a rated voltage of 3.3 volts DC. The IC695PNC001 PROFINET controller module operates in a temperature range of 0 to 60 degrees Celsius, but depending on the location of the PNC001 and the number of SFP's, lower temperatures may be required. The module has a micro USB connector for communicating with the computer through the command line interface. It also features 2 SFP frames and 2 RJ-45 port connectors, but SFP devices can be purchased separately.

IC 695 PNC 001 RX3i PAC systems ProFi net Controller or PNC's main functions include firmware upgrades through the use of the WinLoader software utility. The controller also has built-in command line interface capabilities that provide partial configuration and direct monitoring through the use of telnet or micro-USB ports. It also supports ring, star, and Daisy chain/chain network topologies. IC695PNC001 Other features of the PNC include an internal clock that matches the RX3i CPU for time-stamped diagnostics. It also has a restart button to manually restart the PROFINET controller without having to restart the entire system. The USB port on this PNC is used for system setup and diagnostic purposes only.
