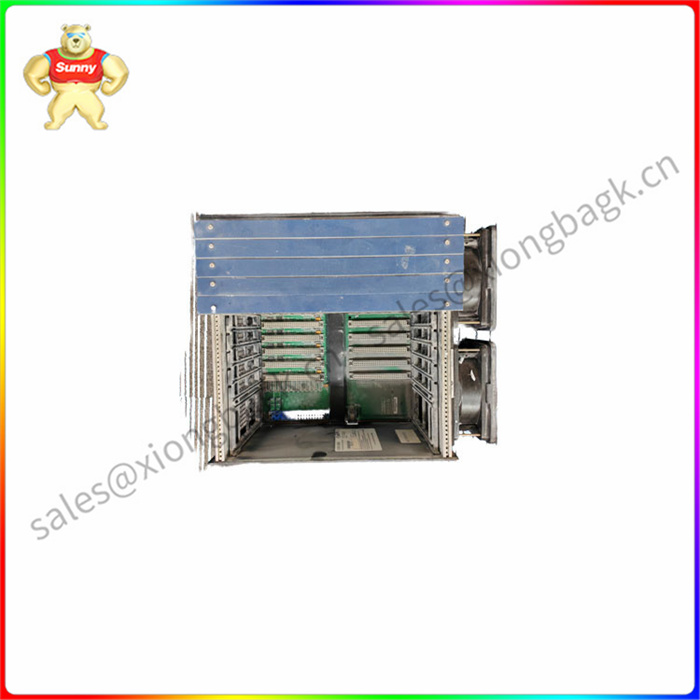

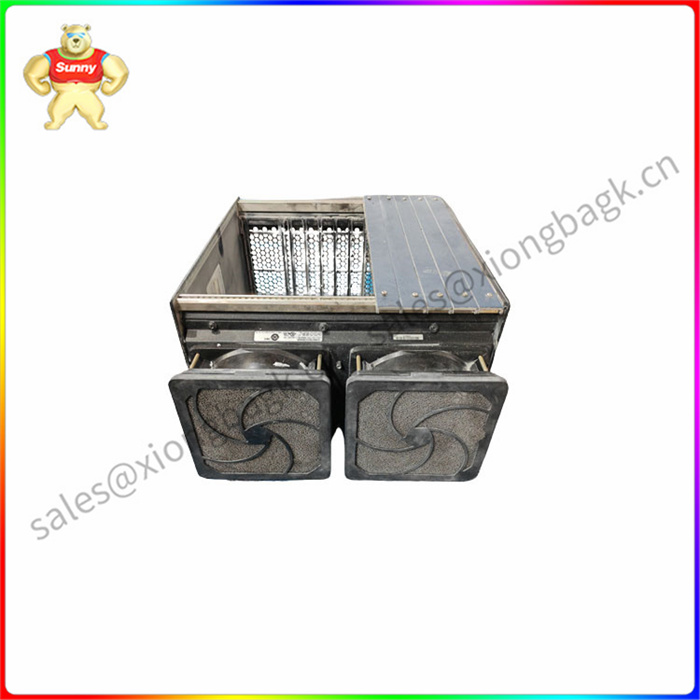

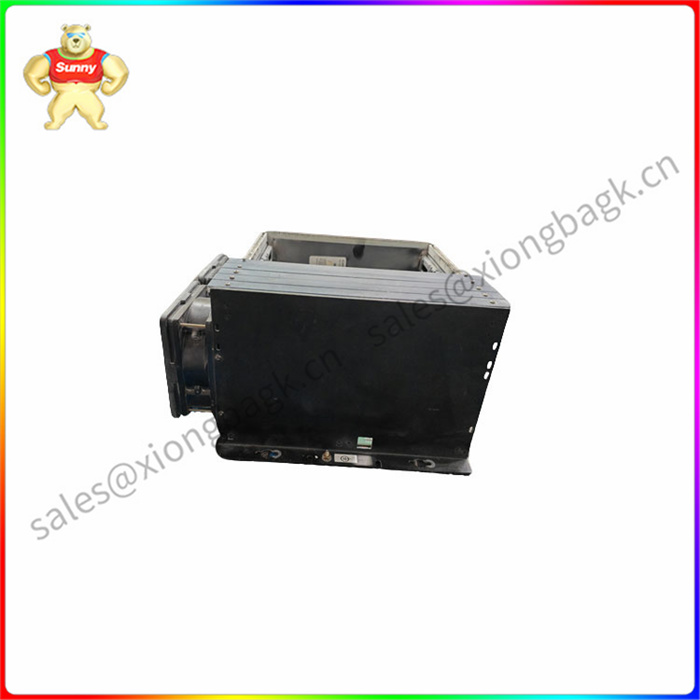

GE Fanuc IC698CHS009 Rx7i I/O 机架是用于 Rx7i PACsystem 系列的 9 插槽 I/O 机架。这款后置 I/O 机架与所有 Rx7i CPU 和 I/O 设备、90-70 系列 I/O 和 VME 模块兼容。IC698CHS009机架具有插槽感应功能，支持软件配置，无需 DIP 开关或跳线即可进行 I/O 寻址。IC698CHS009机架还提供中断确认和总线授予信号的自动菊花链连接，无需插槽跳线，并支持 Rx7i 电源插件。IC698CHS009机架有 9 个 I/O 插槽，用于安装 Rx7i CPU、I/O 模块和电源模块。编号为 1 到 8 的插槽宽度为 20 毫米，仅支持单插槽模块。插槽 9 宽 40.6 毫米，支持双宽模块。插槽 1 编号仅保留给 CPU，“插槽 0”宽 61 毫米，用于电源模块。

IC698CHS009 机架支持 100 瓦和 350 瓦额定电源。使用 100 瓦电源时，IC698CHS009 机架的zui大额定电流为 20 安培（5 伏直流电）和 1 安培（-12 伏直流电）之一，使用 350 瓦电源时，它的zui大额定电流为 60 安培（5 伏直流电）和 4 安培（-12 伏直流电）。IC698CHS009机架支持软件配置。I/O 插槽寻址是使用 Machine Edition Logic Developer-PLC 软件实现的。IC698CHS009机架支持使用可选的风扇组件，IC698CPE020/CRE020 组件，以增强冷却效果。IC698CHS009 Rack 是一种开放式设计设备，需要标准的 IP 54 外壳才能在任何工厂车间提供保护。它的工作温度范围为 0 至 60 摄氏度，总尺寸为 283 x 320 x 190 毫米。

IC698CHS009  插槽 I/O 机架可通过软件进行配置

The GE Fanuc IC698CHS009 Rx7i I/O rack is a 9-slot I/O rack for the Rx7i PACsystem series. This rear I/O rack is compatible with all Rx7i CPU and I/O devices, as well as the 90-70 series I/O and VME modules. The IC698CHS009 rack features slot sensing and software configuration for I/O addressing without DIP switches or jumpers. The IC698CHS009 rack also provides automatic daisy-chain connections for interrupt acknowledgement and bus grant signals without the need for slot jumps, and supports Rx7i power plugins. The IC698CHS009 rack has nine I/O slots for installing the Rx7i CPU, I/O module, and power module. Slots numbered 1 to 8 are 20 mm wide and support only single-slot modules. Slot 9 is 40.6 mm wide and supports dual-width modules. Slot 1 is reserved for cpus only. Slot 0 is 61 mm wide and is used for power modules.

The IC698CHS009 rack supports 100 watt and 350 Watt power ratings. The IC698CHS009 frame has a maximum rated current of one of 20 amps (5 volts DC) and 1 amp (-12 volts DC) when using a 100 watt power supply, and it has a maximum rated current of 60 amps (5 volts DC) and 4 amps (-12 volts DC) when using a 350 Watt power supply. The IC698CHS009 rack supports software configuration. I/O slot addressing is implemented using Machine Edition Logic Developer-PLC software. The IC698CHS009 rack supports the use of an optional fan assembly, the IC698CPE020/CRE020 assembly, for enhanced cooling. The IC698CHS009 Rack is an open design device that requires a standard IP 54 housing to provide protection on any factory floor. It operates in a temperature range of 0 to 60 degrees Celsius and has a total size of 283 x 320 x 190 mm.
