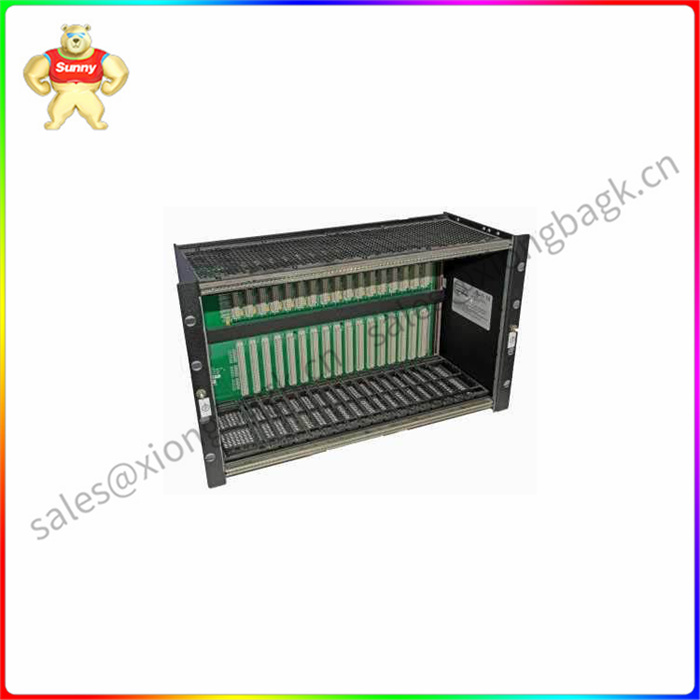

GE Fanuc IC698CHS117 RX7i I/O 机架专为 Rx7i PACsystem 系列而设计。IC698CHS117机架是一款壁挂式 18 插槽 I/O 机架，专为 VME64 背板系统和高 级电源而设计。该 I/O 机架的带宽强度是标准 VME 背板系统的 4 倍，因此可提供更快的 I/O 吞吐量。IC698CHS117机架支持 GE Fanuc Rx7i CPU、Rx7i I/O 模块、90-70 系列 I/O 和所有标准 VME 模块。它具有用于机架式 I/O 模块的插槽感应功能，并配置了编程/配置软件，无需 DIP 开关和跳线配置。所有 Rx7i 机架均采用开放式设计，必须使用 IP 54 标准外壳或具有更高等级的外壳，以便在工业环境中安全使用。


IC698CHS117机架支持高功率 Rx7i 电源和 Rx7i 交流电源插件。它的额定功率为 350 瓦，额定电流为 -12 伏时为 4 安培，12 伏直流输入时为 12 安培，5.0 伏直流输入时为 60 安培。IC698CHS117 机架具有 18 个 I/O 插槽，zui多支持 15 个单宽 I/O 模块（不含任何双宽模块）、8 个双宽模块或双宽和单宽模块的组合。IC698CHS117 模块的插槽编号为 1 到 18，平均插槽宽度为 0.8 英寸。插槽 1 始终保留给 CPU。带有嵌入式以太网卡的双宽 RX7i CPU 使用插槽 1 和 2。插槽宽度为 2.6 英寸的插槽 0 用于电源模块。IC698CHS117机架使用基于 Windows 且高度直观的 CIMPLICITY Machine Edition Logic Developer-PLC 软件进行配置，该软件为用户提供图形界面来配置 I/O 寻址。

IC698CHS117C RX7i I/O 机架专为 Rx7i PACsystem 系列

The GE Fanuc IC698CHS117 RX7i I/O rack is designed for the Rx7i PACsystem family. The IC698CHS117 rack is a wall-mounted 18-slot I/O rack designed for VME64 backplane systems and advanced power supplies. The I/O rack offers up to four times the bandwidth intensity of a standard VME backplane system, thus delivering faster I/O throughput. The IC698CHS117 rack supports GE Fanuc Rx7i cpus, Rx7i I/O modules, 90-70 series I/O, and all standard VME modules. It has slot sensing for rack-mounted I/O modules and is configured with programming/configuration software without DIP switches and jumper configuration. All Rx7i racks have an open design and must use an IP 54 standard housing or have a higher grade housing to be safe for use in industrial environments.


The IC698CHS117 rack supports high-power Rx7i power supplies and Rx7i AC power plug-ins. It has a power rating of 350 watts and a current rating of 4 amps at -12 volts, 12 amps at 12 volts DC input, and 60 amps at 5.0 volts DC input. The IC698CHS117 rack has 18 I/O slots and supports up to 15 single-width I/O modules (without any dual-width modules), eight dual-width modules, or a combination of dual-width and single-width modules. The slot numbers of the IC698CHS117 module are 1 to 18, and the average slot width is 0.8 inches. Slot 1 is always reserved for the CPU. Double-width RX7i cpus with embedded Ethernet cards use slots 1 and 2. Slot 0 with a width of 2.6 inches is used for power modules. The IC698CHS117 rack is configured using the Windows-based and highly intuitive CIMPLICITY Machine Edition Logic Developer-PLC software, which provides users with a graphical interface to configure I/O addressing.
