IC698RMX016 PACSystem RX7i 冗余内存交换模块

IC698RMX016 PACSystem RX7i 冗余内存交换模块

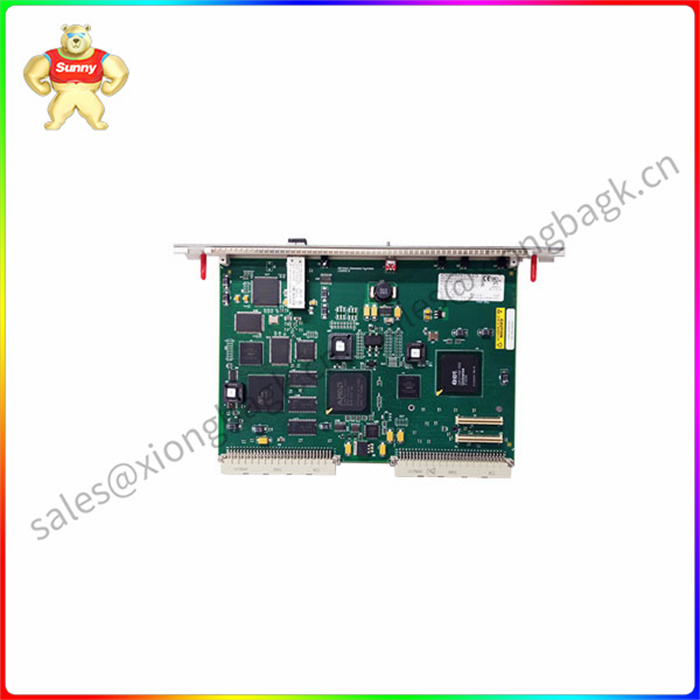

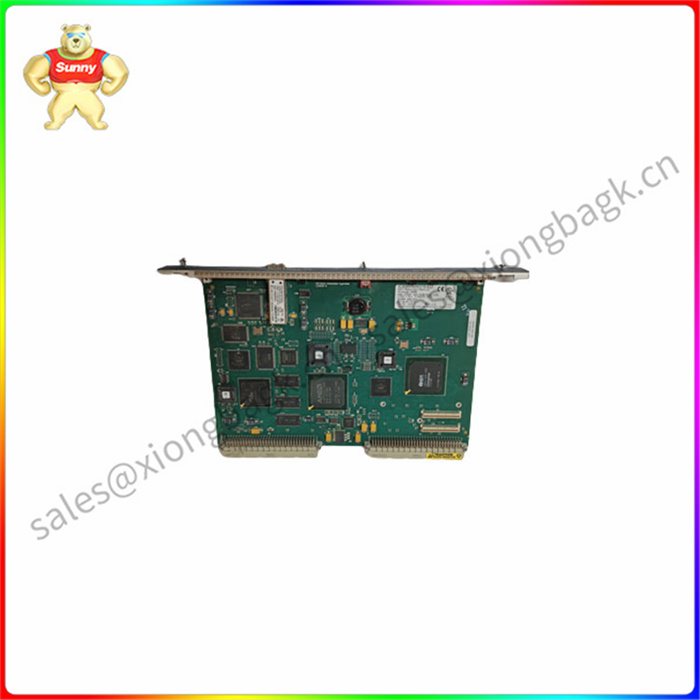

该IC698RMX016是冗余存储器交换模块 （RMX），与 PACSystem RX7i 可编程自动化控制器系列一起使用。该模块主要用作反射存储器上的节点或合作伙伴中央处理器 （CPU） 模块之间的存储器链路，这些模块在高关键应用中形成冗余对。该模块安装在 RX7i 背板的主机架上，建议安装在机架 3 或 4 中以启用中断优先级，但是，该模块也支持主机架中的其他插槽。

该IC698RMX016配备 16 MB 静态动态随机存取存储器 （SDRAM）。该模块由来自背板的 5 VDC 电压、1.8 安培电压供电。该模块尺寸为 6.299 英寸（宽）x 9.187 英寸（高）。冗余内存交换模块的可用连接器是符合 IEC 61754-20 的 LC 型光纤连接器。连接器材料为锆陶瓷套圈，zui大插入损耗为 0.35 DB，回波损耗为 -30 DB。该模块的工作温度范围为 -20 摄氏度至 85 摄氏度。

在上电期间，模块处于未配置状态。IC698RMX016将一直运行，直到主机 RX7i CPU 模块向模块发送适当的硬件配置。对于通用反射操作，可以使用各种参数配置硬件配置，例如节点 ID、冗余传输模式、恶意主站、网络内存偏移和中断启用，但是，在冗余操作中，上述参数由 CPU 自动设置，无法配置。

Rx7i PACsystem IC698RMX016模块是GE Fanuc制造的冗余存储器Xchange模块或RMX模块。它作为 RX7i 系统和 CPU 之间链路的反射存储器上的一个节点运行。它的工作电压额定值为 5 伏直流电，额定电流为 1.8 安培。它带有 16 MB SDRAM 用户内存。它尺寸紧凑，尺寸为宽 6.299 英寸，高 9.187 英寸。该模块每个网络zui多使用 256 个节点。IC698RMX016通信模块使用4到64字节的动态数据包大小，这些数据包大小由Xchange模块控制。

IC698RMX016通信模块使用高速光纤网络进行数据交换。该模块的前部配有 8 个不同的 LED 指示灯和一个可用于授权角色切换的拨动开关。角色切换用于更改模块的角色，有助于防止意外激活。它有 2 个开和关位置。它有一个弹簧加载机制，默认情况下处于关闭状态。IC698RMX016模块需要固件版本为 2.00 的 PacSystem 进行安装。它使用逻辑开发人员 PC 软件进行编程。通信模块的连接器采用锆陶瓷套圈制造，zui大插入损耗为0.35dB。它的回波损耗为-30 dB。模块中有一个光收发器，它有 2 个 LC 光端口。有一个用于发射器的 TX 端口和一个用于接收器的 RX 端口。

IC698RMX016 PACSystem RX7i 冗余内存交换模块

The IC698RMX016 is a redundant memory switching module (RMX) that is used with the PACSystem RX7i programmable automation controller family. The module is primarily used as a memory link between nodes on reflective memory or partner central processing unit (CPU) modules that form redundant pairs in high-critical applications. The module is installed in the chassis of the RX7i backplane and is recommended to be installed in rack 3 or 4 to enable interrupt priority, however, the module also supports other slots in the chassis.

The IC698RMX016 is equipped with 16 MB of static dynamic random access memory (SDRAM). The module is powered by 5 VDC and 1.8 amps from the backplane. The module measures 6.299 inches (width) x 9.187 inches (height). The available connectors for redundant memory switch modules are LC type optical fiber connectors according to IEC 61754-20. The connector material is zirconium ceramic ring with a maximum insertion loss of 0.35 DB and return loss of -30 DB. The module has an operating temperature range of -20 degrees Celsius to 85 degrees Celsius.

During the power-on, the module is not configured. The IC698RMX016 will run until the host RX7i CPU module sends the appropriate hardware configuration to the module. For general reflection operations, hardware configurations can be configured using various parameters, such as node ID, redundant transport mode, malicious master, network memory offset, and interrupt enable, but in redundant operations, the above parameters are automatically set by the CPU and cannot be configured.

The Rx7i PACsystem IC698RMX016 module is a redundant memory Xchange module or RMX module manufactured by GE Fanuc. It operates as a node on the reflected memory of the link between the RX7i system and the CPU. It has an operating voltage rating of 5 volts DC and a rated current of 1.8 amps. It comes with 16 MB of SDRAM user memory. It is compact in size, measuring 6.299 inches wide and 9.187 inches high. This module uses a maximum of 256 nodes per network. The IC698RMX016 communication module uses dynamic packet sizes of 4 to 64 bytes, which are controlled by the Xchange module.

The IC698RMX016 communication module uses a high-speed fiber optic network for data exchange. The front of the module is equipped with eight different LED indicators and a toggle switch that can be used to authorize role switching. Role switching is used to change the role of a module and helps prevent accidental activation. It has 2 on and off positions. It has a spring-loaded mechanism that is turned off by default. The IC698RMX016 module requires PacSystem with firmware version 2.00 to install. It is programmed using Logic Developer PC software. The connectors of the communication module are made of zirconium ceramic rings with a maximum insertion loss of 0.35dB. It has a return loss of -30 dB. There is an optical transceiver in the module which has 2 LC optical ports. There is a TX port for the transmitter and an RX port for the receiver.

IC698RMX016 PACSystem RX7i 冗余内存交换模块
