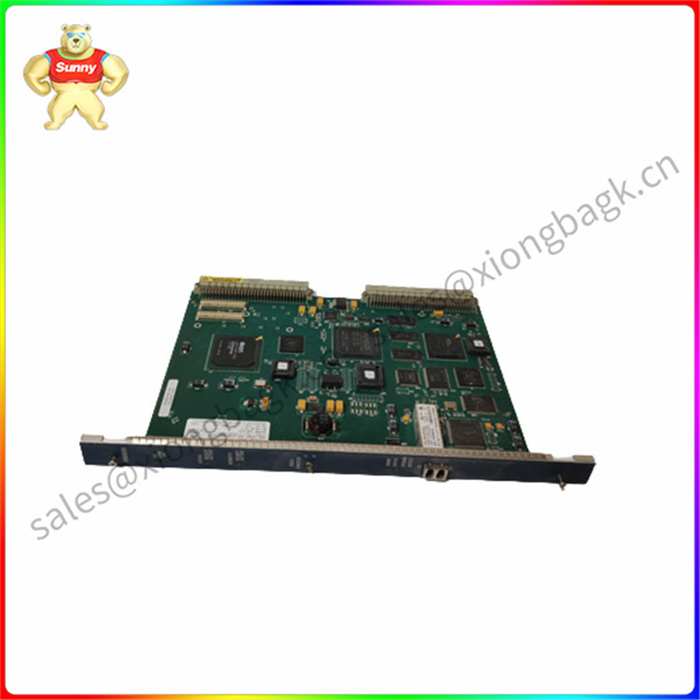

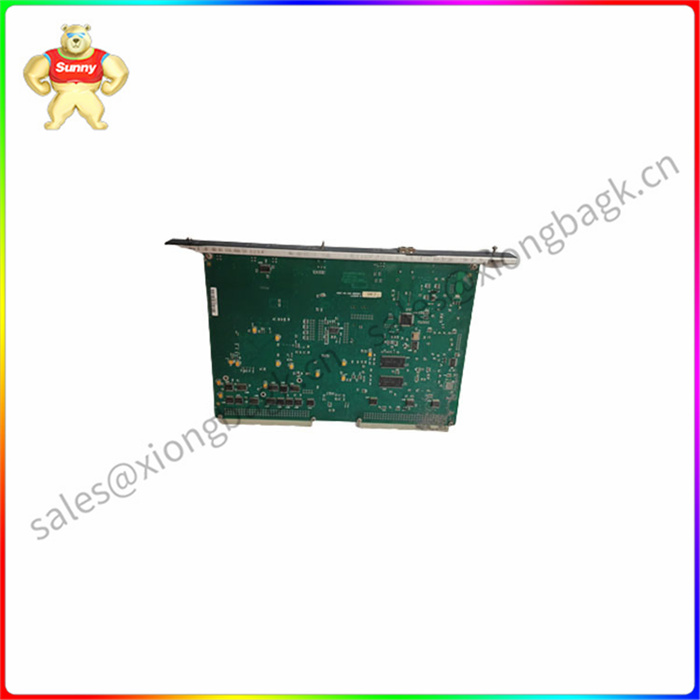

GE IC698RMX016-ED 冗余存储器交换模块

GE IC698RMX016-ED 冗余存储器交换模块

IC698RMX016-ED是一个冗余内存交换模块(RMX ),用于PACSystem RX7i可编程自动化控制器系列。该模块主要用作反射存储器上的节点，或者在高关键应用中形成冗余对的伙伴中央处理器(CPU)模块之间的存储器链接。该模块

安装在RX7i背板的主机架上，建议安装在机架3或4中，以启用中断优先级。但是，该模块也支持主机架中的其他插槽。

IC698RMX016-ED配有16 MB静态动态随机存取存储器(SDRAM)。该模块由背板提供的5 VDC安培电压供电。该模块的尺寸为6.299英寸(宽)x 9.187英寸(高)。冗余内存交换模块的可用连接器是符合IEC 61754-20标准的LC型光

纤连接器。连接器材料为锆陶瓷插芯，zui大插入损耗为0.35 DB，回波损耗为-30 DB。该模块的工作温度范围为-20摄氏度至85摄氏度。

通电期间，模块处于未配置状态。IC698RMX016会一直运行，直到主机RX7i CPU模块向该模块发送了适当的硬件配置。对于通用反射操作，硬件配置可以配置各种参数，如节点ID、冗余传输模式、无管理主机、网络内存偏

移和中断使能。但是，在冗余操作中，上述参数由CPU自动设置，无法进行配置。

Rx7i PACsystem IC698RMX016-ED模块是阿格发那科制造的冗余内存交换模块或RMX模块。它作为RX7i系统和CPU之间链路的反射存储器上的一个节点运行。它的额定工作电压为5伏DC，额定电流为1.8安培。它配有16 MB

SDRAM用户内存。它的尺寸很小，宽度为6.299英寸，高度为9.187英寸。该模块每个网络zui多使用256个节点。IC698RMX016通信模块使用范围从4到64字节的动态数据包大小，这些大小由Xchange模块控制。

IC698RMX016-ED通信模块使用高速光纤网络进行数据交换。模块的前部带有8个不同的LED指示灯和一个可用于授权角色开关的拨动开关。角色开关用于改变模块的角色，有助于防止意外激活。它有两个开关位置。它有一个弹

簧加载机制，默认情况下处于关闭状态。IC698RMX016模块需要安装固件版本为2.00的PacSystem。它使用logic developer PC软件进行编程。通信模块的连接器通过使用锆陶瓷套圈制造，并且它具有zui大0.35 dB的插入损

耗。它的回波损耗为-30 dB。模块中有一个光收发器，它有2个LC光端口。发射机有一个TX端口，接收机有一个RX端口。

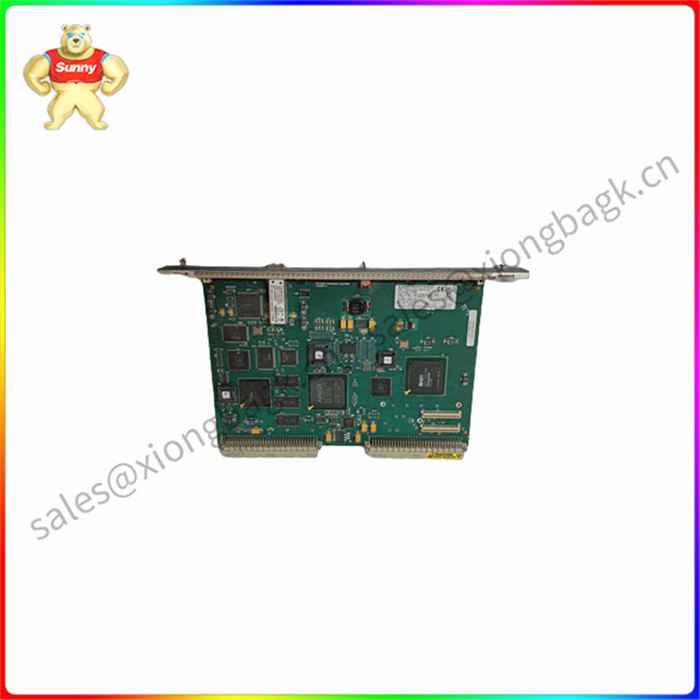

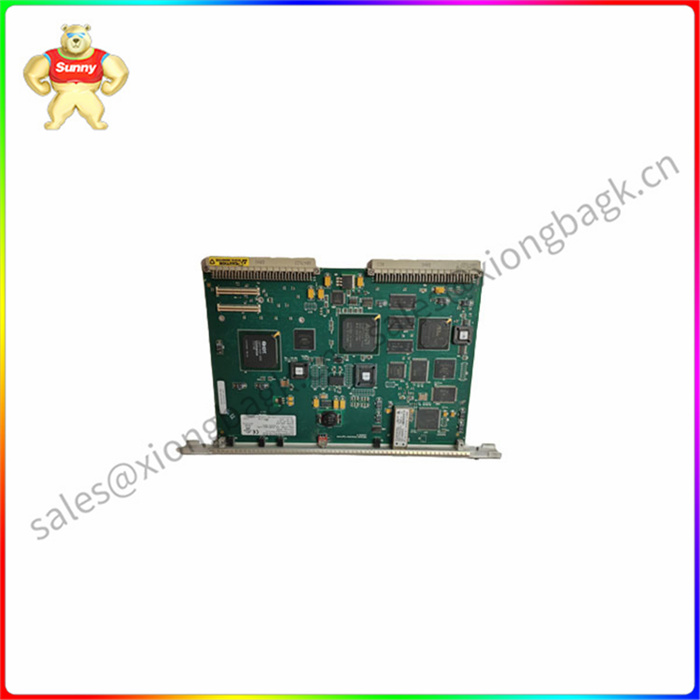

GE IC698RMX016-ED 冗余存储器交换模块

The IC698RMX016-ED is a redundant memory switch module (RMX) for the PACSystem RX7i programmable automation controller family. The module is primarily used as a node on reflective memory, or as a memory link between partner central processing unit (CPU) modules that form redundant pairs in highly critical applications. This module

Install it on the host rack of the RX7i backplane. You are advised to install it in rack 3 or 4 to enable interrupt priority. However, the module also supports other slots in the mainframe.

The IC698RMX016-ED comes with 16 MB of static dynamic random access memory (SDRAM). The module is powered by 5 VDC amperes provided by the backplane. The module measures 6.299 inches (width)x 9.187 inches (height). The available connectors for redundant memory switch modules are LC-type optical according to IEC 61754-20 standards

Fiber connector. The connector material is zirconium ceramic core with a maximum insertion loss of 0.35 DB and return loss of -30 DB. The module has an operating temperature range of -20 degrees Celsius to 85 degrees Celsius.

During power-on, the module is not configured. The IC698RMX016 runs until the host RX7i CPU module sends the appropriate hardware configuration to the module. For general reflection operations, the hardware configuration can be configured with various parameters, such as node ID, redundant transport mode, no management host, and network memory bias

The transfer and interrupt function was enabled. However, in redundant operations, the preceding parameters are automatically set by the CPU and cannot be configured.

The Rx7i PACsystem IC698RMX016-ED module is a redundant memory switch module or RMX module manufactured by Agfanuc. It operates as a node on the reflected memory of the link between the RX7i system and the CPU. It has a rated operating voltage of 5 volts DC and a rated current of 1.8 amps. It comes with 16 MB

SDRAM User memory. Its size is small, with a width of 6.299 inches and a height of 9.187 inches. This module uses a maximum of 256 nodes per network. The IC698RMX016 communication module uses dynamic packet sizes ranging from 4 to 64 bytes, which are controlled by the Xchange module.

The IC698RMX016-ED communication module uses a high-speed fiber optic network for data exchange. The front of the module has eight different LED indicators and a toggle switch that can be used to authorize character switches. Role switches are used to change the role of a module and help prevent accidental activation. It has two switch positions. It has a bounce

The spring loading mechanism is turned off by default. The IC698RMX016 module requires PacSystem with firmware version 2.00. It is programmed using logic developer PC software. The connector of the communication module is manufactured by using zirconium ceramic ferrules, and it has a maximum insertion loss of 0.35 dB

Cost. It has a return loss of -30 dB. There is an optical transceiver in the module which has 2 LC optical ports. The transmitter has a TX port and the receiver has an RX port.

GE IC698RMX016-ED 冗余存储器交换模块
