is 200 DTH 1ab是为Mark VI系统创建的阿格组件。Mark VI是以Speedtronic系列名称发布的燃气/蒸汽轮机管理系统。自20世纪60年代以来，该系列一直用于涡轮机管理。Mark VI具有以太网通信能力，并在硬件和软件中包含板载诊断(极限检查)。

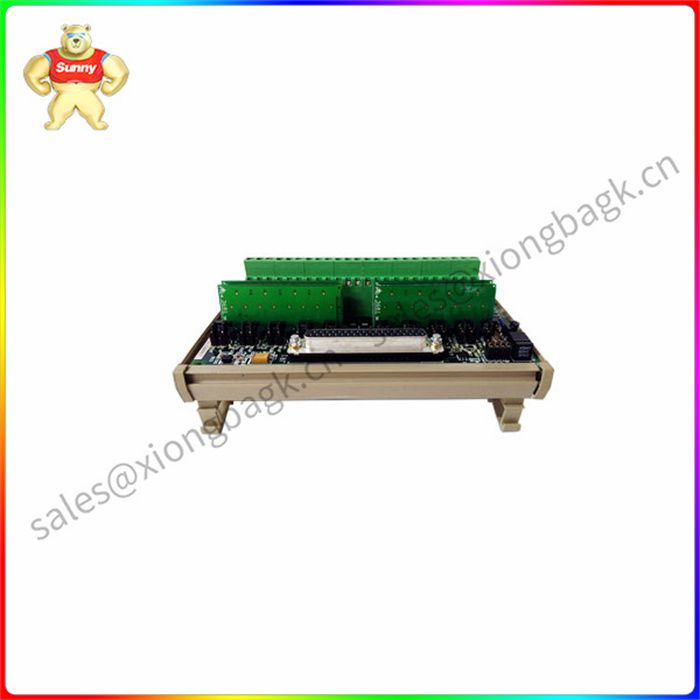

is 200 DTH 1a bb是一款单工模拟输入/输出端子板。这是一款用于模拟信号的紧凑型输入板。该板安装在一个塑料支架上，允许PCB以DIN导轨方式安装。该板有十路模拟输入和两路模拟输出。输出为0-20mA，但其中一个可以通过重新配置跳线配置为0-200mA电流。

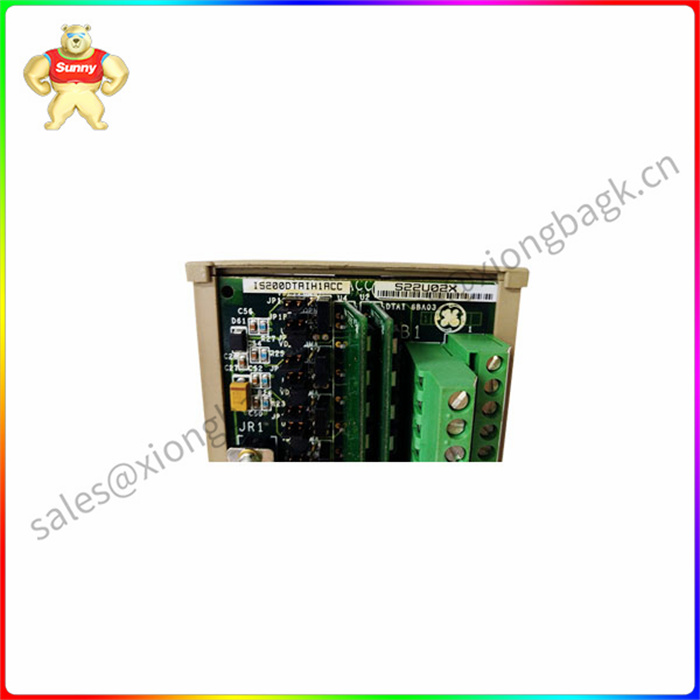

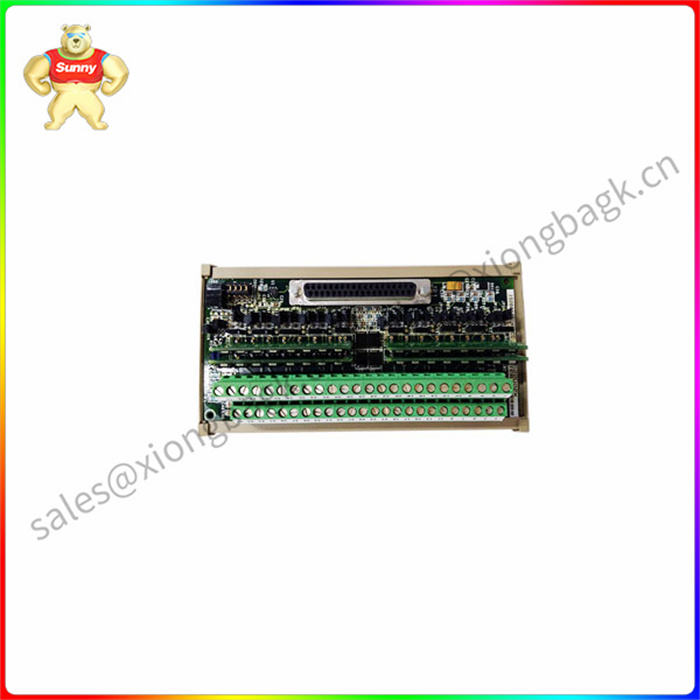

is 200 DTH 1ab配有一个带锁扣的37针连接器。这是JR1。该板有一个端子板(TB1 ),带有48个螺纹接头。该端子板永 久安装在电路板上。#18 AWG线的屏蔽双绞线通常用在端子板上。请注意，螺钉43/44被指定为接地(SCOM)连接。接地线应尽可能短。该板有21个跳线开关；这些标记为JP1A/B-JP10A/B (20)加JP0。该板还包括各种电容、电阻和集成电路，以及四个子面板。板上的跳线用于配置电流和电压。

IS200DTAIH1ACC 输出端子板 用于模拟信号的紧凑型输入板
The is 200 DTH 1ab is an AG component created for the Mark VI system. The Mark VI is a gas/steam turbine management system released under the Speedtronic family name. The series has been used for turbine management since the 1960s. The Mark VI has Ethernet communication capabilities and includes onboard diagnostics (limit checks) in both hardware and software.

The is 200 DTH 1a bb is a simplex analog input/output terminal board. This is a compact tablet for analog signals. The board is mounted on a plastic bracket, allowing the PCB to be mounted on a DIN rail. The board has ten analog inputs and two analog outputs. The output is 0-20mA, but one of them can be configured to 0-200mA current by reconfiguring the jumper.

The is 200 DTH 1ab comes with a 37-pin connector with a latch. This is JR1. The board has one terminal board (TB1) with 48 threaded connectors. The terminal board is permanently installed on the circuit board. #18 AWG wire shielded twisted pair is usually used on the terminal board. Note that screws 43/44 are designated for ground (SCOM) connections. The ground cable should be as short as possible. The board has 21 jumper switches; These are labeled JP1A/B-JP10A/B (20) plus JP0. The board also includes various capacitors, resistors, and integrated circuits, as well as four sub-panels. Jumpers on the board are used to configure current and voltage.
