产品描述
IS200EPSMG1ABB是GE为其Mark VI系列制造的励磁电源模块。MKVI 是 Speedtronic 燃气轮机/蒸汽轮机管理系统系列的一部分，自 1969 年 MKI 发布以来，GE 一直在生产该系统。MKVI 包括一个基于 PC 的操作员界面或 HMI，它使用以太网连接与控制模块中的主处理器卡进行通信。操作员界面允许从一个位置查看所有模拟和数字数据，包括事件和警报的时间标签。

IS200EPSMG1ABB的功能是将 EPDM 的 125 VDC 转换为控制系统所需的电压。这包括 +5 VDC、+/-15 VDC 和 +24 VDC。

IS200EPSMG1ABB内置前面板，包括七个 LED 灯。这些灯标记为 P5、P15、N15、P24A、P24B、N24B 和 P70。前面板还包括 GE 徽标和主板识别号。

IS200EPSMG1ABB由几个大型组件构成。这包括一个框架中的变压器和一个标有 Bicron B9309 0912 的大型电感器。还有另一个较小的电感线圈 （L2）。该板有五个装有散热器的晶体管。它们位于前面板的正后方。该板在其表面安装了额外的四个散热器元件。

该IS200EPSMG1ABB同时使用高压电解电容器和轴向电解电容器。单个圆盘电容器位于电路板的右上角。其他电容器也位于电路板上。该板同时使用金属膜和碳复合电阻器。电路板表面有九个保险丝。其中大多数位于左上象限，但保险丝七位于电路板的右侧。该板还包括多个集成电路、TP 测试点和两个背板连接器。

IS200EPSMG1ABB 模拟输入模块 8个输入通道
Product description
The IS200EPSMG1ABB is an exciting power module manufactured by GE for its Mark VI series. The MKVI is part of the Speedtronic family of gas turbine/steam turbine management systems that GE has been producing since the release of the MKI in 1969. The MKVI includes a PC-based operator interface, or HMI, which uses an Ethernet connection to communicate with the main processor card in the control module. The operator interface allows all analog and digital data, including time tags for events and alerts, to be viewed from one location.

The function of the IS200EPSMG1ABB is to convert the EPDM's 125 VDC into the voltage required for the control system. This includes +5 VDC, +/-15 VDC, and +24 VDC.

The IS200EPSMG1ABB has a built-in front panel that includes seven LED lights. These lights are labeled P5, P15, N15, P24A, P24B, N24B, and P70. The front panel also includes the GE logo and motherboard identification number.

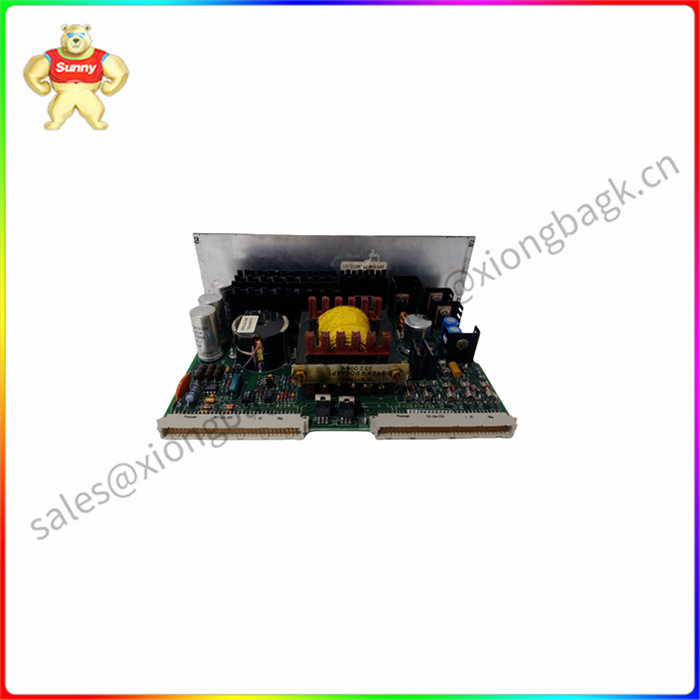

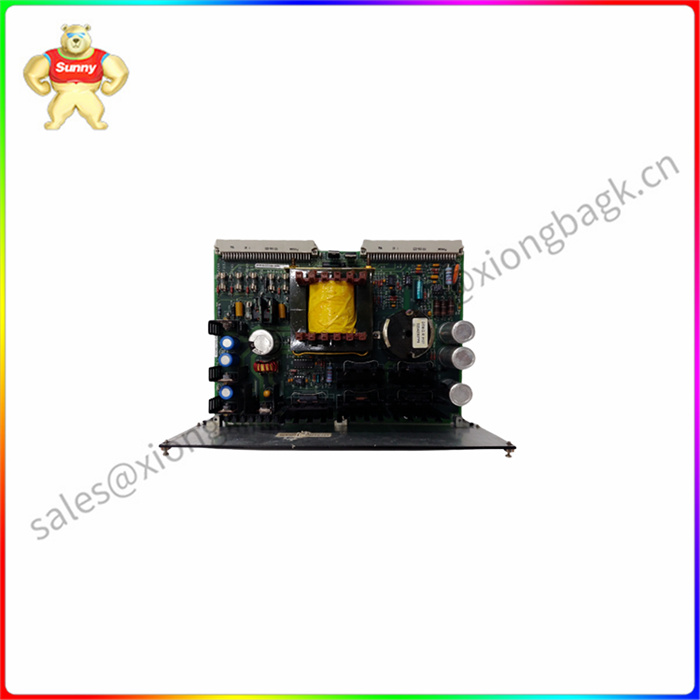

The IS200EPSMG1ABB consists of several large components. This includes a transformer in the frame and a large inductor labeled Bicron B9309 0912. There is also another smaller inductor (L2). The board has five transistors with heat sinks. They are located directly behind the front panel. The board has four additional radiator elements mounted on its surface.

The IS200EPSMG1ABB uses both high-voltage electrolytic capacitors and axial electrolytic capacitors. A single disc capacitor is located in the top right corner of the board. Other capacitors are also located on the circuit board. The plate uses both a metal film and a carbon composite resistor. There are nine fuses on the board surface. Most of these are located in the upper left quadrant, but the fuse seven is located on the right side of the board. The board also includes multiple integrated circuits, TP test points, and two backplane connectors.
