IS200JPDHG1A 是GE Mark VI印刷电路板
产品描述
IS200JPDHG1A是通用电气作为Mark VI系统的一部分创建的PCB组件。Mark VI 由 GE 发布，作为其用于燃气轮机和蒸汽轮机管理的 Speedtronic 系列的一部分，该系列始于 1960 年代 Mark I 的发布。Mark VI 通常由 125Vdc 电池系统供电。但是，它可以由 120/240VAC 电源供电，使用带有隔离变压器的电源转换器将功率整流至 125Vdc。对于燃气轮机，点火变压器需要单独的电源，短路保护为20A或更低。
IS200JPDHG1A是高密度配电卡。 该板为每个 I/O 包提供单独的受保护控制电源。可以使用 J1 和 J1X 连接器将多个IS200JPDHG1A板菊花链连接在一起;但是，完成此操作后，输入电流不能超过第 一 个 JPDH J1 插头的额定值。该IS200JPDHG1A可用于一些危险场所，包括 1 类 2 区、1 类 2 区和 ATEX。用户必须遵守 UL/ATEX HazLoc 的接线和维护要求。

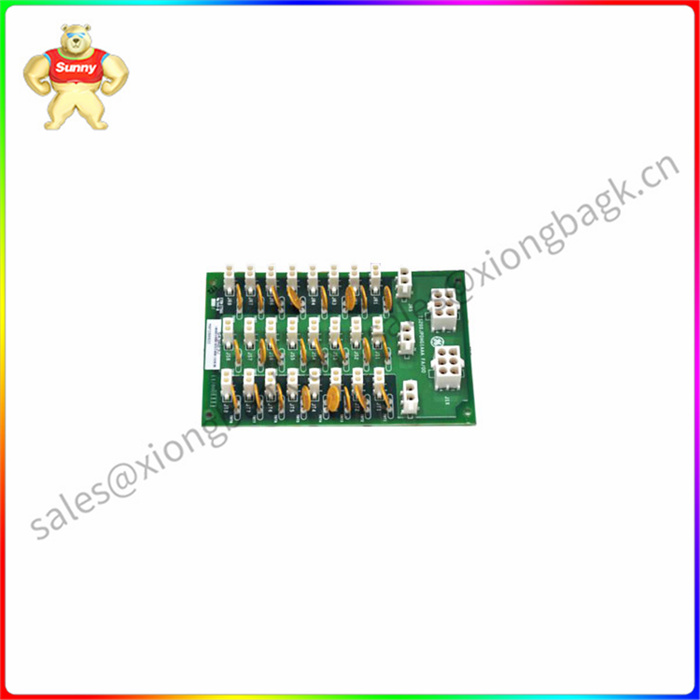

IS200JPDHG1A有 24 个压敏电阻，分成三排，每排 8 个。它有 24 个 2 位插头，分为三排，每排 8 个（JR1-JR8、JS1-JS8、JT1-JT8）。该板还具有另外三个 2 位插头，分别标记为 JR5、JS5 和 JT5。
IS200JPDHG1A 是GE Mark VI印刷电路板
Product description
The IS200JPDHG1A is a PCB component created by General Electric as part of the Mark VI system. The Mark VI was released by GE as part of its Speedtronic line for gas turbine and steam turbine management, which began with the release of the Mark I in the 1960s. The Mark VI is typically powered by a 125Vdc battery system. However, it can be powered from a 120/240VAC supply, using a power converter with an isolation transformer to rectifying the power to 125Vdc. For gas turbines, the ignition transformer requires a separate power supply with short circuit protection of 20A or less.
The IS200JPDHG1A is a high density power distribution card. The board provides a separate protected control power supply for each I/O packet. Multiple IS200JPDHG1A boards can be Daisy chained together using J1 and J1X connectors; However, after this is done, the input current cannot exceed the rating of the first JPDH J1 plug. The IS200JPDHG1A can be used in a number of hazardous locations, including Class 1 Zone 2, Class 1 Zone 2 and ATEX. Users must comply with UL/ATEX HazLoc wiring and maintenance requirements.
The IS200JPDHG1A has 24 varistors divided into three rows of 8 each. It has 24 2-position plugs, divided into three rows of 8 each (JR1-JR8, JS1-JS8, JT1-JT8). The board also has three additional 2-position plugs, labeled JR5, JS5, and JT5.
IS200JPDHG1A 是GE Mark VI印刷电路板
