产品描述

IS200STCIH6AED是用于GE Mark VI系列涡轮机控制系统的DIN导轨接触端子板。

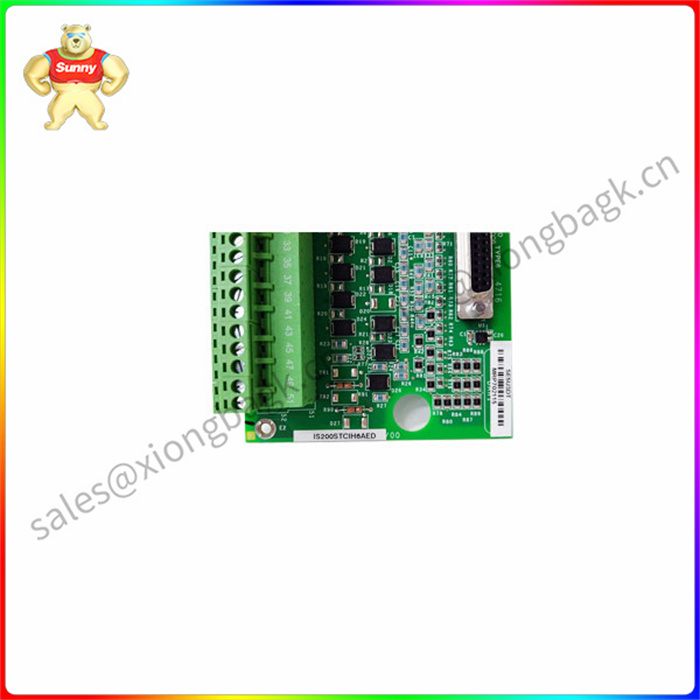

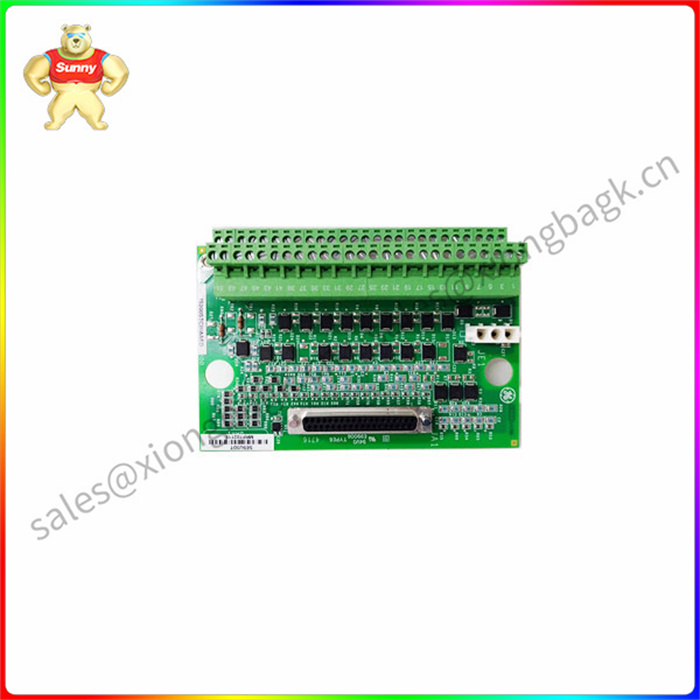

IS200STCIH6AED是具有许多不同组件的印刷电路板(PCB)。板的左右两侧有两个大的镍尺寸工厂钻孔。在电路板的左下角和右下角还有两个工厂钻的加固端子孔。底部孔旁边是两个带有数字标记的接线板。顶部的一组标记为1-51，只有奇数，而底部的一组标记为2-52，所有偶数。板的顶部中心边缘有一个RS-232 37针母端口。该板的部件号标签位于板的右下侧角和工厂大钻孔之间。在电路板左侧的顶部端子条上方有一个白色3针跳线。该PCB还包含2个晶体管、91个电阻器、27个二极管、

IS200STCIH6AED是一块PCB，应小心处理。应实施抗静电程序以防止由于静电的积聚和释放而对电路板造成任何类型的损坏。在可以安装之前，电路板应保存在防静电袋或盒子中。安装IS200STCIH6AED时，应佩戴防静电腕带。为了帮助安装，建议记下这块要更换的旧板上的接线和电缆位置。

IS200STCIH6AED GE Mark VI DIN导轨接触端子板
Product description

The IS200STCIH6AED is a DIN rail contact terminal board for GE Mark VI series turbine control systems.

The IS200STCIH6AED is a printed circuit board (PCB) with many different components. The left and right sides of the board have two large nickel-sized factory holes. There are also two factory drilled reinforced terminal holes in the lower left and right corners of the board. Next to the bottom hole are two patch panels with digital markings. The top group is labeled 1-51, with only odd numbers, while the bottom group is labeled 2-52, with all even numbers. The top center edge of the board has an RS-232 37-pin female port. The board's part number label is located between the lower right corner of the board and the large factory borehole. There is a white 3-pin jumper above the top terminal strip on the left side of the board. The PCB also contains 2 transistors, 91 resistors, 27 diodes,

The IS200STCIH6AED is a PCB and should be handled with care. Antistatic procedures should be implemented to prevent any type of damage to the board due to the buildup and release of static electricity. The circuit board should be kept in an anti-static bag or box until it can be installed. When installing an IS200STCIH6AED, wear an ESD wrist strap. To help with installation, it is recommended to note down the wiring and cable locations on the old board to be replaced.
