IS200TBAIH1CCC 是一款高性能的模拟端子板

IS200TBAIH1CCC 是一款高性能的模拟端子板

产品描述

IS200TBAIH1CCC GE模拟端子板用于连接并管理模拟信号。

特征：

具有高性能

高可靠性

易于安装

IS200TBAIH1CCC是一款高性能的模拟端子板，主要用于连接模拟信号设备。它具有良好的抗干扰能力和高的信号传输效率。

IS200TBAIH1CCC GE模拟端子板是一种高性能的端子板，它可以方便地连接各种模拟设备，如传感器，执行器等。它具有高度的可靠性和稳定性，是工业自动化设备中不可或缺的一部分。IS200TBAIH1CCC是称为模拟端子板的设备。该PCB或印刷电路板是通用电气Mark VI系列的一部分。通用电气创建的Mark VI和Mark系列中的其他系列是为了控制和自动化燃气轮机和蒸汽轮机的过程。

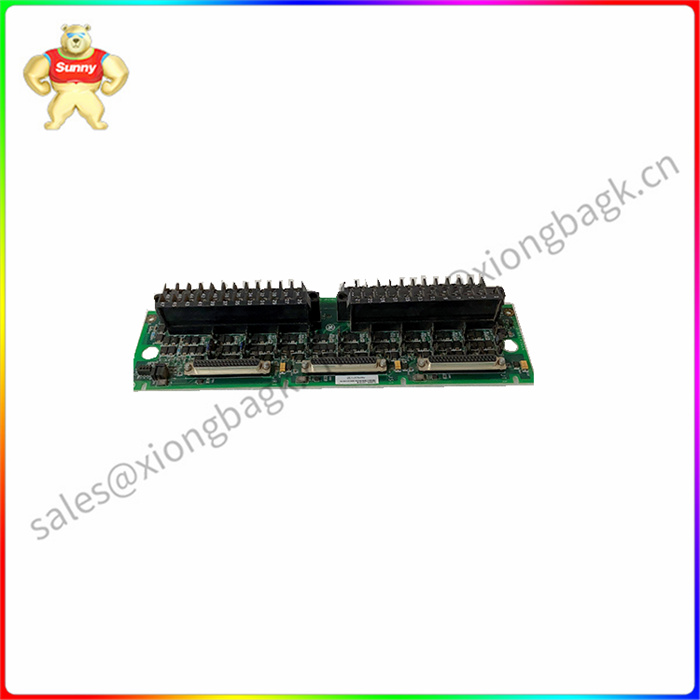

IS200TBAIH1CCC印刷电路板是一个非常长且纤薄的设备。IS200TBAIH1C的左半部分由两(2)个黑色端子块占据。每个端子块zui多可包含二十四个端子，这些端子为立方体形状并由银金属制成。这些终端组合起来总共有四十八个终端，标记为一(1)到四十八(48)。IS200TBAIH1C右边缘的大部分区域由三(3)个中型连接器端口占据。这些连接器端口垂直排列在IS200TBAIH1CCC的右侧。长长的电子元件在IS200TBAIH1C的中心垂直排列。十(10)个电位器或可变电阻器均匀分布在IS200TBAIH1C的中心。四(4)个附加电位器组合在一起位于IS200TBAIH1CCC的右下角。至少九(9)个黑色小晶体管沿着IS200TBAIH1C中心部分的右侧排列。IS200TBAIH1CCC的中心还放置了一系列至少二十(20)个红色跳线。每个跳线用于将至少两(2)个小金属跳线销连接在一起。IS200TBAIH1C的中间部分也覆盖着许多黑色的小矩形二极管。

应用领域

IS200TBAIH1CCC GE模拟端子板广泛适用于需要处理模拟信号的各种工业领域，如制造、能源和自动化。

IS200TBAIH1CCC 是一款高性能的模拟端子板
Product description

IS200TBAIH1CCC GE Analog terminal board Connects and manages analog signals.

Features:

With high performance

High reliability

Easy to install

IS200TBAIH1CCC is a high-performance analog terminal board, mainly used to connect analog signal devices. It has good anti-interference ability and high signal transmission efficiency.

The IS200TBAIH1CCC GE analog terminal board is a high-performance terminal board, which can be easily connected to various analog devices, such as sensors, actuators, etc. It has a high degree of reliability and stability, and is an indispensable part of industrial automation equipment. The IS200TBAIH1CCC is a device called an analog terminal board. This PCB or printed circuit board is part of the GE Mark VI series. Ge created the Mark VI and other series in the Mark family to control and automate the processes of gas and steam turbines.

The IS200TBAIH1CCC printed circuit board is a very long and thin device. The left half of the IS200TBAIH1C is occupied by two (2) black terminal blocks. Each block can contain up to twenty-four terminals, which are cube-shaped and made of silver metal. These terminals combine for a total of forty-eight terminals, labeled one (1) through forty-eight (48). Most of the area on the right edge of the IS200TBAIH1C is occupied by three (3) medium connector ports. These connector ports are arranged vertically on the right side of the IS200TBAIH1CCC. The long electronic components are arranged vertically in the center of the IS200TBAIH1C. Ten (10) potentiometers or variable resistors are evenly distributed in the center of the IS200TBAIH1C. Four (4) additional potentiometers grouped together are located in the lower right corner of the IS200TBAIH1CCC. At least nine (9) small black transistors are arranged along the right side of the central portion of the IS200TBAIH1C. The center of the IS200TBAIH1CCC is also placed with a series of at least twenty (20) red jumpers. Each jumper is used to join together at least two (2) small metal jumper pins. The middle part of the IS200TBAIH1C is also covered with many small black rectangular diodes.

Application field

The IS200TBAIH1CCC GE analog terminal board is widely used in various industrial areas where analog signals need to be processed, such as manufacturing, energy and automation.
