IS200TREAH2AED是一个端子板，与Mark VI Speedtronic涡轮机控制系统中的涡轮机保护模块（VPRO）相关联。Mark VI可以设置为单工或三重模块化冗余编队，使其能够控制、保护和监控各种尺寸的涡轮机系统。

该IS200TREAH2AED用于为每个涡轮机保护模块提供独立的速度拾取器。然后，该模块会高速处理它们。IS200TREAH2AED板还将线路电压和发电机电压输入扇出到每个涡轮机保护模块以实现同步，并接受轴速信号以提供紧急超速保护。

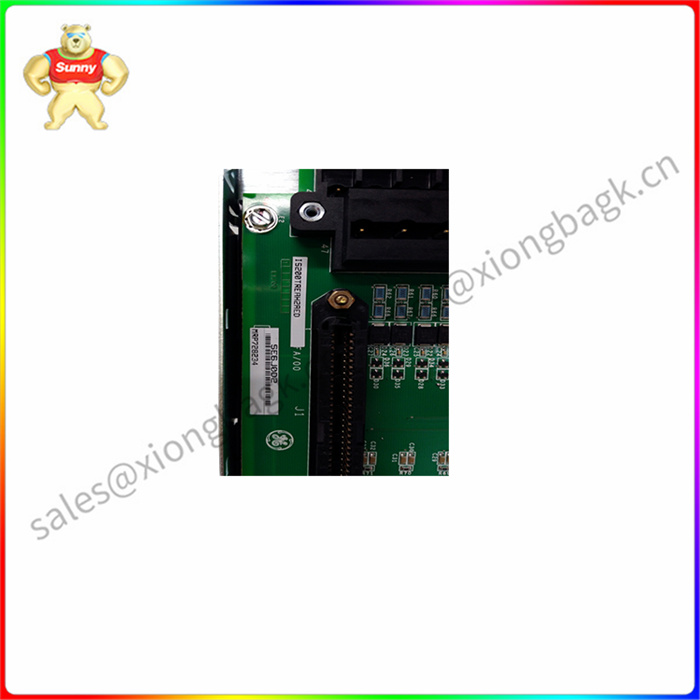

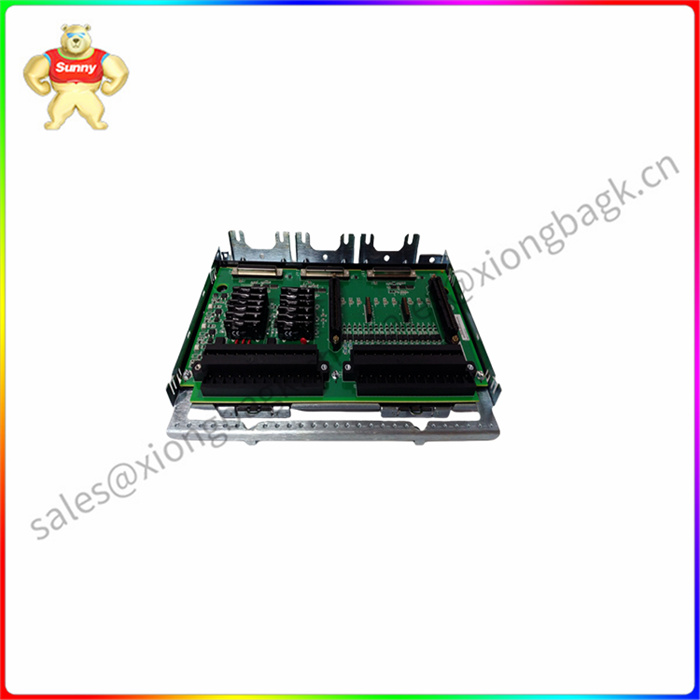

该IS200TREAH2AED由三个大型d-shell连接器和三个较小的d-shell连接器组成。在另一侧，电路板有两个端子排，每个端子带有两条螺钉连接线。在两者之间，该板有两个变压器、两个金属氧化物压敏电阻、跳线开关、集成电路、电阻器、电感器、电容器和二极管。该板沿边缘和角落成型，并且在板体内也有几个切口。它带有多个代码和标记以及条形码。一些工厂制造的孔由感应材料环绕。

IS200TREAH2AED 印刷电路板 涡轮机保护模块
The IS200TREAH2AED is a terminal board associated with the Turbine Protection Module (VPRO) in the Mark VI Speedtronic Turbine control System. The Mark VI can be set up in simplex or triple modular redundant formations, enabling it to control, protect and monitor turbine systems of all sizes.

The IS200TREAH2AED is designed to provide individual speed pickers for each turbine protection module. The module then processes them at high speed. The IS200TREAH2AED board also fanned out the line voltage and generator voltage input to each turbine protection module for synchronization and received shaft speed signals to provide emergency overspeed protection.

The IS200TREAH2AED consists of three large d-shell connectors and three smaller d-shell connectors. On the other side, the board has two terminal blocks, each with two screw connections. In between, the board has two transformers, two metal oxide varistors, jumper switches, integrated circuits, resistors, inductors, capacitors, and diodes. The plate is formed along the edges and corners, and there are also several cuts in the body of the plate. It comes with multiple codes and tags as well as barcodes. Some factory-made holes are surrounded by inductive materials.
