IS200TRLYH1BGF是一种称为终端继电器卡的设备。这是一种由GE或通用电气生产的PCB或印刷电路板。IS200TRLYH1BGF是通用电气Mark VI系列的一个组件。Mark VI 系列只是 Mark 系列汽油和/或蒸汽轮机控制器的几个系列之一。

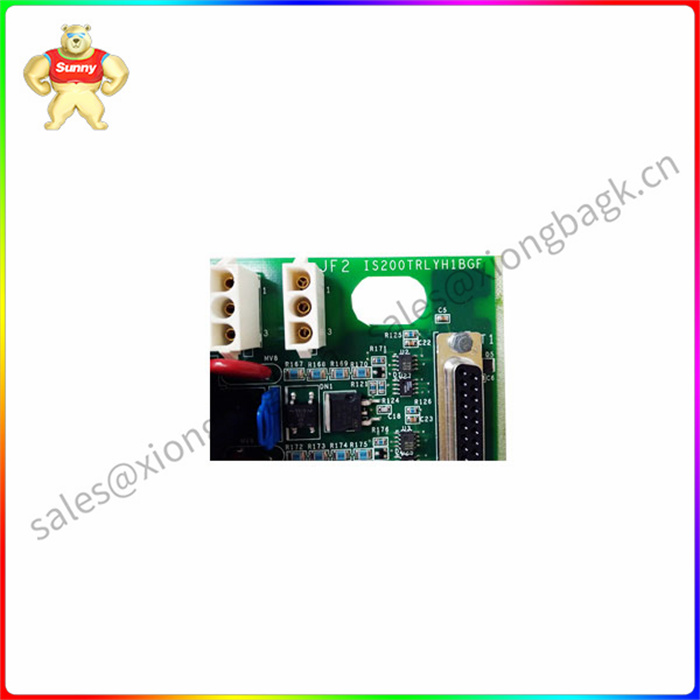

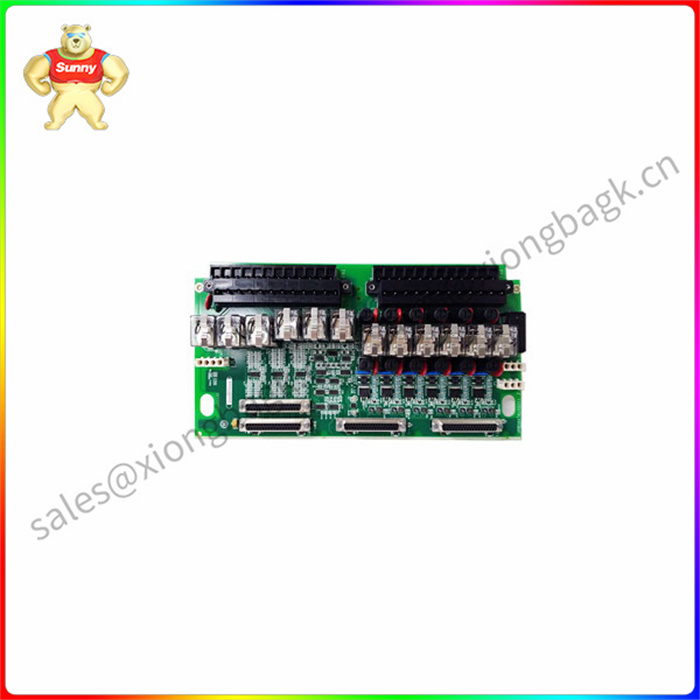

IS200TRLYH1BGF电路板很大，呈矩形，包含许多电子元件。IS200TRLYH1BGF上zui大的组件是两 （2） 个长黑色接线端子。这些设备可以容纳一组称为端子的银色金属组件。每个IS200TRLYH1BGF上的接线端子都有二十四 （24） 个这样的小端子。每个编号从一到四十八不等。IS200TRLYH1BGF的中心被一系列继电器或接触器占据，这些继电器或接触器排列成一条垂直线。继电器为灰色和黑色，盖板由透明塑料制成。六 （6） 个黑色晶体管位于IS200TRLYH1BGF上半部分继电器的两侧。与这些晶体管中的每一个配对的是一个圆形的红色MOV或金属氧化物压敏电阻。一 （1） 个额外的金属氧化物压敏电阻位于IS200TRLYH1BGF的左下角。在整个IS200TRLYH1BGF中都可以找到许多集成电路。六 （6） 个蓝色常亮电容器排列在晶体管和金属氧化物压敏电阻右侧的一条线上。

IS200TRLYH1BGF 是一种称为终端继电器卡的设备
Product description

The IS200TRLYH1BGF is a device called a terminal relay card. This is a PCB or printed circuit board produced by GE or General Electric. The IS200TRLYH1BGF is a component of the General Electric Mark VI series. The Mark VI series is just one of several series of Mark Series gasoline and/or steam turbine controllers.

The IS200TRLYH1BGF board is large, rectangular and contains many electronic components. The largest component on the IS200TRLYH1BGF is two (2) long black terminals. These devices can accommodate a set of silver metal components called terminals. There are twenty-four (24) of these small terminals on each IS200TRLYH1BGF. Each number ranges from one to forty-eight. The center of the IS200TRLYH1BGF is occupied by a series of relays or contactors arranged in a vertical line. The relays are grey and black, and the cover is made of transparent plastic. Six (6) black transistors are located on either side of the relay on the upper half of the IS200TRLYH1BGF. Paired with each of these transistors is a round red MOV or metal oxide varistor. One (1) additional metal oxide varistor is located in the lower left corner of the IS200TRLYH1BGF. Many integrated circuits can be found throughout the IS200TRLYH1BGF. Six (6) blue, steady on capacitors are arranged in a line to the right of the transistor and the metal oxide varistor.
