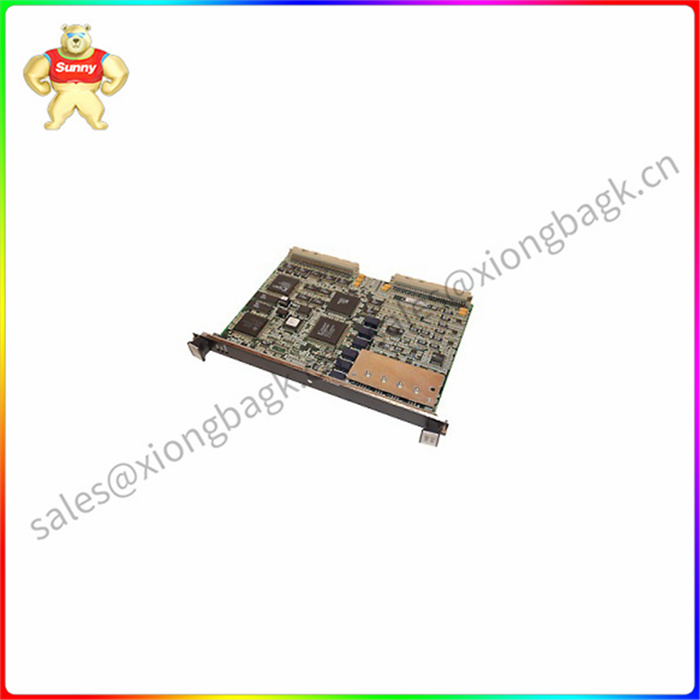

IS200VAICH1C Mark VI Speedtronic系列涡轮机控制系统组件

IS200VAICH1C Mark VI Speedtronic系列涡轮机控制系统组件

产品描述
IS200VAICH1C板组件是GE的Mark VI涡轮机控制系统的一部分。MKVI 是通用电气创建的zui复杂、zui先进的 Speedtronic 系统之一。它可用于为工业涡轮系统（燃气或蒸汽）创建TMR（三重模块化冗余）和单工控制系统。但是，大多数 Mark VI 组件现在都处于旧状态，OEM 不再支持。我们 AX Control 尽zui大努力将这些产品保留在我们现有的准备发货库存中，以便我们可以在您zui需要的时候更快地完成订单。

该IS200VAICH1C与一个端子板配合使用，该端子板可以接受 10 个输入和 2 个输出。该板及其相应的端子板在Mark VI VME处理器机架内工作，与该位置内的其他板进行通信。每块板都是可单独识别的。IS200VAICH1C板由一个单宽前面板构建，该面板包括三个状态 LED 和两个夹子，一旦设备安装在机架系统中，它们就会将设备固定到位。

电路板的后边缘有两个水平连接器。电路板本身由电容器、电阻器、处理器芯片和其他 IC、晶体管和二极管组成。大多数组件都标有原始制造商标志及其参考名称。电路板表面的代码将有助于电路板的定位和接线。

IS200VAICH1C Mark VI Speedtronic系列涡轮机控制系统组件

Product description
The IS200VAICH1C board assembly is part of GE's Mark VI turbine control system. MKVI is one of the most complex and advanced Speedtronic systems created by GE. It can be used to create TMR (Triple modular redundancy) and simplex control systems for industrial turbine systems (gas or steam). However, most Mark VI components are now in their old state and are no longer supported by Oems. We at AX Control do our best to keep these products in our existing ready to ship inventory so that we can fill orders faster when you need them most.

The IS200VAICH1C works with a terminal board that accepts 10 inputs and 2 outputs. The board and its corresponding terminal board operate within the Mark VI VME processor rack and communicate with other boards within that location. Each plate is individually identifiable. The IS200VAICH1C board is built from a single wide front panel that includes three status leds and two clamps that hold the device in place once it is installed in the rack system.

There are two horizontal connectors on the back edge of the board. The circuit board itself consists of capacitors, resistors, processor chips, and other ics, transistors, and diodes. Most components are marked with the original manufacturer's logo and their reference names. The code on the surface of the board will help with the positioning and wiring of the board.

IS200VAICH1C Mark VI Speedtronic系列涡轮机控制系统组件
