产品描述

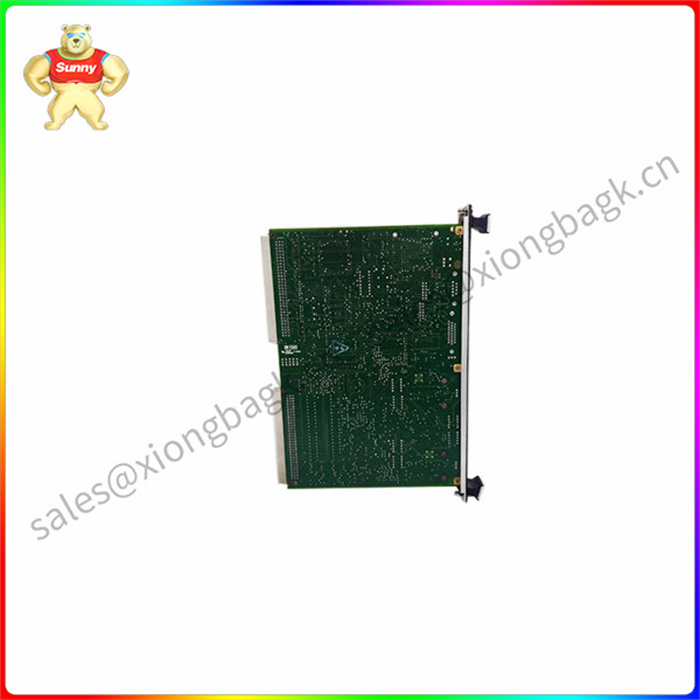

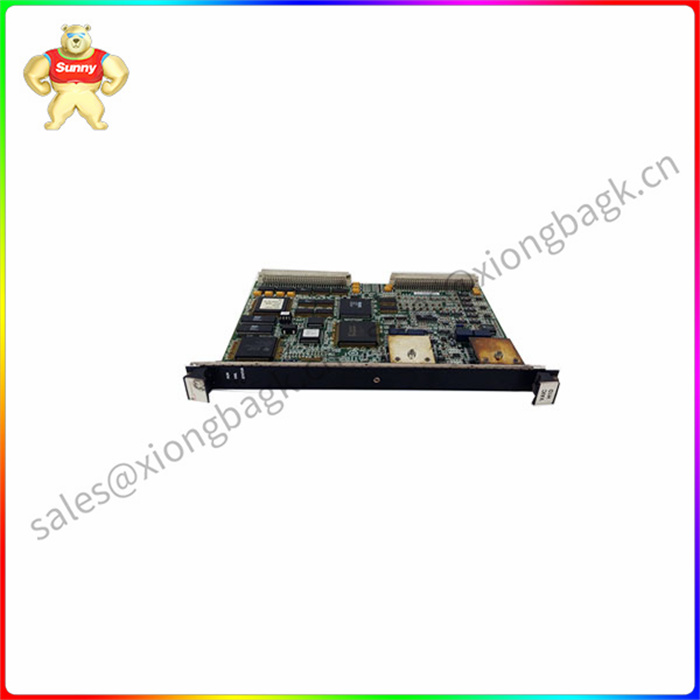

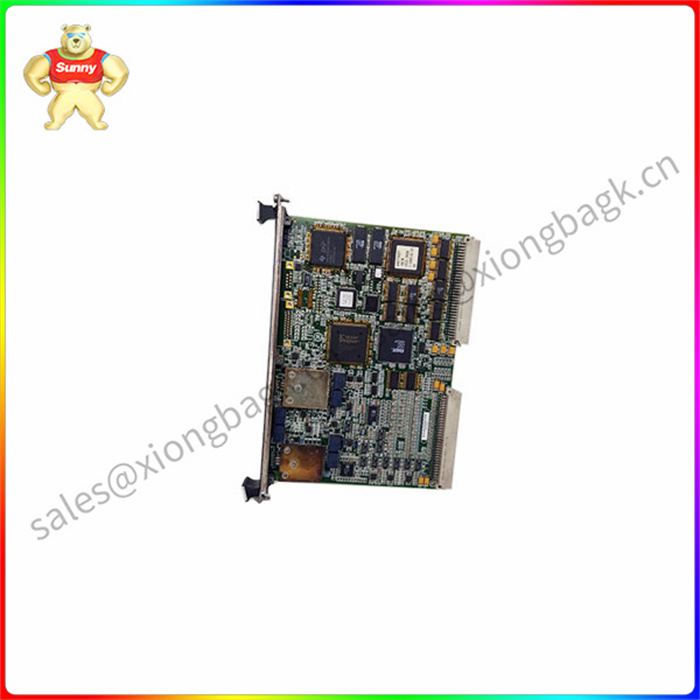

IS200VAICH1DAB型号由通用电气制造，用作模拟输入/输出板，用于 TMR 或单工应用中的 Mark V 系统。当用于 TMR 系统配置时，连接的端子板（TBAIH1C 或 STAI 板）上的输入信号将扇出到三个 VME 机架 T、R 和 S，每个机架都包含一个 VAIC 板。VAIC板上的输出信号将由专有电路驱动，使用所有可用的VAIC板产生所需的电流。如果 VME 机架上的任何IS200VAICH1DAB型号发生故障，则故障的 VAIC 型号将从输出中删除，其余的 VAIC 板可以继续提供正确的电流。当该模型用于单工配置时，连接的端子板将为其中一个 VAIC 型号提供输入，为输出提供所有电流。

在IS200VAICH1DAB型号运行期间，它将控制四个模拟输出，并接受多达二十个模拟输入。该模型具有模拟多路复用器、A/D 转换器、D/A 转换器和信号调理。该模型中有两个模拟输入，±1 mA 或 4-20 mA，由连接的端子板上的跳线选择。模拟输出电路是分开的;两个输出可以配置为0-200 mA或4-20 mA，其他输出仅为4-20 mA。IS200VAICH1DAB型号的输入和输出都包含高抑制电路，可防止高频噪声和浪涌。

IS200VAICH1DAB 数字输出值转换为通过连接的端子板驱动

Product description
The IS200VAICH1DAB model is manufactured by General Electric and is used as an analog input/output board for Mark V systems in TMR or simplex applications. When used in a TMR system configuration, the input signals on the connected terminal boards (TBAIH1C or STAI boards) are fanned out to three VME racks T, R, and S, each containing a VAIC board. The output signal on the VAIC board will be driven by a proprietary circuit, using all available VAIC boards to generate the required current. If any IS200VAICH1DAB model on the VME rack fails, the faulty VAIC model will be removed from the output and the remaining VAIC boards can continue to provide the correct current. When this model is used in a simplex configuration, the connected terminal boards will provide the input to one of the VAIC models, providing all the current to the output.

During the operation of the IS200VAICH1DAB model, it will control four analog outputs and accept up to twenty analog inputs. The model has an analog multiplexer, A/D converter, D/A converter, and signal conditioning. There are two analog inputs in this model, ±1 mA or 4-20 mA, selected by jumpers on the connected terminal board. The analog output circuit is separate; Two outputs can be configured to be 0-200 mA or 4-20 mA, and the other outputs are only 4-20 mA. Both the input and output of the IS200VAICH1DAB model contain high suppression circuits that protect against high-frequency noise and surges.
