产品描述
IS200VCRCH1BBC是通用电气电路板组件。该PCB是Mark VI系统的一部分，这是GE发布的第五个用于燃气轮机和蒸汽轮机管理的Speedtronic系统。Speedtronic 系列始于 1960 年代 MKI 的发布，一直持续到 2000 年代的 MKVI 和 MKVIe。Mark VI包括各种功能，如软件和硬件诊断工具、报警管理工具、以太网通信功能、HMI和控制的时间同步功能，以及完全可编程的软件维护工具。

IS200VCRCH1BBC是分立式I/O板，具有与VCCC板相同的功能。 但是，IS200VCRCH1BBC没有子板，而VCCC有。虽然这样可以使IS200VCRCH1BBC占用更少的机架空间，但继电器输出必须通过 VME 机架上的 J3 和 J4 端口进行布线。如果不希望在前面板上布线，建议的解决方案是使用 VCCC 板而不是 VCRC 板。

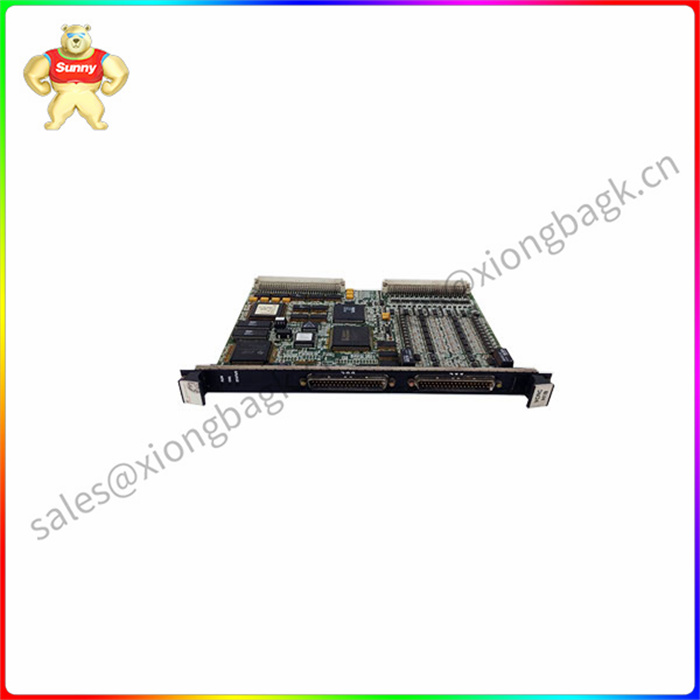

IS200VCRCH1BBC连接到一个单插槽面板上，该面板由三个 LED 指示灯构成。它们标记为 status、fail 和 run，颜色为橙色、红色和绿色。两个电缆连接器（J33 和 J44）也位于面板表面。

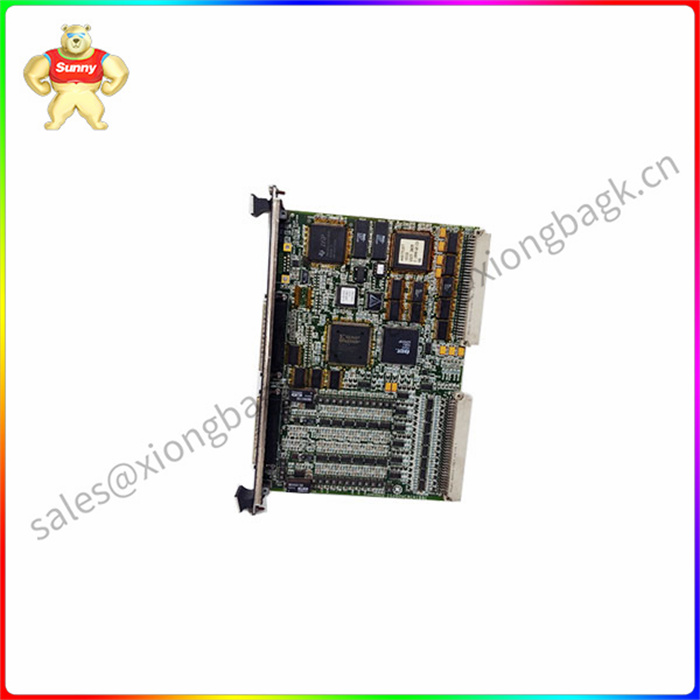

IS200VCRCH1BBC板装有六个连接器，包括两个背板。该板组件密集，带有许多电阻器、二极管、电容器、电感磁珠 （L1-L19） 和 TP 测试点。它的表面有三十多个晶体管以及六十多个集成电路。其中包括FPGA、CMOS静态RAM和双端口SRAM。

IS200VCRCH1BBC 通用电气电路板组件 用于燃气轮机和蒸汽轮机管理

Product description
IS200VCRCH1BBC is a General Electric circuit board assembly. The PCB is part of the Mark VI system, the fifth Speedtronic system released by GE for gas turbine and steam turbine management. The Speedtronic series began with the release of the MKI in the 1960s and continued through the MKVI and MKVIe in the 2000s. Mark VI includes a variety of features such as software and hardware diagnostic tools, alarm management tools, Ethernet communication capabilities, time synchronization for HMI and controls, and fully programmable software maintenance tools.

The IS200VCRCH1BBC is a separate I/O board with the same functionality as the VCCC board. However, IS200VCRCH1BBC does not have a daughter board, while VCCC does. While this allows the IS200VCRCH1BBC to take up less rack space, the relay output must be routed through the J3 and J4 ports on the VME rack. If you do not want to wire the front panel, the recommended solution is to use a VCCC board instead of a VCRC board.

The IS200VCRCH1BBC is connected to a single slot panel consisting of three LED indicators. They are labeled status, fail, and run, and are colored orange, red, and green. Two cable connectors (J33 and J44) are also located on the panel surface.

The IS200VCRCH1BBC board is fitted with six connectors, including two backplanes. The board is packed with numerous resistors, diodes, capacitors, inductive beads (L1-L19) and TP test points. It has more than 30 transistors and more than 60 integrated circuits on its surface. These include FPgas, CMOS static RAM, and dual-port SRAM.
