MPL-B580J-SJ22AA 是一款 Allen-Bradley 伺服电机

MPL-B580J-SJ22AA 是一款 Allen-Bradley 伺服电机

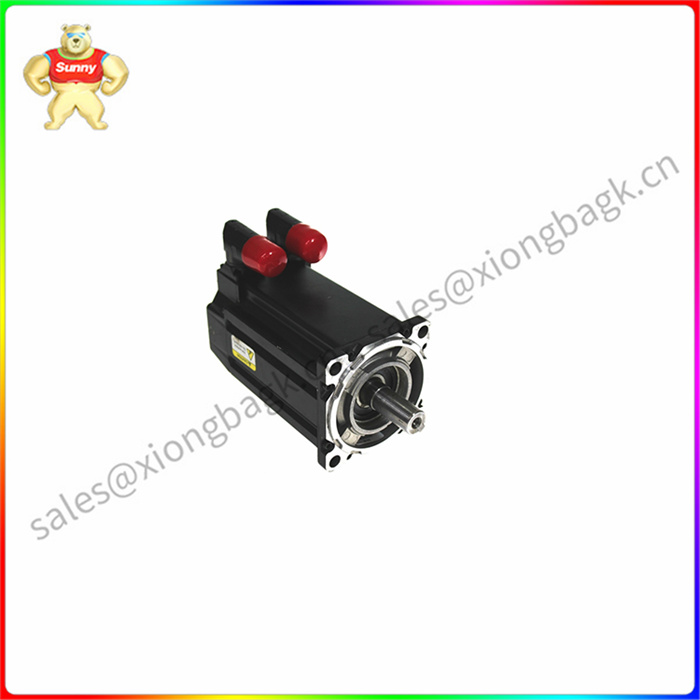

Allen-Bradley MPL-B580J-SJ22AA 是 Allen-Bradley 的 Kinetix 伺服电机。该伺服电机是低惯量输出伺服电机的一部分，专为包装、加工、物料搬运、电子装配、汽车和类似应用而设计，兼容由同一 Kinetix 平台的多个伺服驱动器驱动，例如 Kinetix 5500、Kinetix 5700、Kinetix 6200/6500、Kinetix 6000、Kinetix 300/350、 Kinetix 2000 和 Kinetix 7000。

这款 Kinetix 伺服电机是一款 400V 级无刷交流同步电机，框架尺寸为 165 mm，磁性堆栈尺寸为 203.2 mm 或 8.0 英寸。它以每分钟 3800 转 （rpm） 的zui高速度运行。该伺服电机设计有DIN插座，与SpeedTec DIN电缆连接器直接兼容，提供快速、安全且不易受振动和冲击的影响。该连接器以四分之一圈连接，并以 90 度方向连接，以实现zui大的灵活性并避免弯曲，特别是建议将 MPL-B580J-SJ22AA 伺服电机安装有滴水环，其中，输入电缆连接进入电机下方，以防止工艺液体进入连接点。

MPL-B580J-SJ22AA 采用单圈高分辨率绝 对值编码器。它使用 Hiperface 数字通信方法与父伺服驱动器进行通信。该伺服驱动器未安装轴封。与此伺服方法一起使用的兼容轴封的目录号为 MPL-SSN-F165-32MM。轴封的维修取决于电机的使用情况。建议在 3 个月内进行一次维修，zui低频率为 12 个月一次。

Allen-Bradley MPL-B580J-SJ22AA 交流伺服电机是一款无刷无噪音交流同步伺服电机，具有绝 对类型的反馈装置，旨在满足闭环高性能控制系统的苛刻需求。与同类普通伺服电机不同，Allen-Bradley MPL-B580J-SJ22AA 伺服电机采用创新的绕组技术，与普通伺服电机相比，每个尺寸的扭矩zui高可达 40%，并且具有令人印象深刻的热管理系统以提高性能。MPL-B580J-SJ22AA 伺服电机具有 400 伏交流电压额定值，电机额定功率为 7.9 千瓦，zui大电机转速为 3800 rpm。在此速度下，该伺服电机可以在一英寸上保持 301 磅的连续失速扭矩值，并且在 770 安培时在一英寸上具有 115 磅的峰值失速扭矩额定值。

MPL-B580J-SJ22AA伺服电机具有单圈编码器，可在短距离内提供高分辨率位置反馈，并且还具有用于反馈和电源的圆形卡口式开关连接器。它具有保留电机标识的板载存储器，以及在启动时自动将电机标识中继到系统的通信链路。MPL-B580J-SJ22AA 伺服电机采用铝制外壳，带有碳钢键轴和 IP 50 防护等级。它的磁性堆叠长度为 5 英寸，框架直径为 165 毫米。MPL-B580J-SJ22AA伺服电机具有出厂指定的0至40摄氏度工作温度范围，可在-30至70摄氏度的温度范围内存放。MPL-B580J-SJ22AA 伺服电机重约 25.4 千克（56 磅），已通过 UL、CSA 和 CE 认证。

MPL-B580J-SJ22AA 是一款 Allen-Bradley 伺服电机

Allen-Bradley MPL-B580J-SJ22AA is Allen-Bradley's Kinetix servo motor. The servo motor is part of a family of low-inertia output servo motors designed for packaging, processing, material handling, electronic assembly, automotive and similar applications, compatible with multiple servo drives on the same Kinetix platform. Examples include Kinetix 5500, Kinetix 5700, Kinetix 6200/6500, Kinetix 6000, Kinetix 300/350, Kinetix 2000 and Kinetix 7000.

The Kinetix servo motor is a 400V-class brushless AC synchronous motor with a frame size of 165 mm and a magnetic stack size of 203.2 mm or 8.0 inches. It operates at a top speed of 3,800 revolutions per minute (rpm). The servo motor is designed with DIN sockets and is directly compatible with SpeedTec DIN cable connectors, providing speed, safety and resistance to vibration and shock. The connector is connected in a quarter turn and connected in a 90 degree direction to achieve maximum flexibility and avoid bending, in particular it is recommended that the MPL-B580J-SJ22AA servo motor be fitted with a drip ring where the input cable is connected below the motor to prevent process liquids from entering the connection point.

The MPL-B580J-SJ22AA uses a single-turn high-resolution absolute encoder. It uses the Hiperface digital communication method to communicate with the parent servo drive. The servo drive has no shaft seal installed. The catalog number of the compatible shaft seal used with this servo method is MPL-SSN-F165-32MM. The maintenance of the shaft seal depends on the use of the motor. It is recommended to perform maintenance once every 3 months, with a minimum frequency of once every 12 months.

Allen-Bradley MPL-B580J-SJ22AA AC servo motor is a brushless and noiseless AC synchronous servo motor with an absolute type of feedback device designed to meet the demanding demands of closed-loop high-performance control systems. Unlike similar ordinary servo motors, the Allen-Bradley MPL-B580J-SJ22AA servo motor uses innovative winding technology, delivers up to 40% torque per size compared to ordinary servo motors, and has an impressive thermal management system to improve performance. The MPL-B580J-SJ22AA servo motor has a 400-volt AC voltage rating, a motor power rating of 7.9 kW, and a maximum motor speed of 3800 rpm. At this speed, the servo motor can maintain a continuous stall torque value of 301 pounds on an inch and has a peak stall torque rating of 115 pounds on an inch at 770 amps.

The MPL-B580J-SJ22AA servo motor features a single-turn encoder that provides high-resolution position feedback over short distances, and also has a circular bayonet-type switching connector for feedback and power. It has an on-board memory that retains the motor identification and a communication link that automatically relays the motor identification to the system at startup. The MPL-B580J-SJ22AA servo motor has an aluminum housing with carbon steel key shaft and IP 50 protection rating. It has a magnetic stack length of 5 inches and a frame diameter of 165 mm. The MPL-B580J-SJ22AA servo motor has a factory specified operating temperature range of 0 to 40 degrees Celsius and can be stored in a temperature range of -30 to 70 degrees Celsius. The MPL-B580J-SJ22AA servo motor weighs approximately 25.4 kg (56 lb) and is UL, CSA and CE certified.
