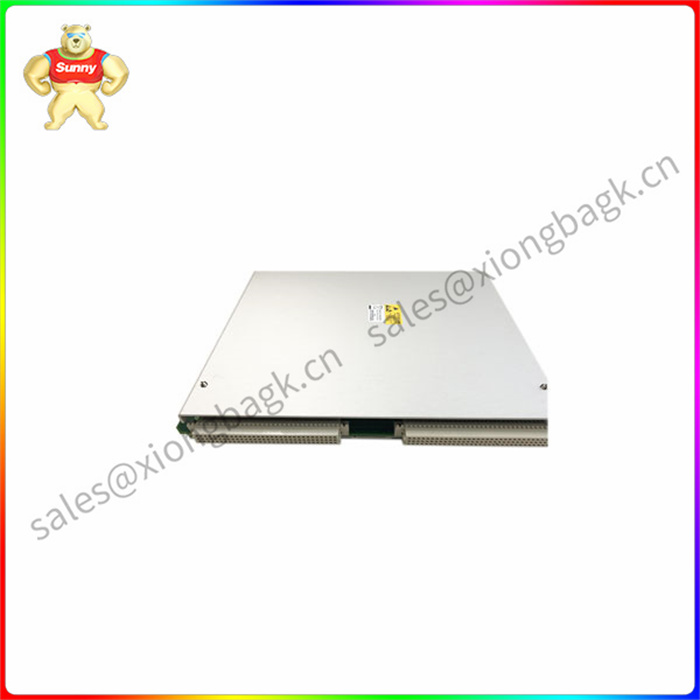

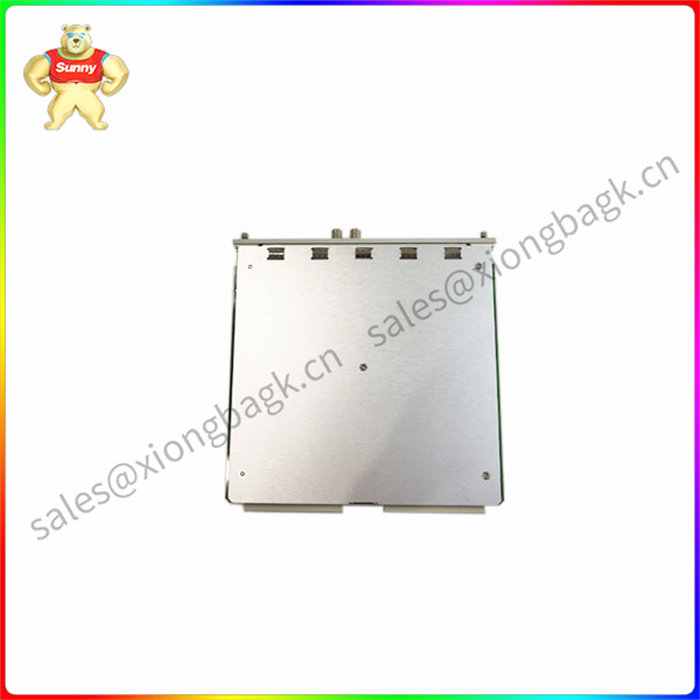

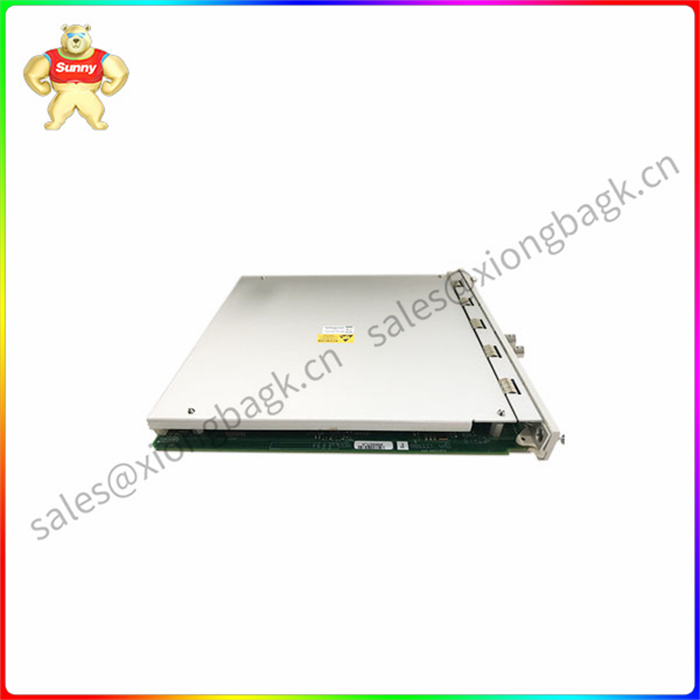

3500/50 133388-02 冗余电源模块 提供各种振动和位置测量进行调节

3500/50 133388-02 冗余电源模块 提供各种振动和位置测量进行调节

特征

接受两个传感器信号

输入信号范围 +10.0 V 至 -24.0 V

输入阻抗：20 k Ω（标准）

40 k Ω (TMR)

7.15 k Ω（内部势垒）

功耗：5.8 瓦，典型值

前面板 LED：OK、TX/RX、Bypass

输出阻抗 550 Ω

Bently 3500/50M 转速计模块是一个 2 通道模块，它接受来自接近探头或磁性传感器的输入以确定轴转速、转子加速度或转子方向。该模块将这些测量值与用户可编程的警报设置点进行比较，并在违反设置点时生成警报。

3500/50M 转速计模块使用 3500 机架配置软件进行编程。以下配置选项可用：

速度监控、设定点警报和速度带警报

l 速度监控、设定点报警和零速通知

l 速度监控、设定点报警和转子加速度报警

l 速度监控、设定点报警和反向旋转通知

3500/50 133388-02 冗余电源模块 提供各种振动和位置测量进行调节
trait

Receive two sensor signals

Input signal range + 10.0V to -24.0V

Input impedance: 20 kΩ (standard)

40 kΩ (TMR)

7.15 kΩ (Internal barrier)

Power consumption: 5.8W, typical

Front panel LED: OK, TX/RX, Bypass

Output impedance 550Ω

The Bently 3500/50M tachometer module is a 2-channel module that accepts input from proximity probes or magnetic sensors to determine shaft speed, rotor acceleration, or rotor direction. The module compares these measurements to a user-programmable alarm setting point and generates an alert when the setting point is violated.

The 3500/50m tachometer module is programmed using 3500 rack configuration software. The following configuration options are available:

Speed monitoring, set point alerts, and speed band alerts

Speed monitoring, set point alarm and zero speed notification

l Speed monitoring, set point alarm and rotor acceleration alarm

l Speed monitoring, set point alarm and reverse rotation notification
