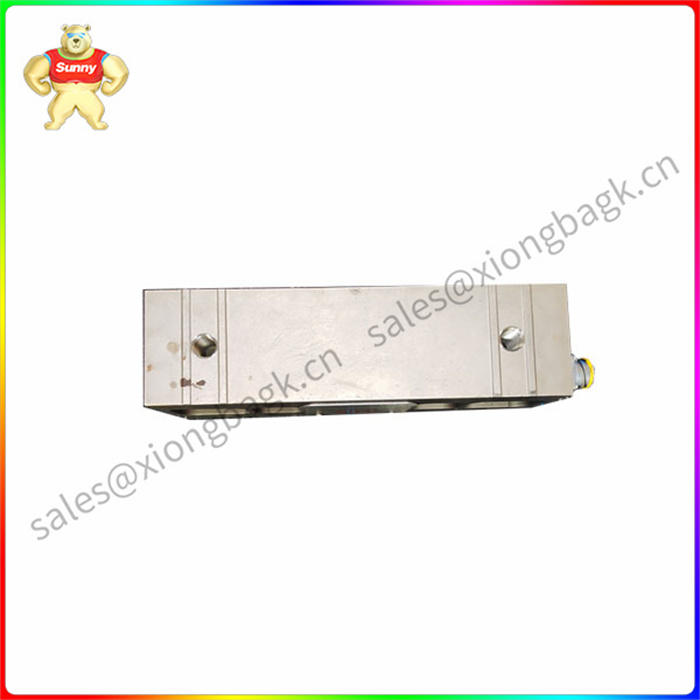

PFTL101B-5.0kN ABB 将质量信号转变为可测量的电信号输出的装置

PFTL101B-5.0kN ABB 将质量信号转变为可测量的电信号输出的装置

称重传感器实际上是一种将质量信号转变为可测量的电信号输出的装置。用传感器应先要考虑传感器所处的实际工作环境，这点对正确选用称重传感器至关重要，它关系到传感器能否正常工作以及它的安全和使用寿命，乃至整个衡器的可靠性和安全性。在称重传感器主要技术指标的基本概念和评价方法上，新旧国标有质的差异。主要有S型、悬臂型、轮辐式、板环式、膜盒式、桥式、柱筒式等几种样式。

电子力测量系统对几乎所有工业，商业和贸易都至关重要。由于称重传感器是力测量系统的关键组件，因此它们必须准确且始终正常运行。
称重传感器如何测好坏,称重传感器好坏的判断方法,称重传感器的价格
1.测量法 不加电的情况下,分别进行测量: 测量1、4端的电阻380Ω±5Ω; 测量2、3端的电阻为350Ω±3Ω; 测量1、2端,测量1、3端电阻应该相等,大约300Ω±3Ω; 测量4、2端,测量4、3端电阻应该相等,大约…

2.输出信号判断法 有时传感器损坏,但阻抗没有很大变化,如果采用阻抗法无法检测出传感器的好坏,可以采用此法作进一步地检测。 检测方法: 给仪表送电后,逐个将传感器的输出线拆掉,注意在在拆线过程中必须特别小心操作以防触电

PFTL101B-5.0kN ABB 将质量信号转变为可测量的电信号输出的装置
A load cell is actually a device that converts a mass signal into a measurable electrical output. The use of sensors should first consider the actual working environment of the sensor, which is crucial to the correct selection of weighing sensors, which is related to whether the sensor can work normally and its safety and service life, and even the reliability and safety of the entire weighing device. There are qualitative differences between old and new countries in the basic concepts and evaluation methods of the main technical indicators of weighing sensors. There are mainly S-type, cantilever type, spoke type, plate ring type, diaphragm type, bridge type, cylinder-cylinder type and so on.

Electronic force measurement systems are essential to almost all industries, commerce and trade. Since load cells are a key component of a force measurement system, they must be accurate and always operate properly.
How to measure the quality of the weighing sensor, the judgment method of the weighing sensor, the price of the weighing sensor
1. When the measurement method is not powered up, the measurement is carried out respectively: the resistance of 1 and 4 ends is 380Ω±5Ω; The resistance of the second and third terminals is 350Ω±3Ω; Measuring 1, 2 ends, measuring 1, 3 end resistance should be equal, about 300Ω± 3ω; Measuring ends 4 and 2, the resistance of measuring ends 4 and 3 should be equal, about...

(2) The output signal judgment method sometimes the sensor is damaged, but the impedance does not change much, if the impedance method can not detect the quality of the sensor, you can use this method for further detection. Detection method: After powering the instrument, remove the output lines of the sensor one by one. Note that special care must be taken to prevent electric shock during the disassembly process

PFTL101B-5.0kN ABB 将质量信号转变为可测量的电信号输出的装置
