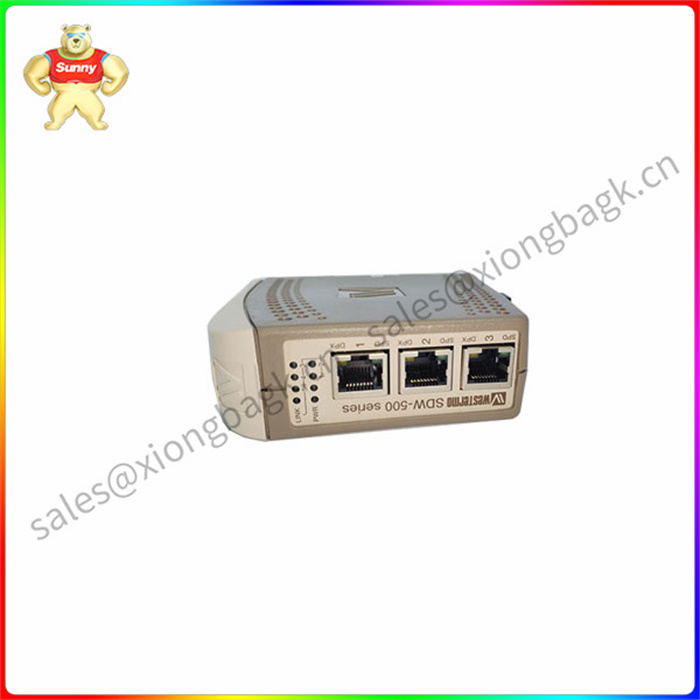

SDW-550EC 工业5端口以太网交换机

SDW-550EC 工业5端口以太网交换机

SDW-550EC工业5端口以太网交换机是一种专为重载工业应用设计的非管理型交换机。它支持802.1Q长数据包，能够使用所有标准工业以太网协议。

该交换机配备10到57 VDC运行的双电源输入，确保了设备在各种环境下的稳定运行。每个端口间的总电绝缘通过每个机箱屏蔽间的独 有隔离得到加强，这有助于避免接地环路电流。

此外，SDW-550EC的额定防护等级为IP21，这意味着它可以安装在出现冷凝水的位置。其工业级部件的使用，使得该交换机的平均故障间隔时间达到50万小时，从而确保了其长使用寿命。

该交换机的工作温度范围宽，为-25到+70°C(-13到+158°F)，使其能够适应各种环境。经过威斯特摩和外部测试机构的检测，该交换机满足大多数EMC、隔离、振动和冲击标准，适用于重工业环境和铁路轨旁应用。

此外，SDW-550EC还支持在一个端口上的端口镜像功能，可以使用网络分析器监控通过交换机的数据流，从而简化了网络诊断。

SDW-550EC 工业5端口以太网交换机

The SDW-550EC Industrial 5-port Ethernet switch is an unmanaged switch designed for heavy-duty industrial applications. It supports 802.1Q long packets and is capable of using all standard industrial Ethernet protocols.

The switch is equipped with dual power inputs running from 10 to 57 VDC, ensuring stable operation in a variety of environments. The total electrical insulation between each port is enhanced by unique isolation between each chassis shield, which helps to avoid ground loop current.

In addition, the SDW-550EC has an IP21 protection rating, which means that it can be installed in locations where condensation occurs. The use of its industrial-grade components makes the average time between failures of the switch 500,000 hours, thus ensuring its long service life.

The switch's wide operating temperature range of -25 to +70°C(-13 to +158°F) allows it to adapt to a variety of environments. The switch meets most EMC, isolation, vibration and shock standards and is tested by Westmore and external testing organizations for use in heavy industrial environments and railside applications.

In addition, the SDW-550EC also supports port mirroring on one port, which can be used to monitor data flow through the switch using a network analyzer, thus simplifying network diagnostics.
